Initiating "Read Measuring Value Block"

Indicated on display

Fig 1: VAG 1551 Scan Tool Display - Read Measuring Value Block, Instrument Cluster With Maintenance Interval Extension (1 Of 3)

Press buttons -0- and -8-. This selects "Read measuring value block," function 08.
Press -Q- button to confirm input.

Indicated on display

Fig 2: VAG 1551 Scan Tool Display - Read Measuring Value Block, Instrument Cluster With Maintenance Interval Extension (2 Of 3)

Indicated on display

Fig 3: VAG 1551 Scan Tool Display - Read Measuring Value Block, Instrument Cluster With Maintenance Interval Extension (3 Of 3)

Enter display group number from table in INITIATING "READ MEASURING VALUE BLOCK" and press -Q- button to confirm input.

The selected measuring value block is now displayed in standard form.

Display group overview:

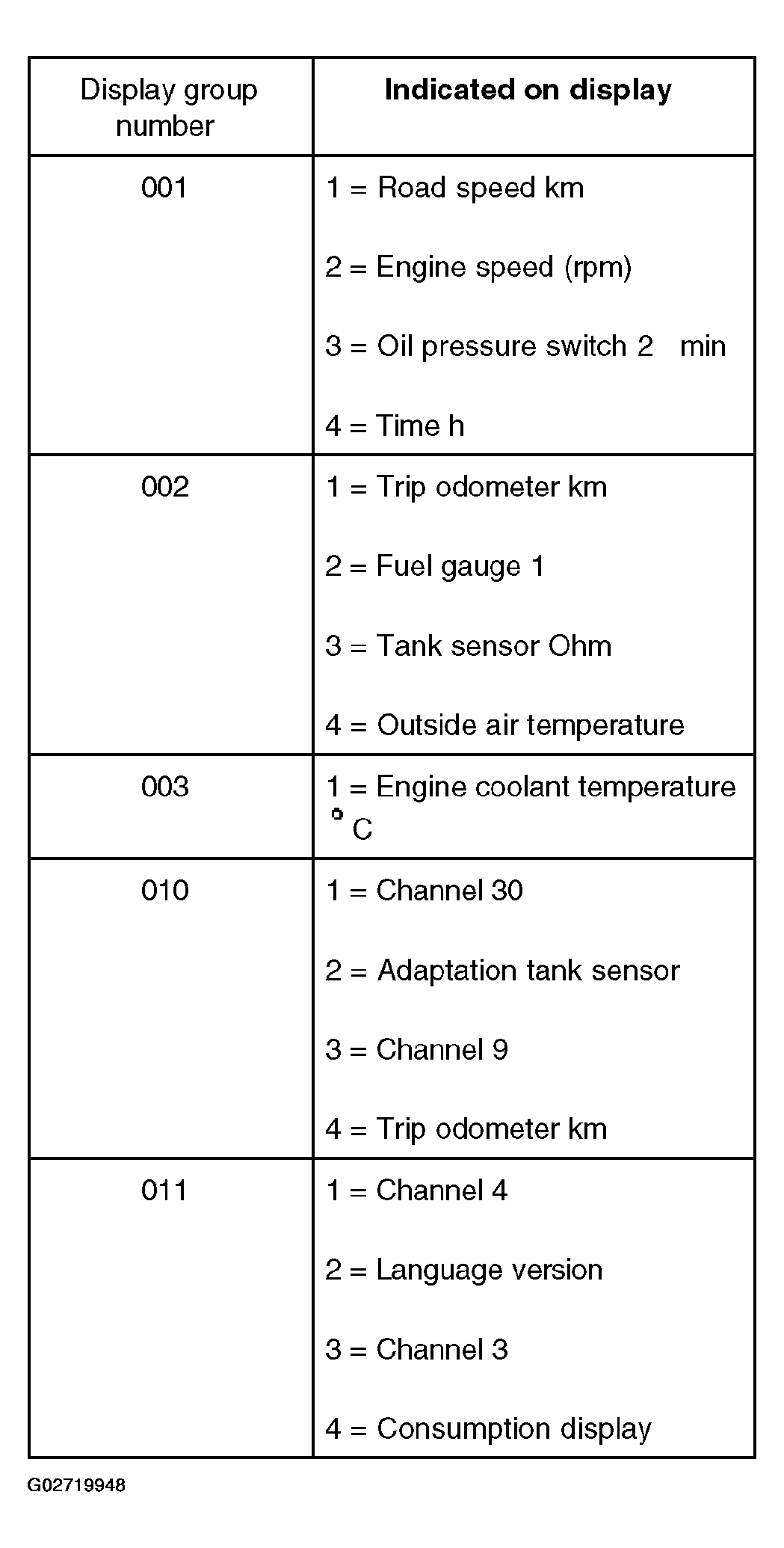

Fig 4: Read Measuring Value Display Groups 001 To 011 - Instrument Cluster With Maintenance Interval Extension

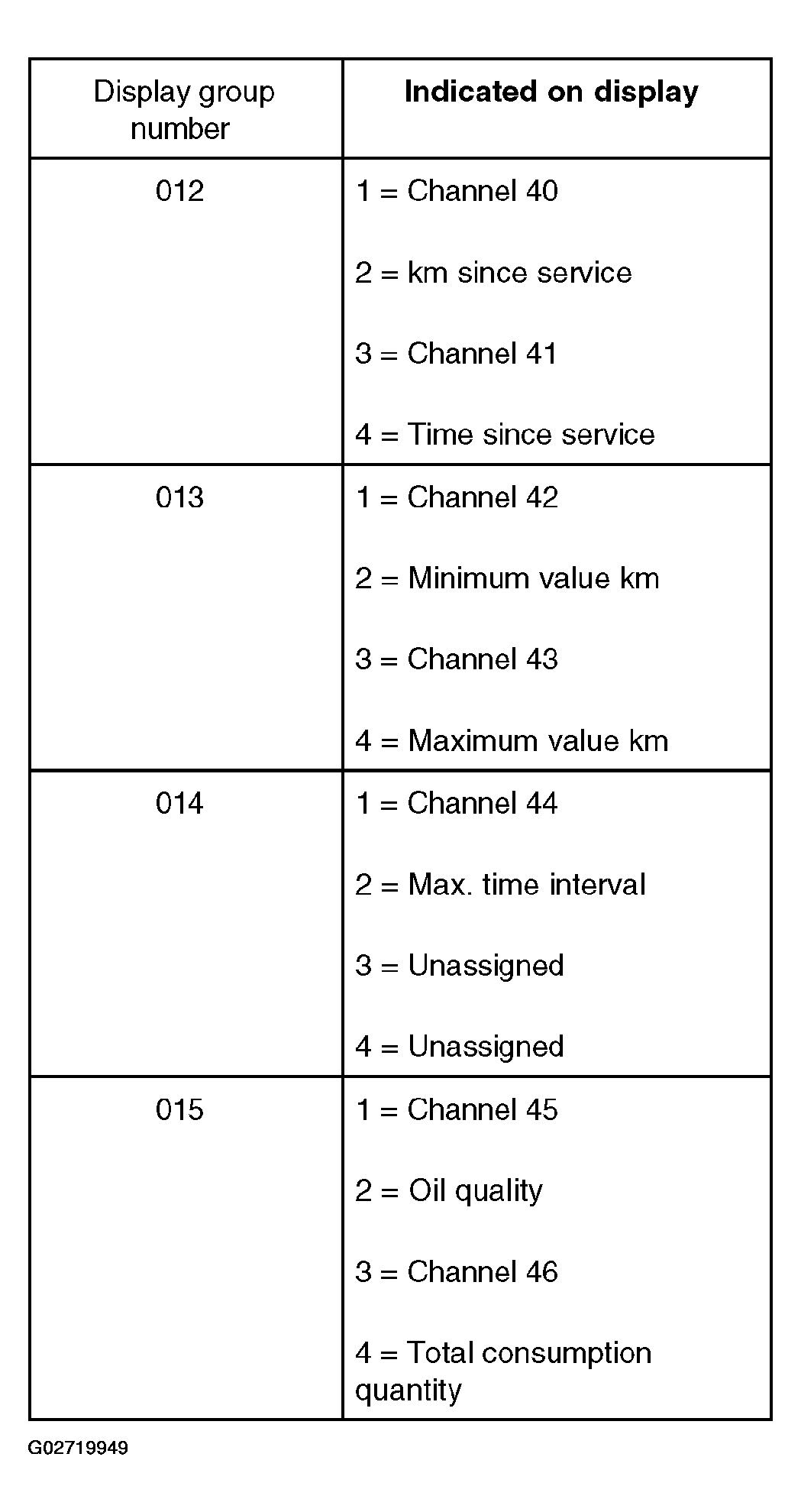

Fig 5: Read Measuring Value Display Groups 012 To 015 - Instrument Cluster With Maintenance Interval Extension

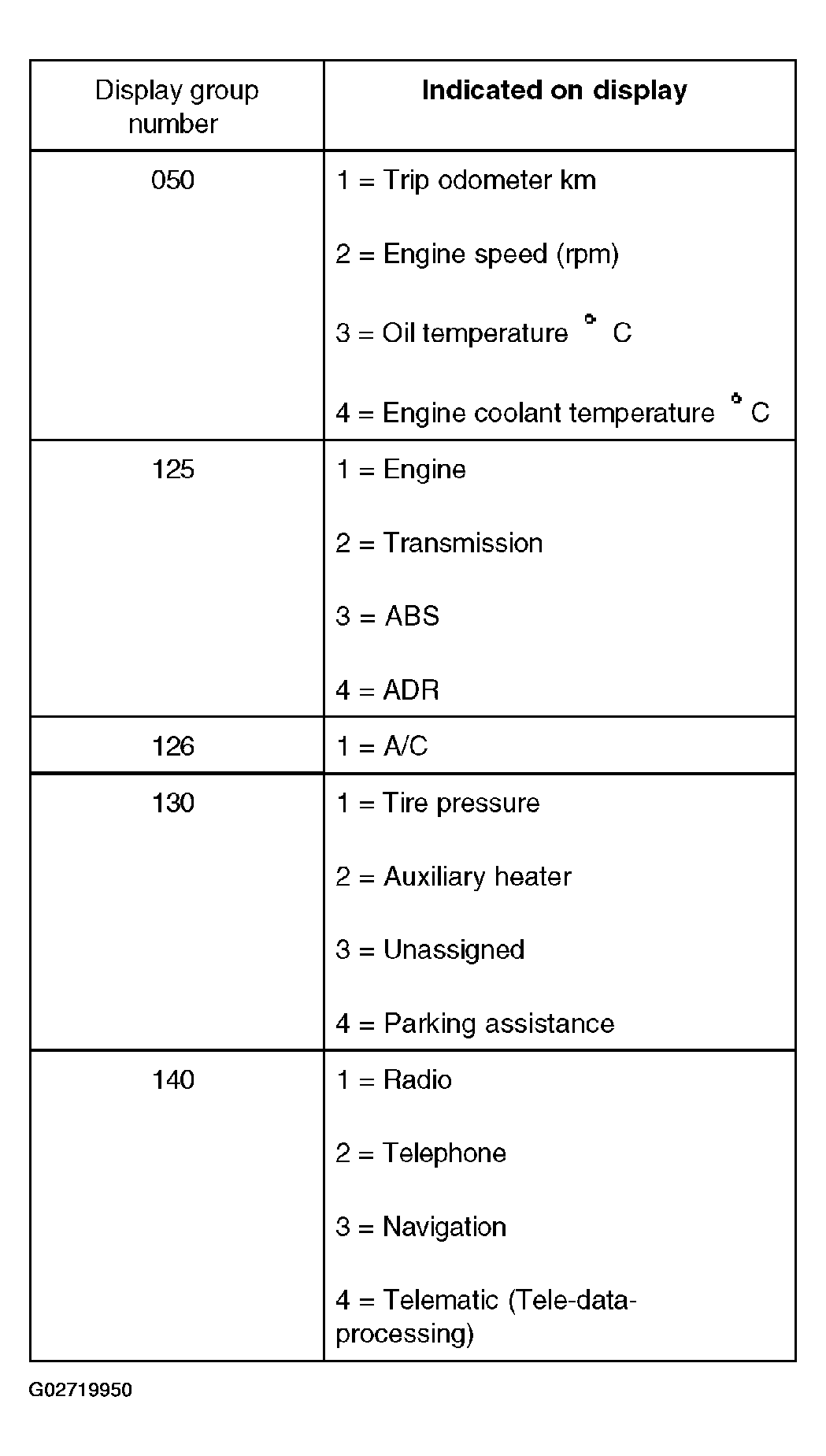

Fig 6: Read Measuring Value Display Groups 050 To 140 - Instrument Cluster With Maintenance Interval Extension

NOTE:

For an instrument cluster replacement, data from display groups 10... 15 must be printed out.
Measuring value blocks 125 and 126 indicate the components that are part of the powertrain data bus.
Measuring value block 130 indicates the components that are part of the comfort system data-BUS.
Measuring value block 140 indicates the components that are part of the information data-BUS
Display will always indicate the actual values obtained from the sensors. The values which appear on the instrument cluster are filtered and may be different.
If the actual engine coolant temperature is between 80° C and 700° C, instrument cluster will always show 90° C.
