Erase DTC Memory: Requirements
- DTC memory checked. See CHECK DTC MEMORY (SCAN TOOL FUNCTION 02) .
- All malfunctions repaired.
After successful DTC memory check:
Indicated on display

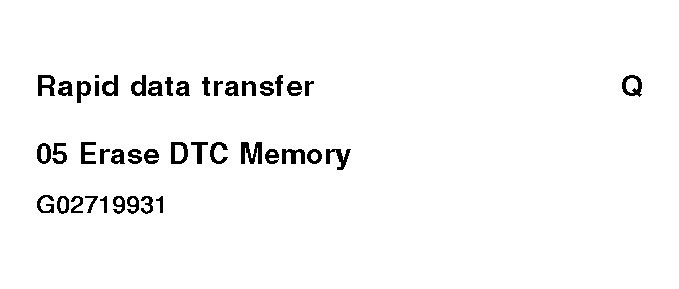

Fig 1: VAG 1551 Scan Tool Display - Erase DTC Memory, Instrument Cluster With Maintenance Interval Extension (1 Of 6)
- Press buttons -0- and -5-. This selects "Erase DTC memory," function 05.
Indicated on display

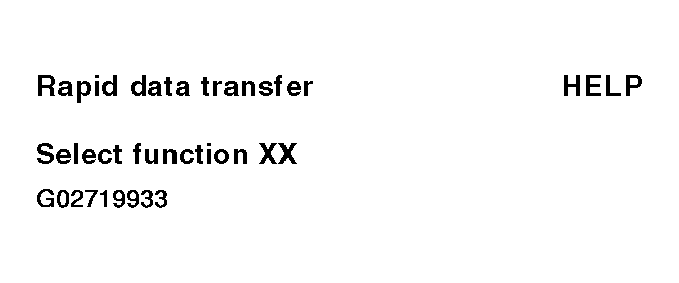

Fig 2: VAG 1551 Scan Tool Display - Erase DTC Memory, Instrument Cluster With Maintenance Interval Extension (2 Of 6)
- Press -Q- button to confirm input.
Indicated on display

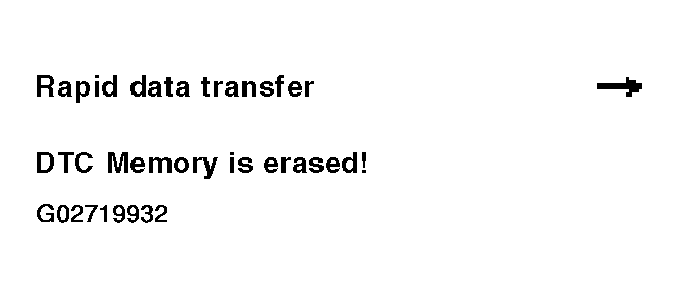

Fig 3: VAG 1551 Scan Tool Display - Erase DTC Memory, Instrument Cluster With Maintenance Interval Extension (3 Of 6)
DTC memory is erased.
- Press --> -button.
Indicated on display

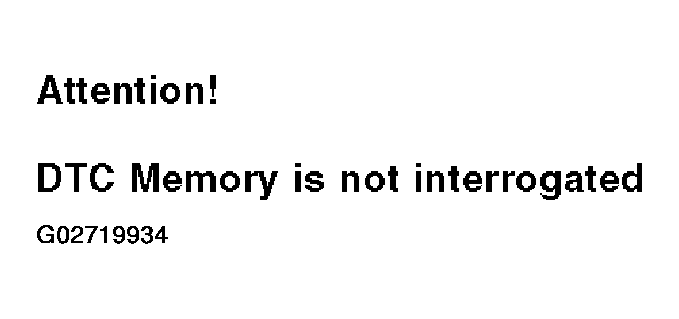

Fig 4: VAG 1551 Scan Tool Display - Erase DTC Memory, Instrument Cluster With Maintenance Interval Extension (4 Of 6)

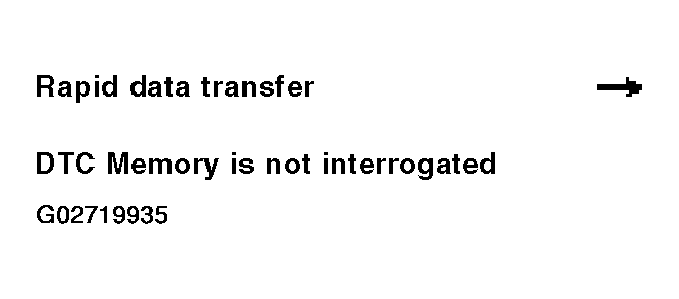

Fig 5: VAG 1551 Scan Tool Display - Erase DTC Memory, Instrument Cluster With Maintenance Interval Extension (5 Of 6)
Fig 6: VAG 1551 Scan Tool Display - Erase DTC Memory, Instrument Cluster With Maintenance Interval Extension (6 Of 6)
Follow test sequence exactly: first check DTC memory, repair malfunction(s) if necessary, then erase.
