Coding table:

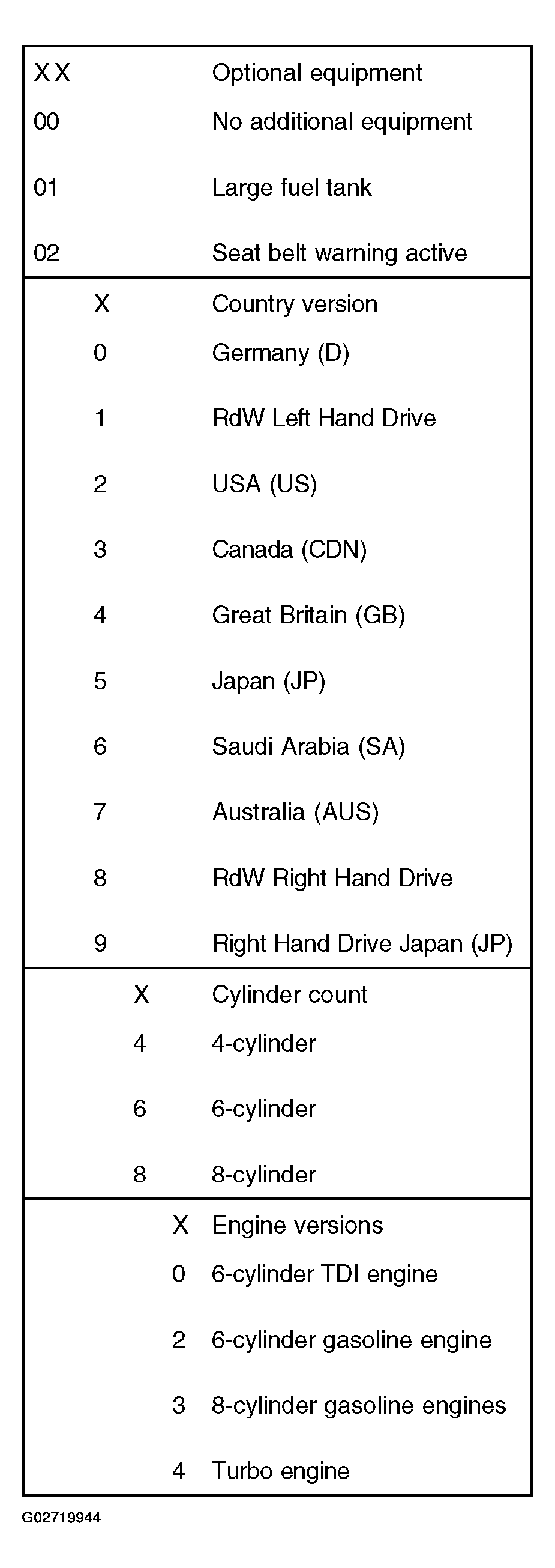

Fig 1: Coding Table - Instrument Cluster With Maintenance Interval Extension
G02719944
NOTE:
  • Coding can be modified to allow for various combinations of optional equipment, depending on what is installed in the vehicle.
  • If vehicle is equipped with more than one item of optional equipment and/or transmission variant that needs to be coded, the overall coding will be the total of the individual coding numbers.

Example:
