Adaptation of total consumption quantity
Indicated on display

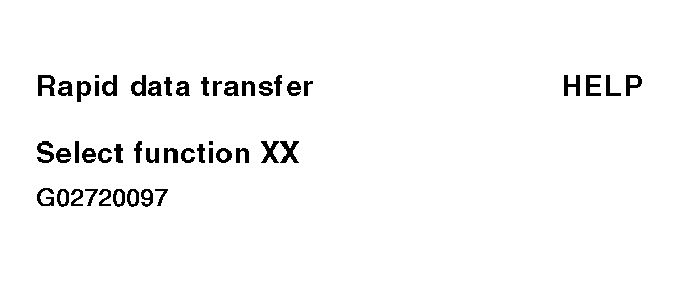

Fig 1: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (1 Of 9)
- Press -1- and -0- and confirm by pressing the -Q- button.
Indicated on display

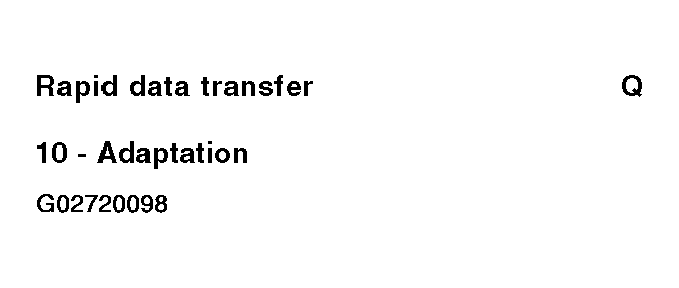

Fig 2: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (2 Of 9)
- Press -Q- button to confirm input.
Indicated on display

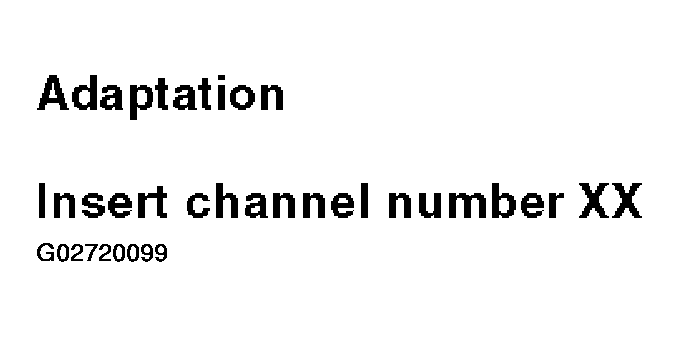

Fig 3: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (3 Of 9)
- Press buttons -4- and -6-.
- Press -Q- button to confirm input.
NOTE:
- Displayed value must be transferred when replacing instrument cluster.
- The value indicated in liters does not represent actual consumption, but rather a value for the Service Reminder Indicator (SRI) calculated from various engine data.
Indicated on display

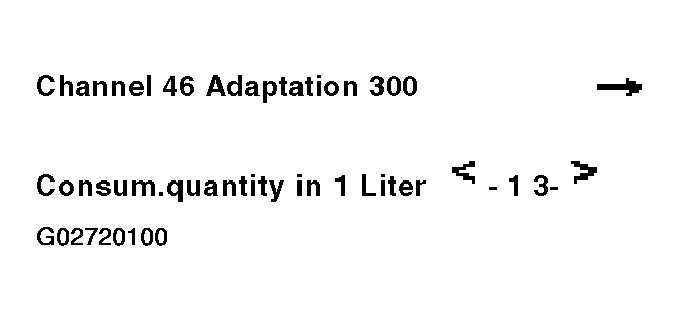

Fig 4: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (4 Of 9)
- Press --> button.
Indicated on display

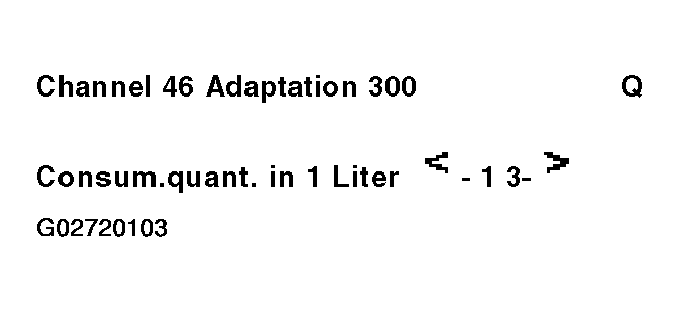

Fig 5: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (5 Of 9)
- Input the indicated value of the old instrument cluster into the new instrument cluster using the scan tool keypad, filling initial positions with "0".
Desired input value: 300 liters
Keypad input: 00300
Indicated on display

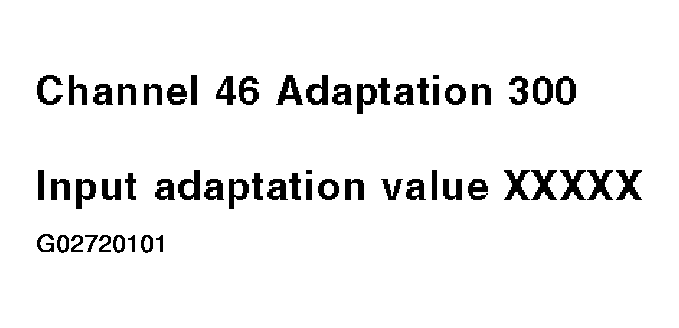

Fig 6: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (6 Of 9)
- Press -Q- button to confirm input.
Indicated on display

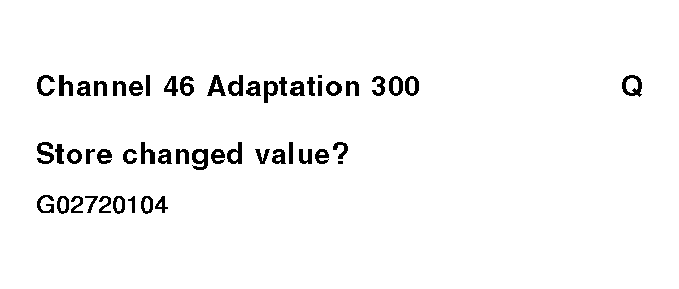

Fig 7: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (7 Of 9)
- Press -Q- button to confirm input.
Indicated on display

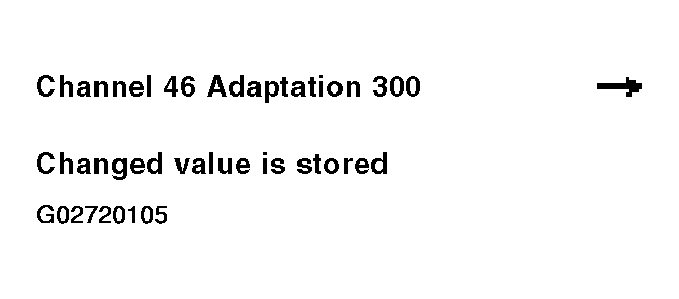

Fig 8: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (8 Of 9)
- Press -Q- button to confirm input.
Indicated on display
Fig 9: VAG 1551 Scan Tool Display - Adaptation Of Total Consumption Quantity, Instrument Cluster With Maintenance Interval Extension (9 Of 9)
- Conclude adaptation of total consumption quantity by pressing the --> button.
