Adaptation of the engine speed threshold
This function is used to adapt the offset value for the engine speed threshold to the dynamic oil pressure warning.
Indicated on display

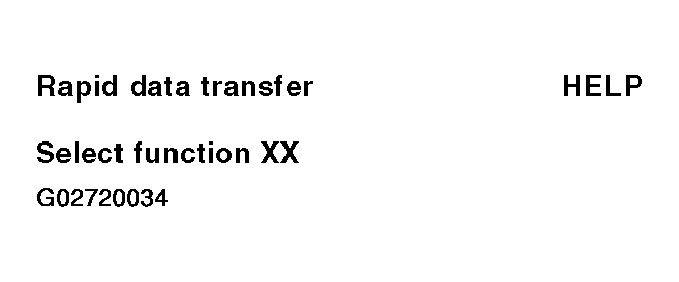

Fig 1: VAG 1551 Scan Tool Display - Adaptation Of Engine Speed Threshold, Instrument Cluster With Maintenance Interval Extension (1 Of 9)
- Press -1- and -0- and confirm by pressing the -Q- button.
Indicated on display

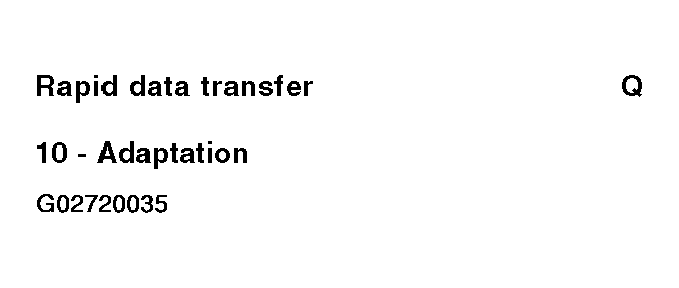

Fig 2: VAG 1551 Scan Tool Display - Adaptation Of Engine Speed Threshold, Instrument Cluster With Maintenance Interval Extension (2 Of 9)
- Press -Q- button to confirm input.
Indicated on display

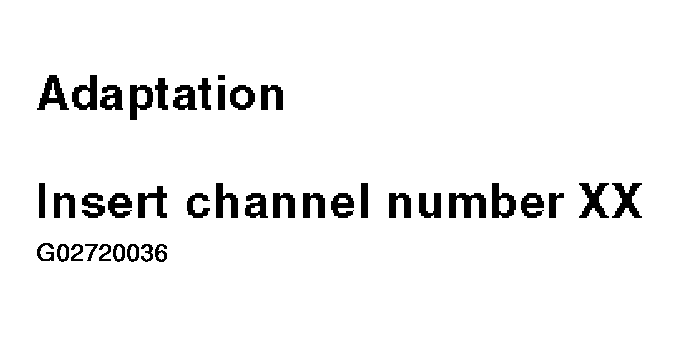

Fig 3: VAG 1551 Scan Tool Display - Adaptation Of Engine Speed Threshold, Instrument Cluster With Maintenance Interval Extension (3 Of 9)
- Press buttons -3- and -5-.
- Press -Q- button to confirm input.

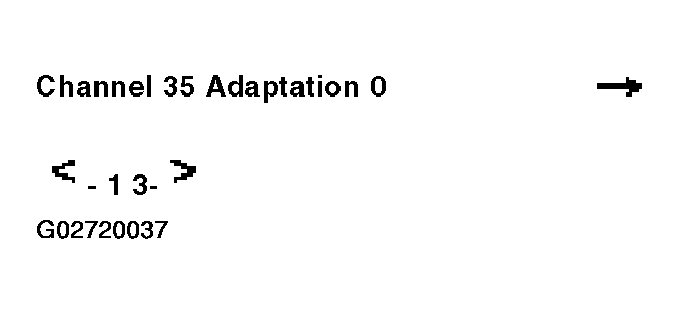

- Indicated on display: Adaptation value is displayed, for example 0.
NOTE:
- The adaptation value of 0 corresponds to the value set at the factory for the oil pressure warning if the oil pressure drops below 1.2 bar at 1500 rpm.
- The adaptation can be performed in four steps (0-1000).
- The adaptation value of "250" changes the engine speed threshold to 1750 rpm.
- If the value "0" was changed due to a customer complaint, the changed value must be transferred when replacing instrument cluster.
- Press --> button.

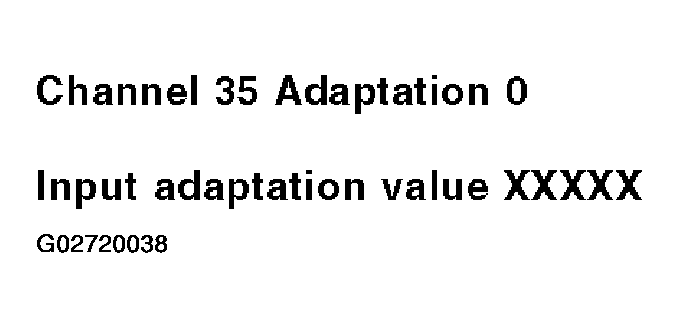

- Indicated on display
- Input adaptation value using keypad, filling initial positions with "0," for example, 00250.

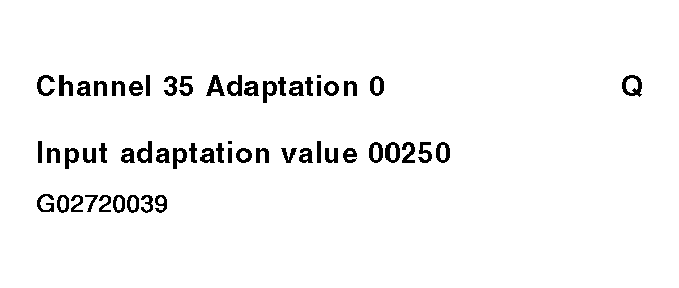

- Indicated on display
- Press -Q- button to confirm input.

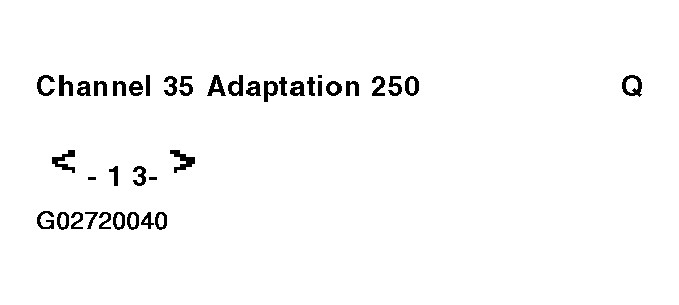

- Indicated on display
- Press -Q- button to confirm input.

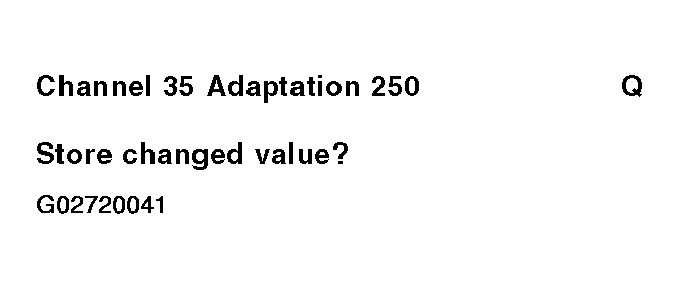

- Indicated on display
- Press -Q- button to confirm input.

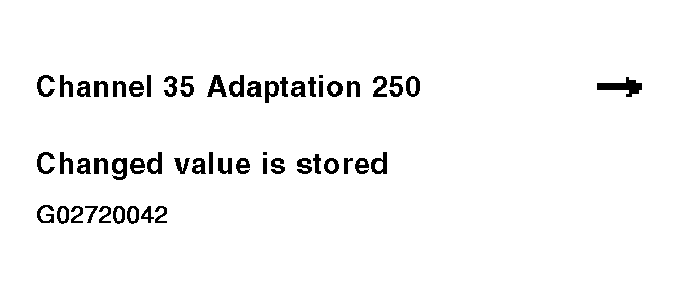

- Indicated on display
- End adaptation of the engine speed threshold by pressing the --> button.
