Display group overview:

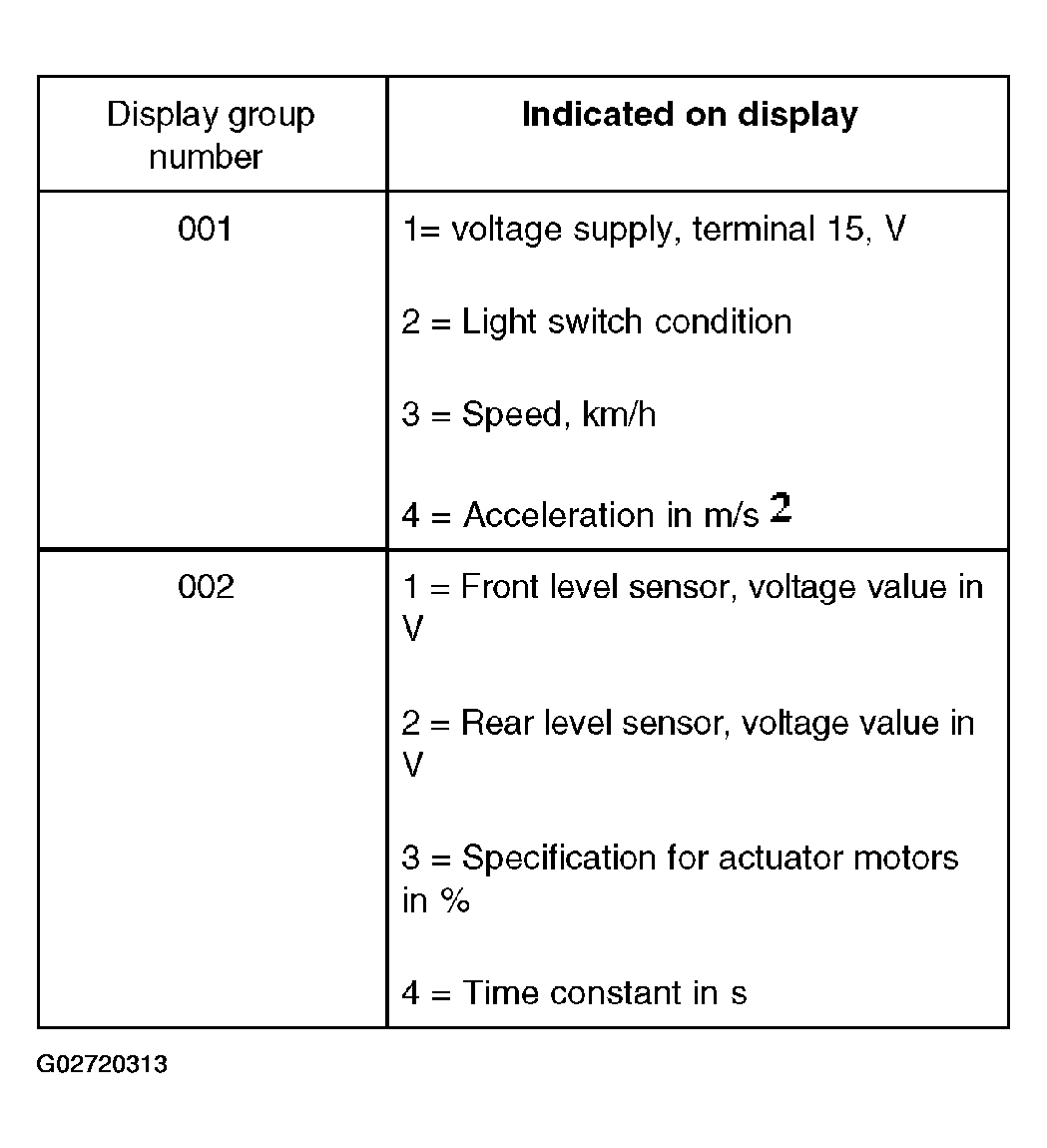

Fig 1: Read Measuring Value Block Display Group Overview - Automatic Headlight Aim Control (2000-04)

G02720313
