Measuring value block 4

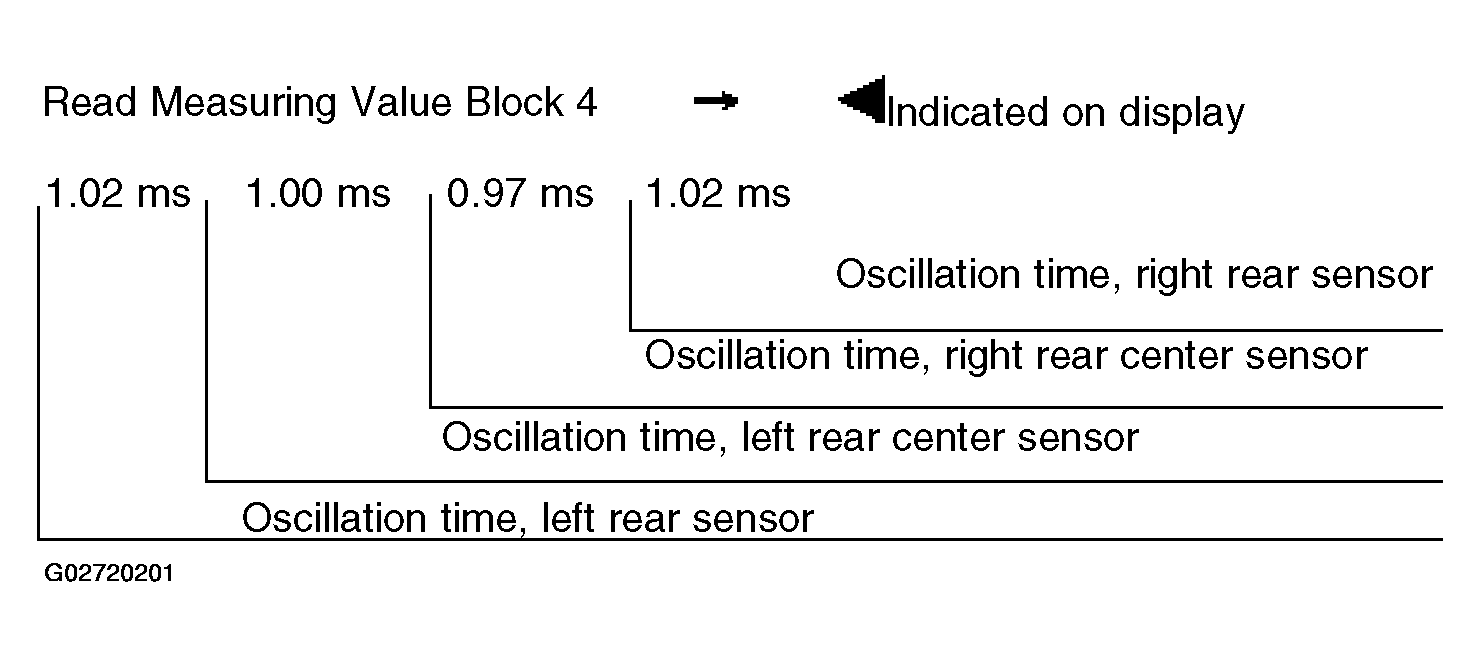

Fig 1: VAG 1551 Scan Tool Display - Measuring Value Block 4, Acoustic Parking System
G02720201
NOTE: If values that are greater than 4.00 ms are obtained with reverse gear selected, either the ultrasound sensor is faulty or there is an open circuit in the wiring.
