Test requirements:
- Check fuse for function according to wiring diagram.
- Connect the VAS5051 tester or VAG1551 scan tool. See VAS 5051 VEHICLE DIAGNOSTIC, MEASURING AND INFORMATION SYSTEM OR VAG1551 SCAN TOOL, CONNECTING AND SELECTING FUNCTIONS .
NOTE:
- If nothing is indicated on display, check voltage supply for VAG 1551 scan tool according to wiring diagram.
- Additional instructions can be called up via the -HELP-button on the scan tool.
- The --> button is used for advancing through the program sequence.
- An incorrect entry can be canceled using the C- button.
- Function 00 "Automatic test sequence" can be performed in operating mode 1 "Rapid data transfer". This automatically checks all control modules installed in the vehicle.
- Switch on ignition.
- Switch printer on via the print-button (indicator lamp in button lights up).
- Press button -1- to select "Rapid data transfer" operating mode 1.

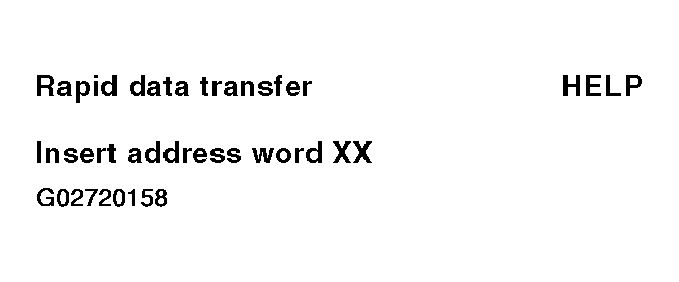

Indicated on display
Address word for Acoustic Parking System (APS): 76
- Press buttons -7- and -6-.

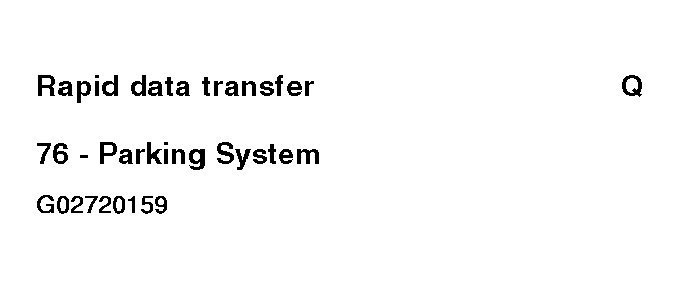

Indicated on display
- Press -Q- button to confirm input.

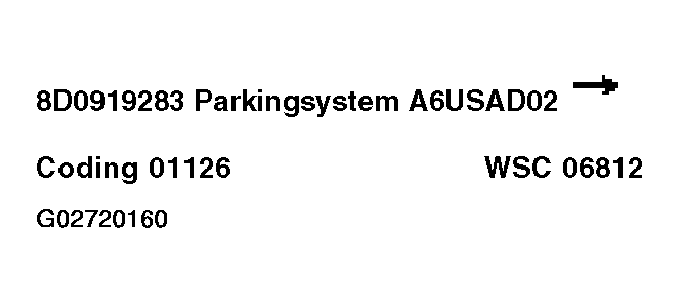

Indicated on display after approx. 5 seconds:
- 8D0919283: Part number of control module for parking aid (see also parts catalog)
- D02: Software version of control module for parking aid
- Coding 01126: Coding of control module for parking aid
- WSC 06812: dealership number
- Press --> button.
If one of these messages is indicated on the display:

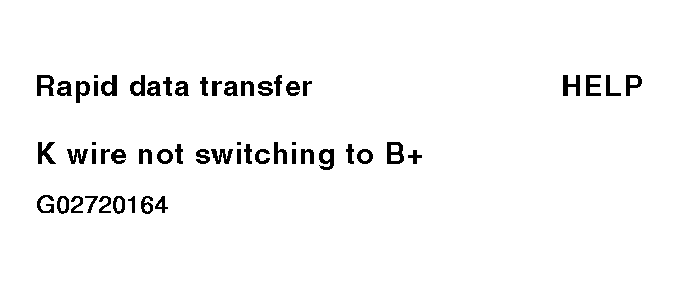

Indicated on display
or

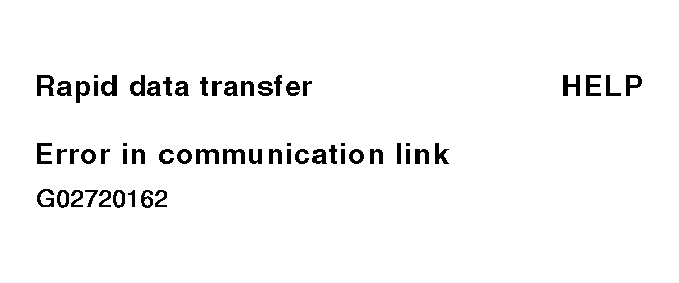

Indicated on display
or

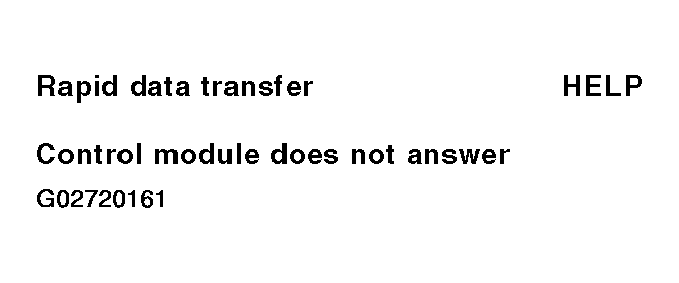

Indicated on display
or

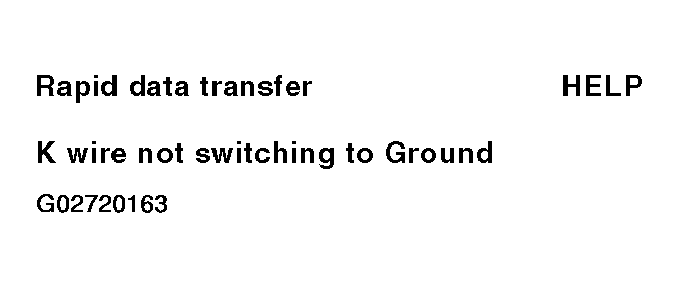

Indicated on display
- Check wiring connections for Data Link Connector (DLC).

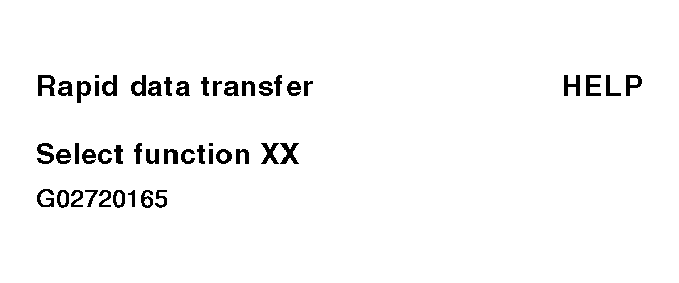

Indicated on display
- Pressing the -HELP- button will print out an overview of all of the possible functions.
- Press the --> button to continue program sequence.
