Multi-pin connector -E- (4-pin) assignments for transmitter clock

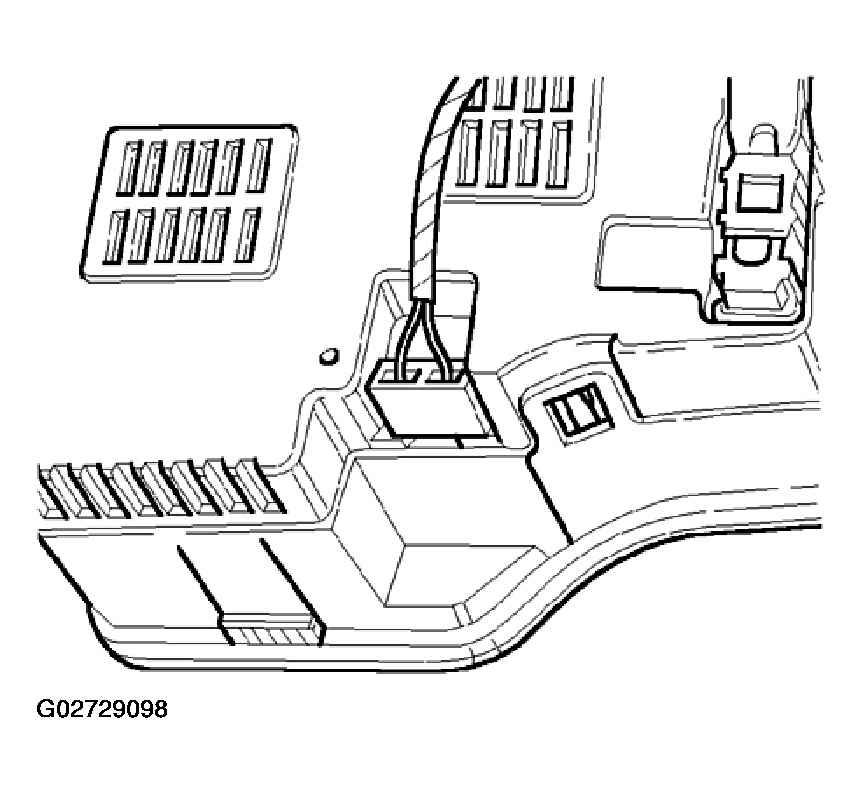

NOTE: The following list refers to Fig 1 .
  1. Transmitter clock signal
  2. Transmitter clock 5V
  3. Open
  4. Radio/Navigation clock ground
    5. Fig 1: Identifying Multi-Pin Connector E (4-Pin) (1997 & Up)
    G02729098
