Multi-pin connector -C- (26-pin - green) assignments

NOTE: The following list refers to Fig 1 .
  1. Open
  2. Open
  3. Open
  4. Open
  5. Open
  6. Airbag
  7. ABS
  8. Door lock (output)
  9. Turn signal, left
  10. Open
  11. Open
  12. Open
  13. Open
  14. Open
  15. ASR
  16. OBD II
  17. Trailer turn signal lights
  18. Open
  19. High beam
  20. Parking brake warning light
  21. Generator (GEN) warning light
  22. Turn signal, right
  23. Open
  24. Open
  25. Airbag (active)
  26. ABS (Sila)

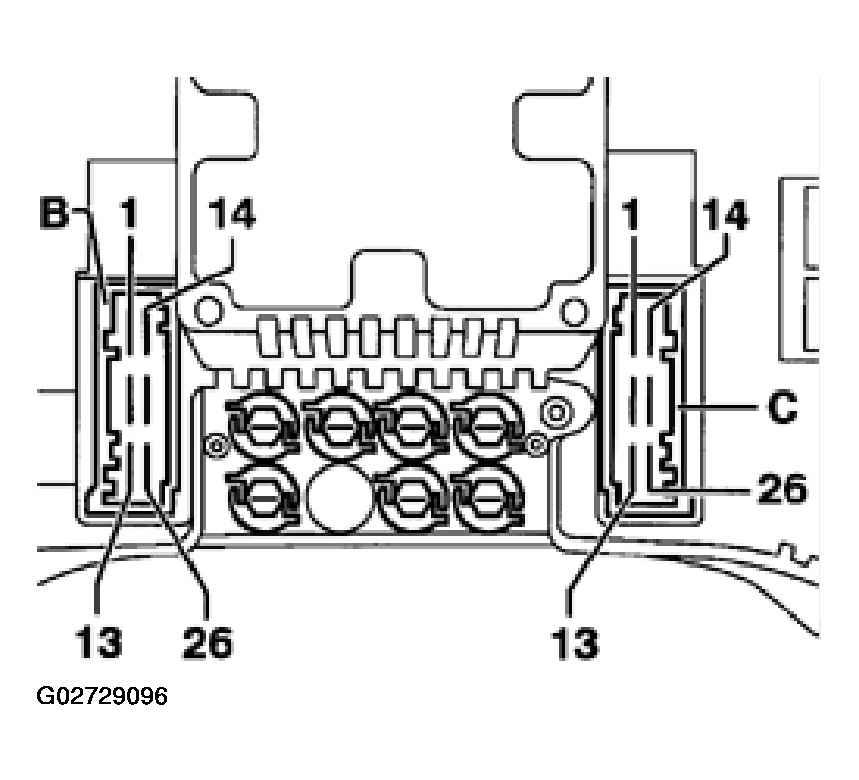

    27. Fig 1: Identifying Multi-Pin Connector C (26-Pin, Green) (1997 & Up)
    G02729096
