Instrument cluster connector assignments (vehicles 1997 and on)

NOTE: The following list refers to Fig 1 .

1. Multi-pin connector for basic functions (26-pin yellow)
2. Multi-pin connector for basic functions (26-pin - red)
3. Multi-pin connector for basic functions (26-pin - green)
4. Multi-pin connector for voltage supply (6-pin - white)
5. Multi-pin connector for transmitter clock (4-pin - white)

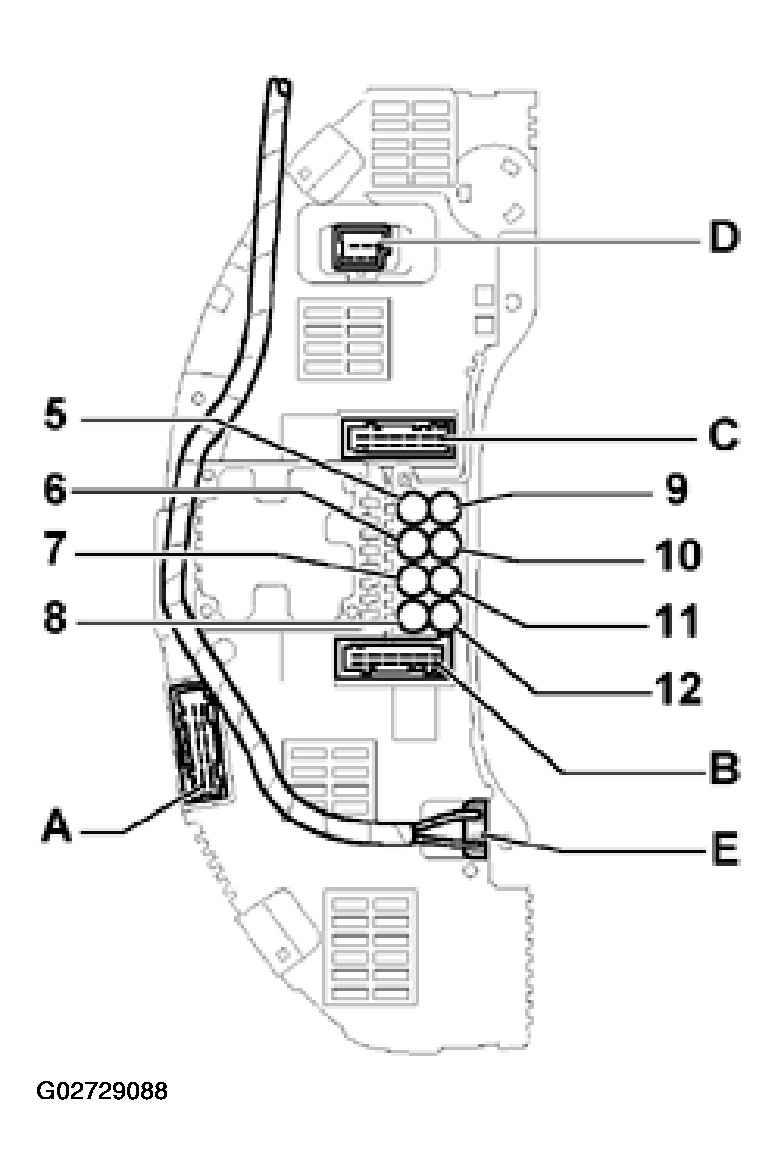

Fig 1: Identifying Instrument Cluster Connector Assignments (1997 & Up)
