Bulb assemblies in rear lid, removing and installing: Removing:

NOTE: The illustration shows the left light.
  1. Bulb for backup light -12 V, 21 W
  2. Bulb for rear fog light -12 V, 21 W
  3. Bulb for auxiliary tail light -12 V, 21 W

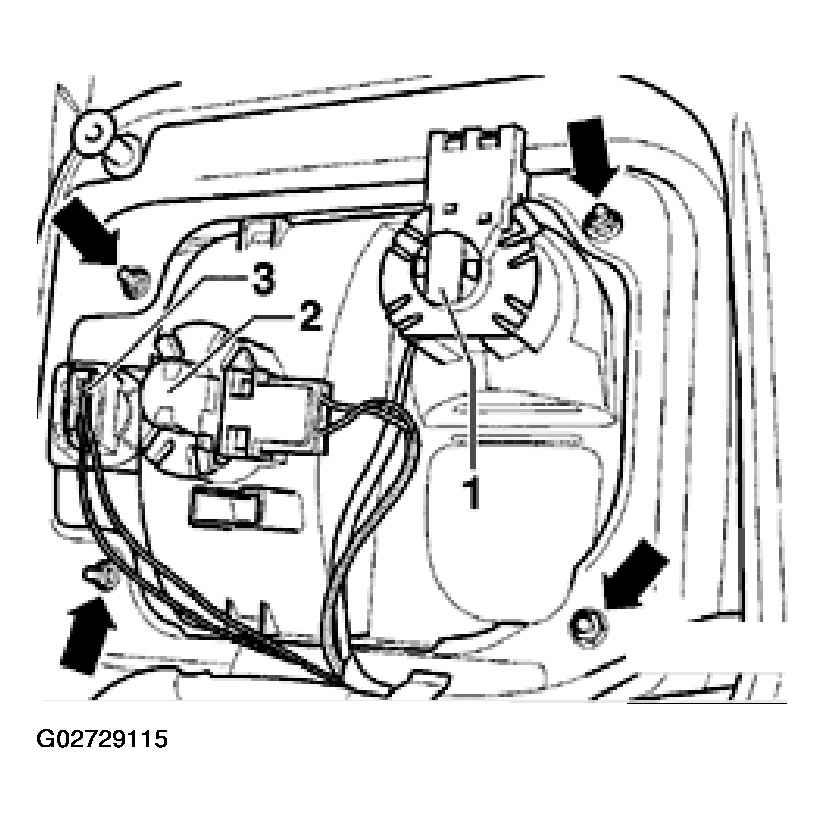

    4. Fig 1: Removing Bulbs For Backup Light, Rear Fog Light And Auxiliary Tail Light
    G02729115
