Ignition switch terminal assignments

NOTE: The following list refers to Fig 1 .

1. 15 - Terminal 15
2. 30 - Terminal 30
3. 50 - Terminal 50
4. 50b - Terminal 50b
5. 75 - Terminal 75
6. 86s - Terminal 86s
7. P - Park position

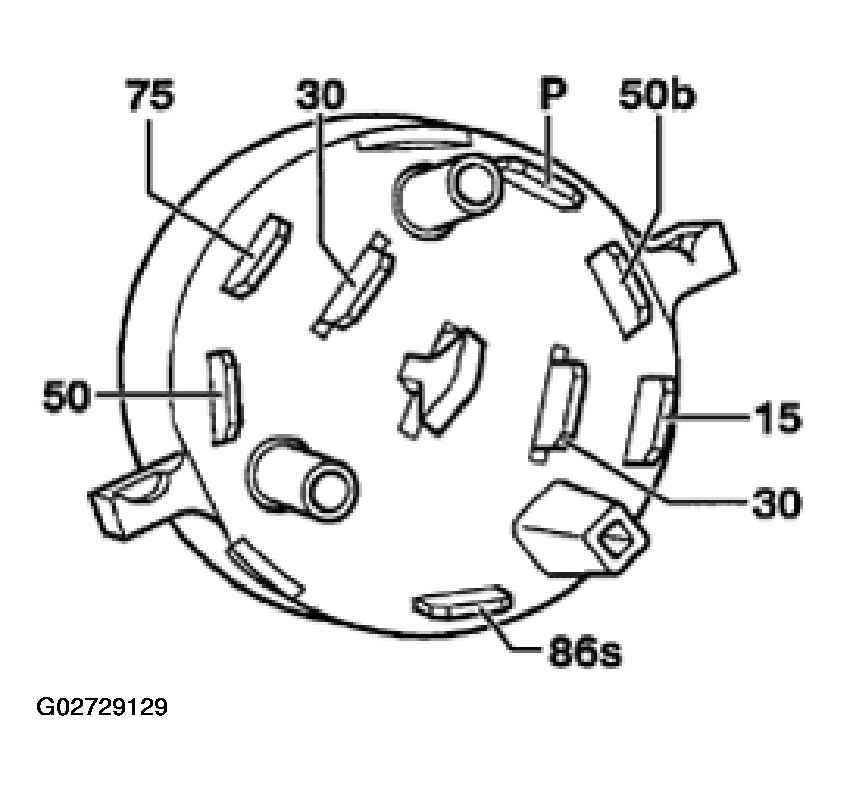

Fig 1: Identifying Ignition Switch Terminals
