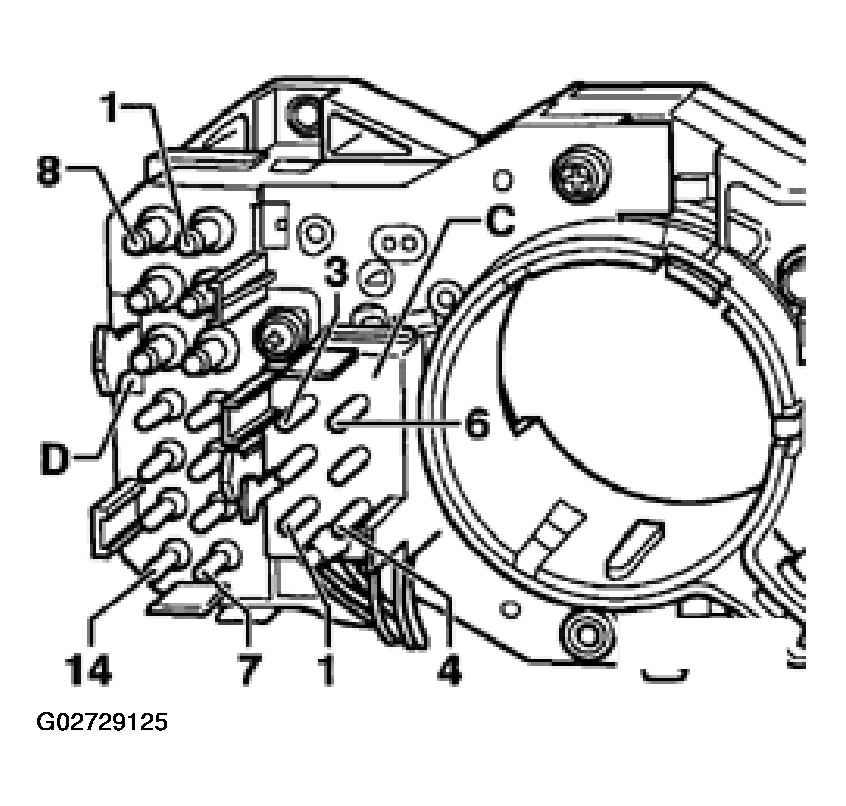

Turn signal switch, terminal -D- assignments
NOTE:
The following list refers to Fig 1
.
- Open
- Terminal X
- Side marker lights
- Turn signal, right
- Turn signal, left
- Terminal 30
- Terminal 58
- Terminal 56
- Terminal 56a
- Terminal 56b
- Fog light
- Parking light
- Terminal 30
- Fog light
