High-mount brake light, removing and installing: Removing:

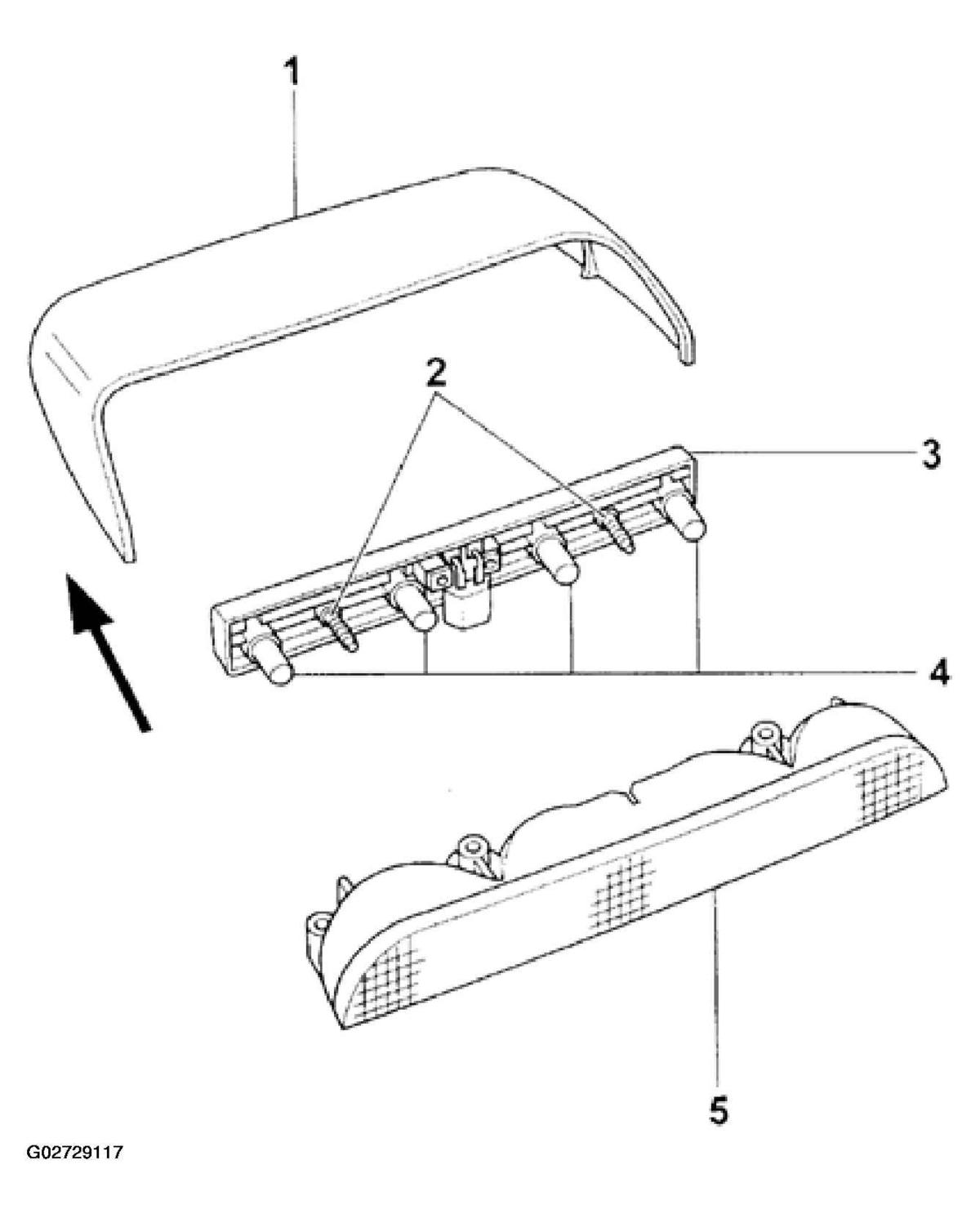

- Remove housing cover -1- by hand in direction of arrow. See Fig 1 .
- Remove screws -2- and remove bulb carrier -3- in direction of arrow.
- Bulbs -4- (4 x 12 V, 5W) are mounted in bulb carrier -3-.
- The 2-pin connector is located at the bulb holder -3-.
- The light housing -5- is secured with screws accessible from the inside of the luggage compartment.
