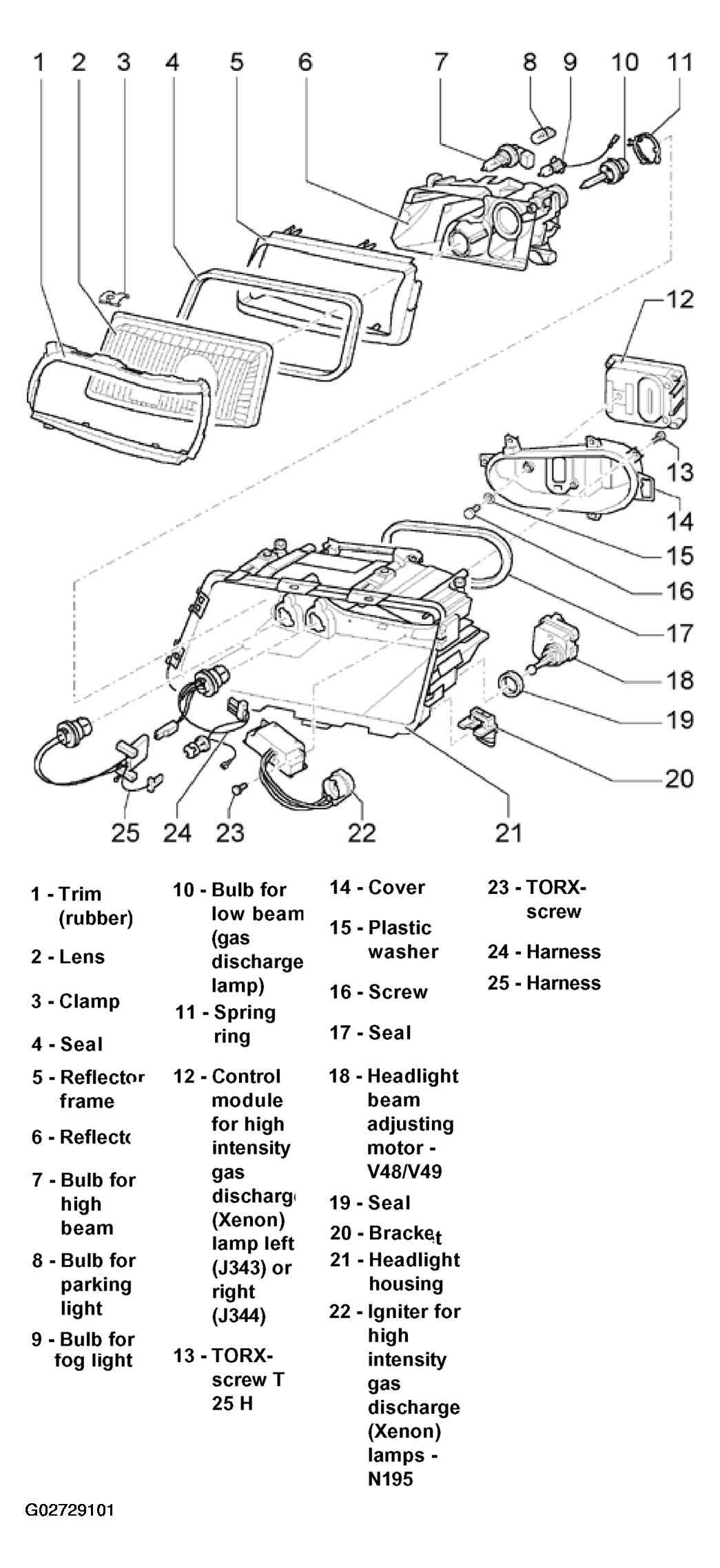

High intensity gas discharge (Xenon) headlights, overview: Notes

• Insert in all retainers of headlight housing

• Removing: remove rubber trim -1-, lever off 8 clamps, -3-

• 8 pieces
• Removing: lever off clamps with screwdriver
• Installing: engage clamps by hand

• Pull off
• Replace if damaged

• Press off evenly at top and bottom

• With headlight inserts
• Must be removed when removing igniter for gas discharge lamp -22-

Removing when headlight is disassembled:

• Remove headlight beam adjusting motor -18-
• Remove arrester of reflector from headlight adjustment screws by turning headlight adjustment screws.
• Disengage connector for ground cable at harness -24- and disconnect.

Installing:

• Insert activator pin for changing to right/left hand traffic into hole of trim in reflector.

• 12 V, 65 W with socket
• Removing: turn bulb holder to right and remove toward rear.
• Installing: insert tabs of socket into recesses and turn left.

• 12 V, 5 W

• 12 V, 55 W

• 12 V, 35 W

Removing:

• Turn socket to left and remove.
• Depress spring ring -11- and turn to left.

Installing:

• When inserting observe installation position.

• For gas discharge lamp

• Check for damage

Removing:

• Turn motor around its axis.
• Disengage ball joint downward from socket at reflector.

• Check for damage

• Replace if damaged
• Push in to stop.

• Removing: Remove reflector -6-
• Position wiring for gas discharge lamp in clamp.

• With lamp socket for parking light and ground wire

• For igniter and control module
