Headlight, removing and installing: Removing:

NOTE: Apply masking tape to the bumper in front of the headlight to prevent damage to the paint.

Loosen bolts at front bumper brackets and pull out bumper approx. 5 - 10 cm (2 to 4 in.).
See FRONT BUMPER, REMOVING AND INSTALLING .
Remove front turn signal lights. See TURN SIGNAL LIGHTS, REMOVING AND INSTALLING .
Disconnect 5-pin connector at headlight wiring harness.
Remove screw -1- and remove trim -2-.
Remove four screws -3- and pull out headlight assembly toward front.

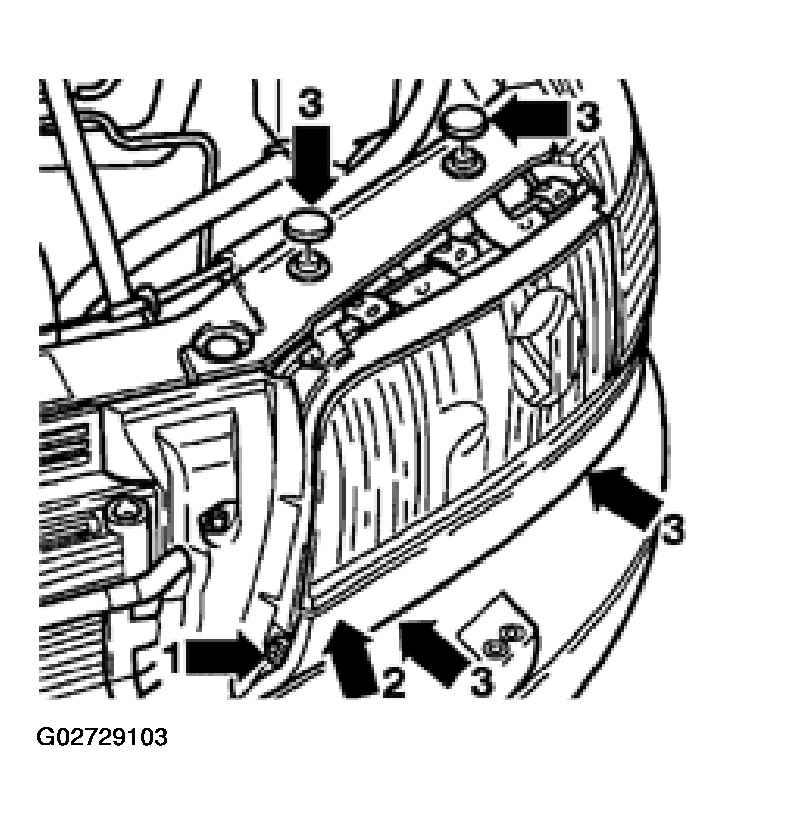

Fig 1: Removing Headlight Assembly
