Halogen headlights, overview
NOTE:
The headlights must be adjusted after any work done that could affect the beam adjustment.
NOTE:

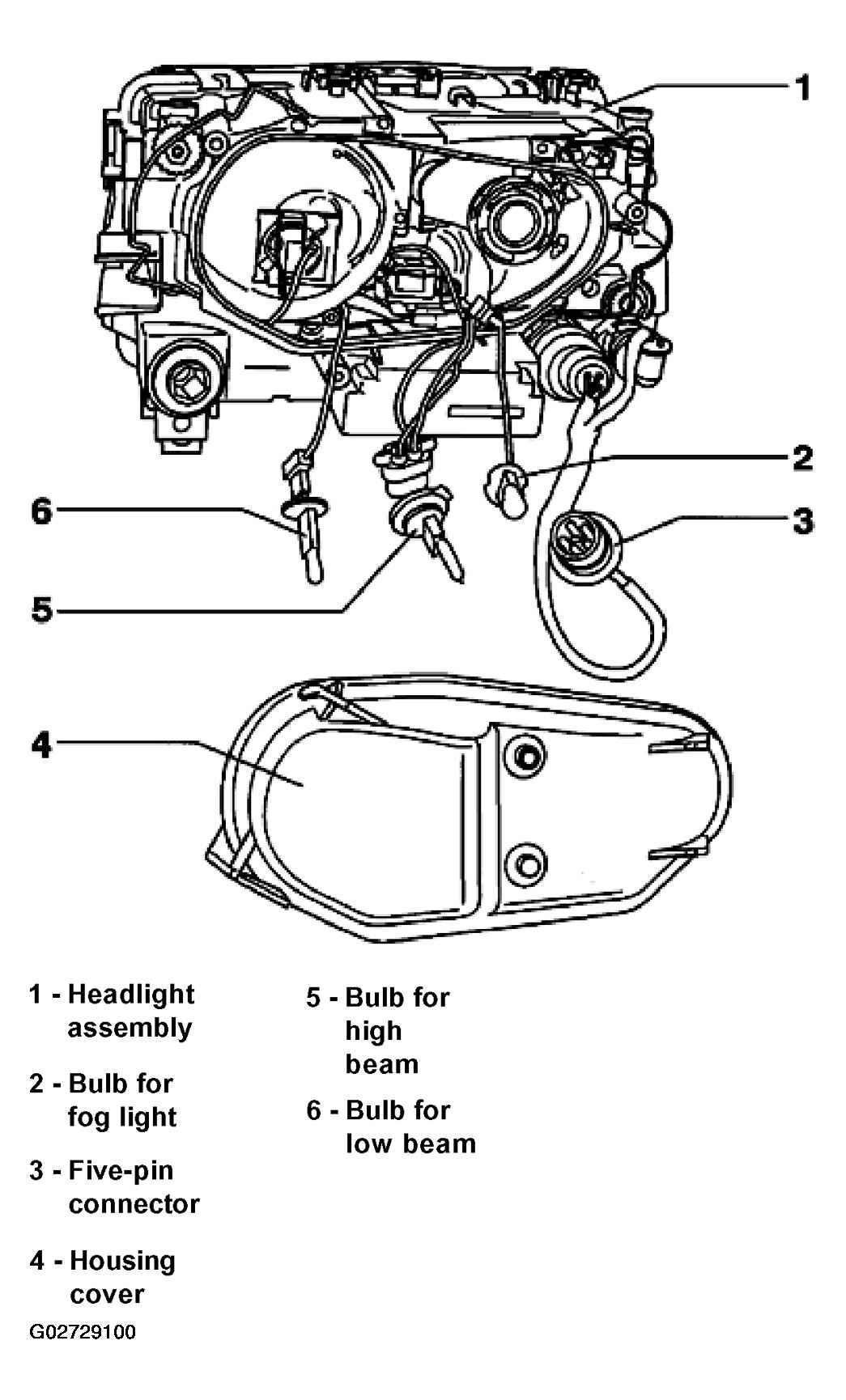

The following list refers to Fig 1
.
- Headlight assembly
- Bulb for fog light
- H3 - 12 V, 55 W
- Replacing. See HEADLIGHT BULBS, REPLACING .
- Five-pin connector
- Housing cover
- Bulb for high beam
- W5W - 12 V, 5 W
- Replacing. See BULB FOR HIGH BEAM .
- Bulb for low beam
- H1 - 12 V, 55 W
- Replacing. See BULB FOR LOW BEAM OR FOG LIGHT .
