Automatic headlight beam adjusting, overview: Notes
CAUTION:
Before working on the electrical system:
- Determine the correct coding for the anti-theft radio.
- Disconnect the battery Ground (GND) strap.
NOTE:
After reconnecting the battery be sure to reactivate the radio, clock, power windows and engine according to instructions in the Owner's Manual.
NOTE:

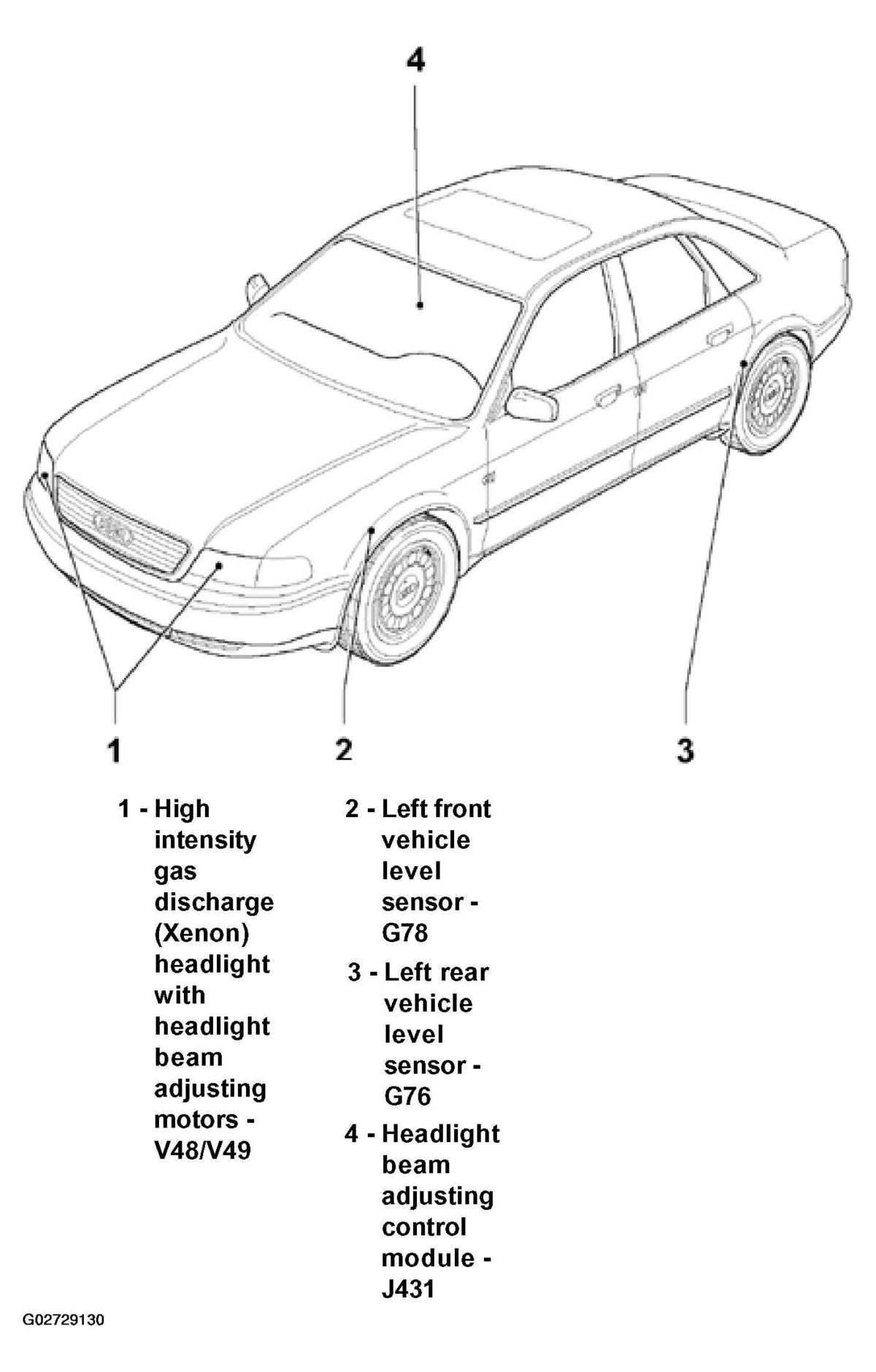

The following list refers to Fig 1
.
- High intensity gas discharge (Xenon) headlight with headlight beam adjusting motors - V48/V49
- Left front vehicle level sensor -G78-
- Located on left trailing arm of front axle
- Removing and installing. See LEFT FRONT VEHICLE LEVEL SENSOR -G78-, REMOVING AND INSTALLING .
- Left rear vehicle level sensor -G76-
- Located on rear trailing arm
- Removing and installing. See Left rear vehicle level sensor -G76-, removing and installing .
- Headlight beam adjusting control module -J431-
- Located under trim of right B-pillar
- Removing and installing. See HEADLIGHT BEAM ADJUSTING CONTROL MODULE -J431-, REMOVING AND INSTALLING .
