Shock Absorber: Removal

WARNING: This page is about a different variant/trim than selected.

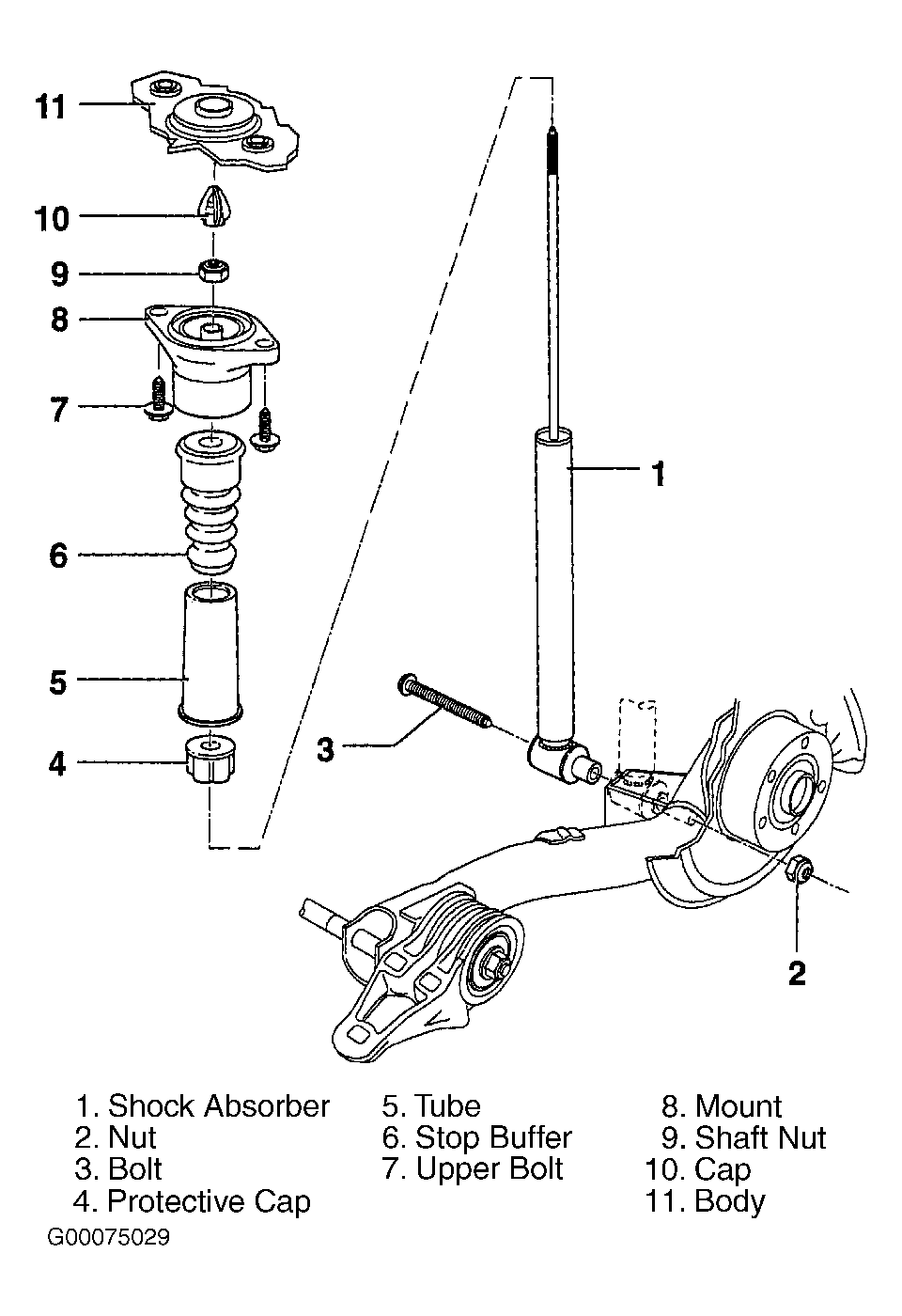

Raise and support vehicle. Remove wheel. Unbolt shock absorber from axle beam and remove shock absorber from axle beam. See Figure . Pull axle down slightly to remove coil spring. Unbolt upper shock absorber mounting. Remove shock absorber.
