Removal & Installation (Steel - Wheel Bearing Housing Removed)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel bearing housing. See WHEEL BEARING HOUSING . Replace wheel bearing as shown in illustrations. See Fig 1 -Fig 3 .

NOTE: When installing wheel bearing, large inside diameter of wheel bearing faces out.

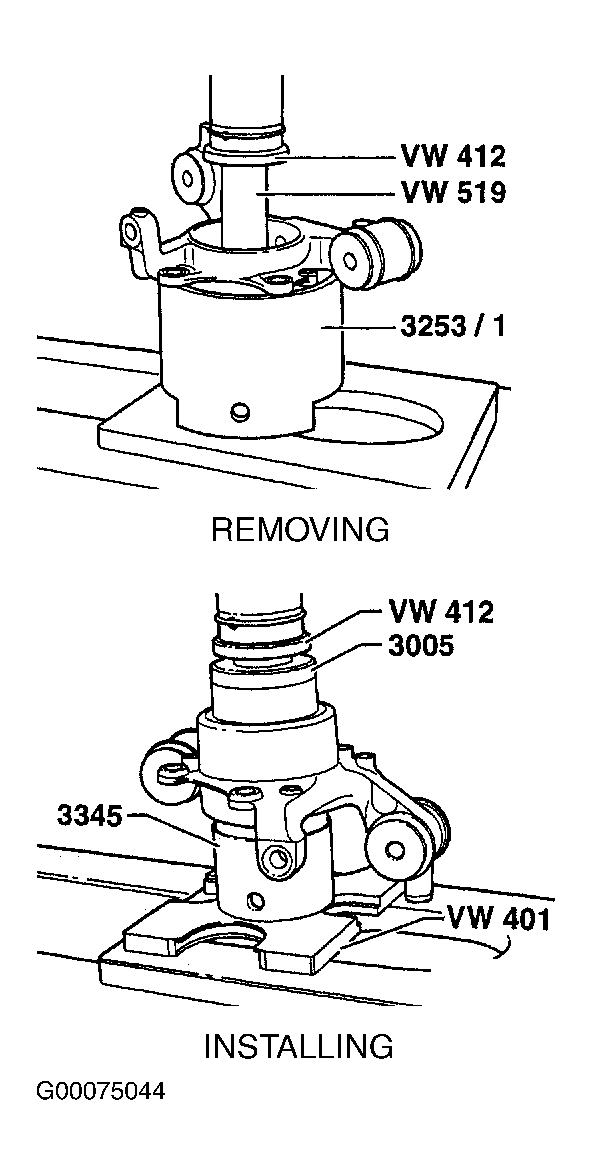

Fig 1: Removing & Installing Wheel Bearing (Steel)

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Removing Inner Race From Wheel Hub

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Removing & Installing Hub Assembly

Courtesy of AUDI OF AMERICA, INC.
