Removal & Installation (Steel - Wheel Bearing Housing Installed)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel cover. Loosen drive axle bolt by 90° only. Raise and support vehicle. Remove wheel. Remove drive axle bolt completely.
Pull out safety washer and disconnect parking brake cables from brake caliper. Be careful not to damage parking brake boot when removing and installing cable. Remove caliper carrier with brake caliper and hang on body with tie wire. Remove brake disc and backing plate. Remove ABS wheel speed sensor from wheel bearing housing.

CAUTION: Place engine/transmission jack VAG1383/A under control arm (danger of accident if parts fall off when ejecting wheel hub and wheel bearing).

Unscrew bolt (2) for control arm (1). See Figure . Pull wheel bearing housing off drive axle and swing out.
To replace wheel bearing, see Fig 1 -Fig 4 .

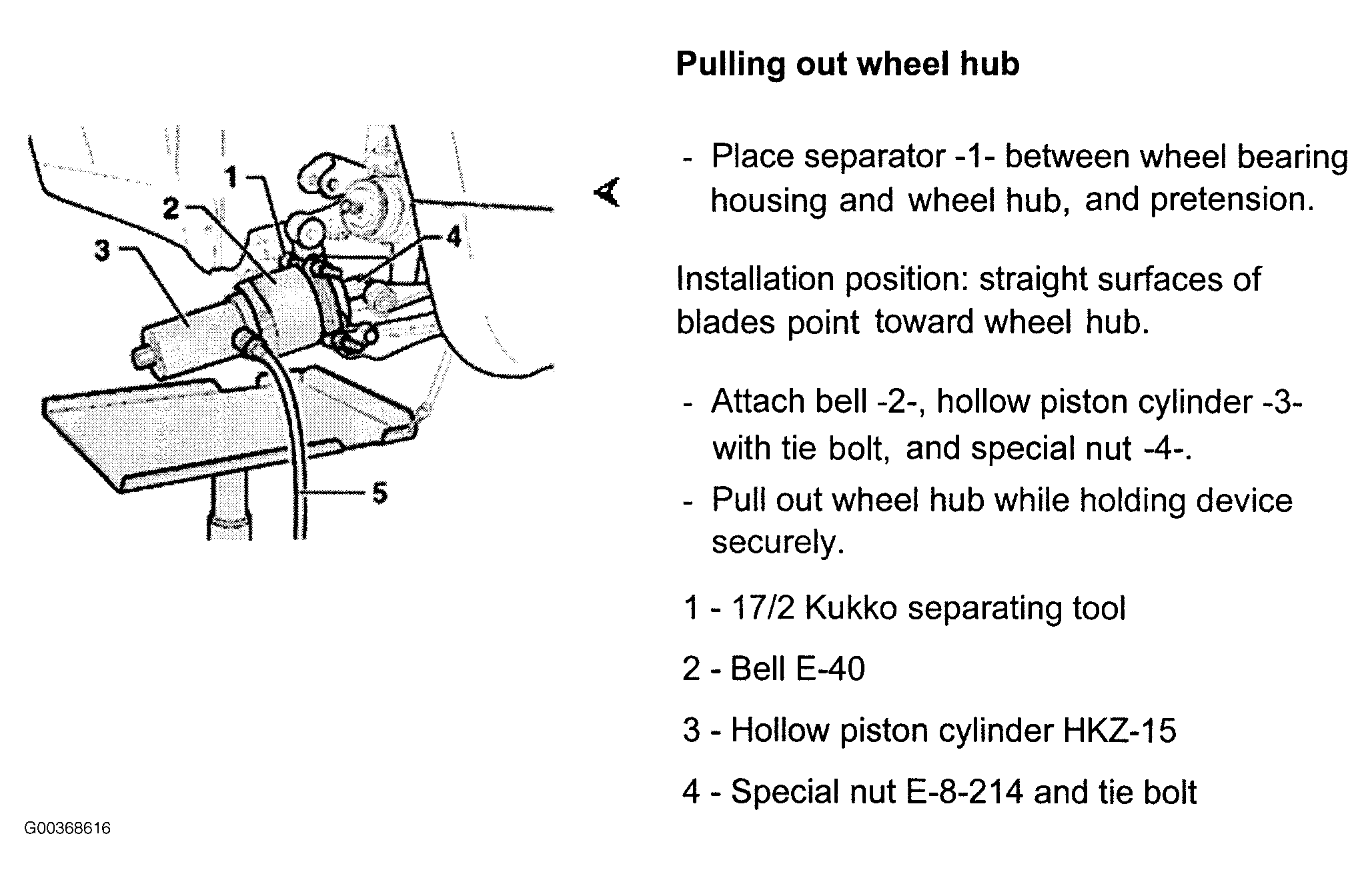

Fig 1: Replacing Wheel Bearing (Steel Housing Installed, 1 Of 4)
Courtesy of AUDI OF AMERICA, INC.

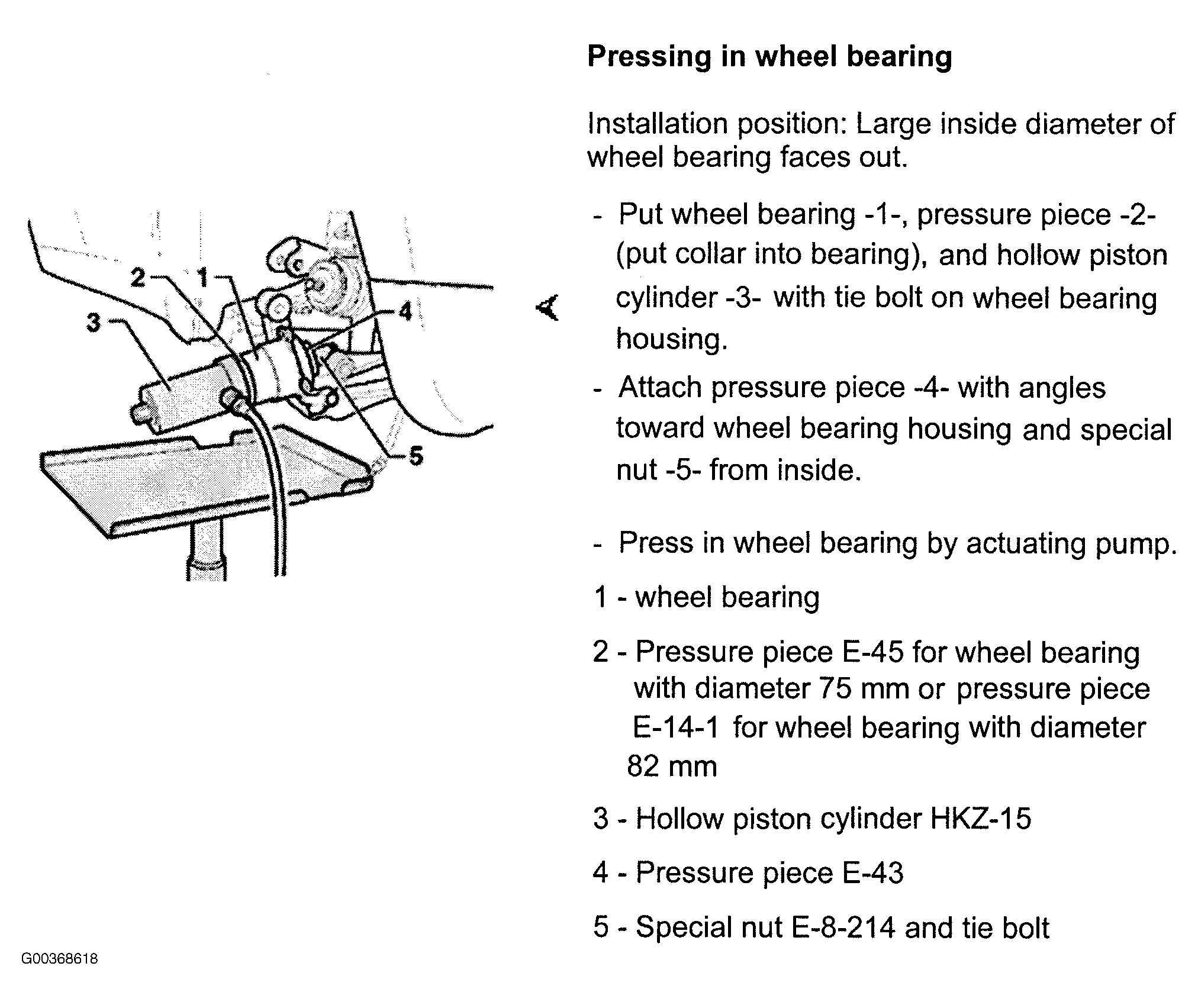

Fig 2: Replacing Wheel Bearing (Steel Housing Installed, 2 Of 4)
Courtesy of AUDI OF AMERICA, INC.

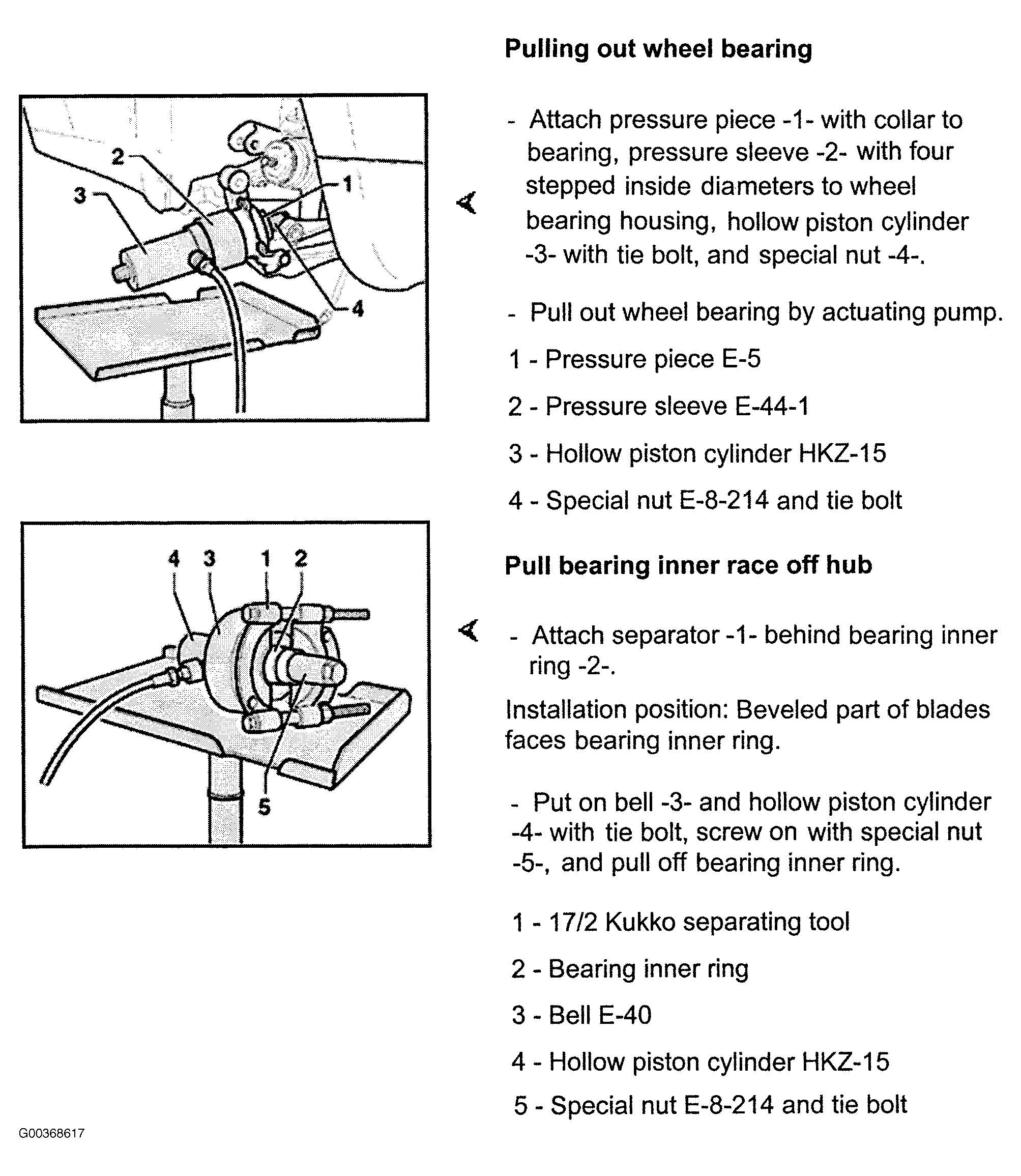

Fig 3: Replacing Wheel Bearing (Steel Housing Installed, 3 Of 4)
Courtesy of AUDI OF AMERICA, INC.

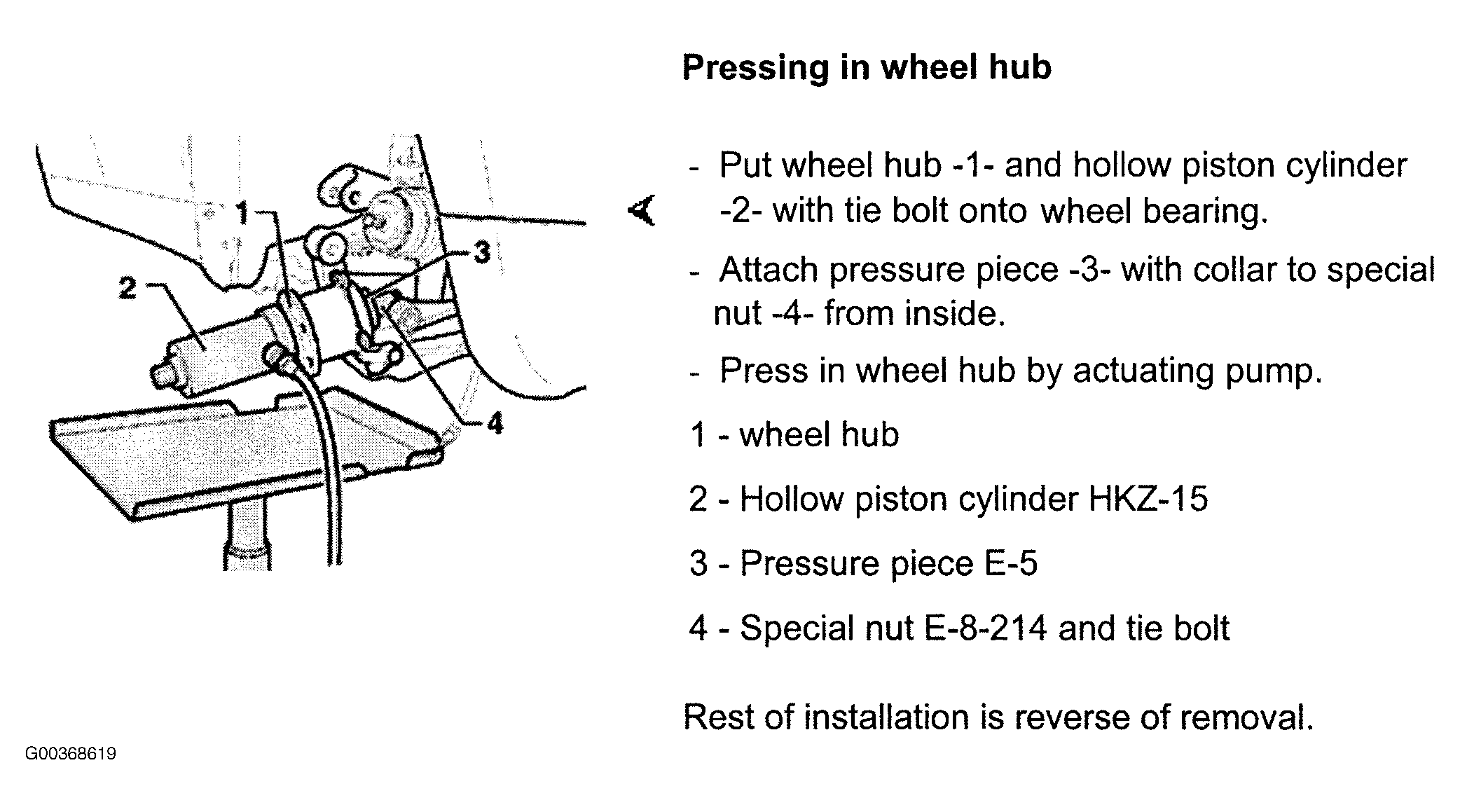

Fig 4: Replacing Wheel Bearing (Steel Housing Installed, 4 Of 4)
Courtesy of AUDI OF AMERICA, INC.
