Removal & Installation (Aluminum)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

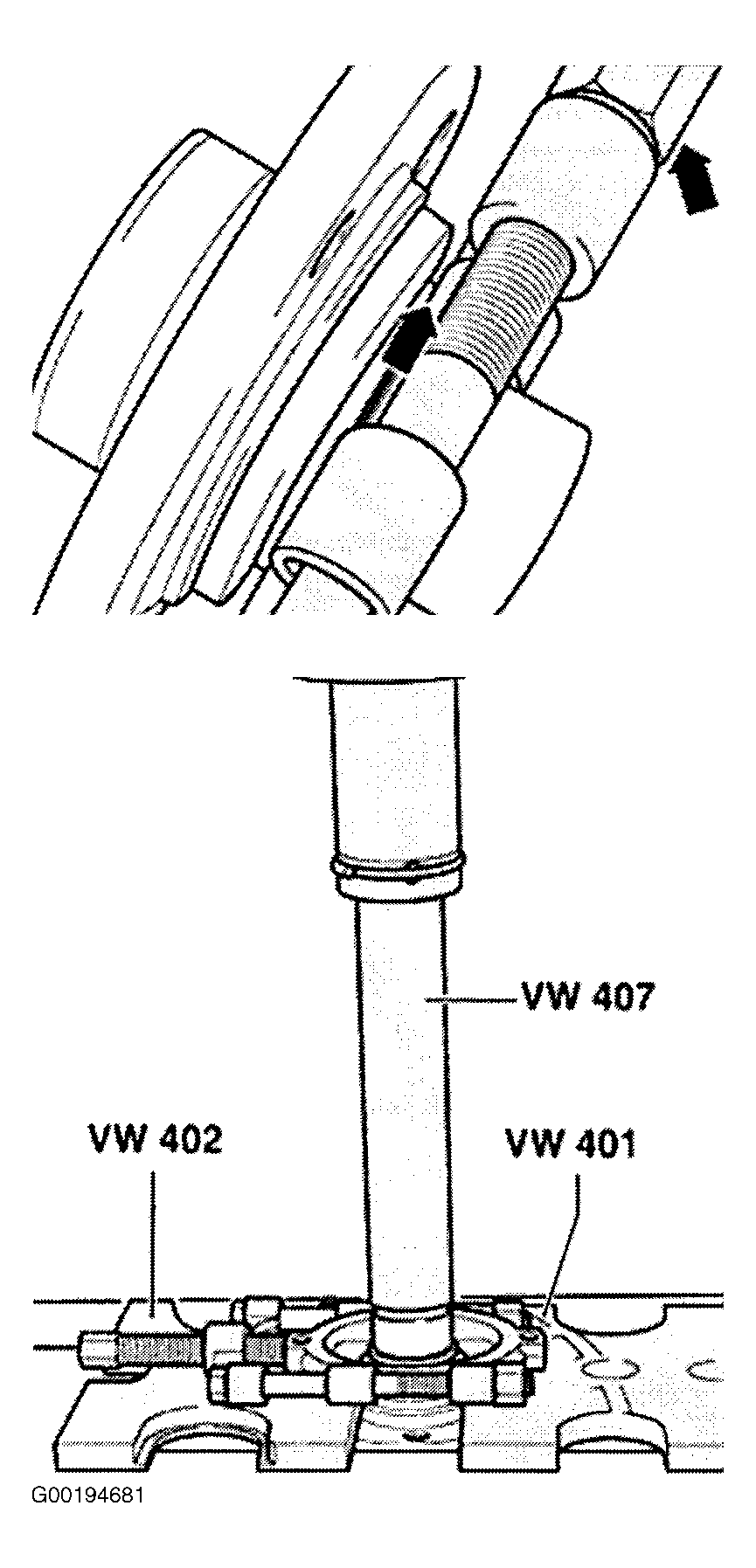

Remove wheel bearing housing. See WHEEL BEARING HOUSING . Replace wheel bearing as shown in illustrations. See Fig 1 -Fig 4 . To press bearing inner race off wheel hub, see Figure .

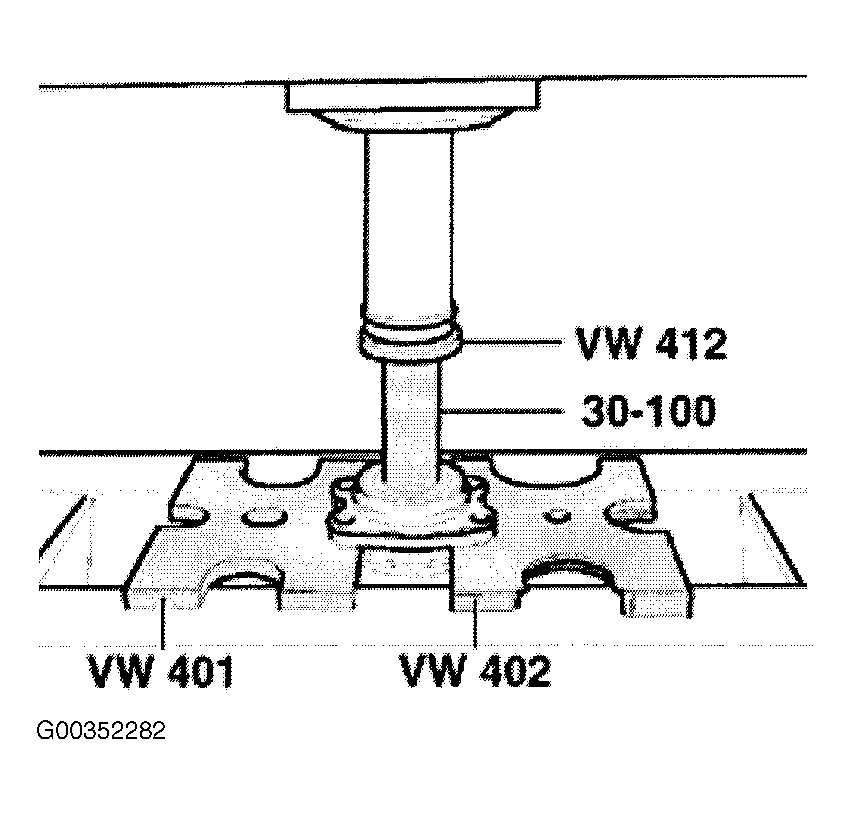

Fig 1: Pressing Wheel Bearing Out (Aluminum - 75 mm)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

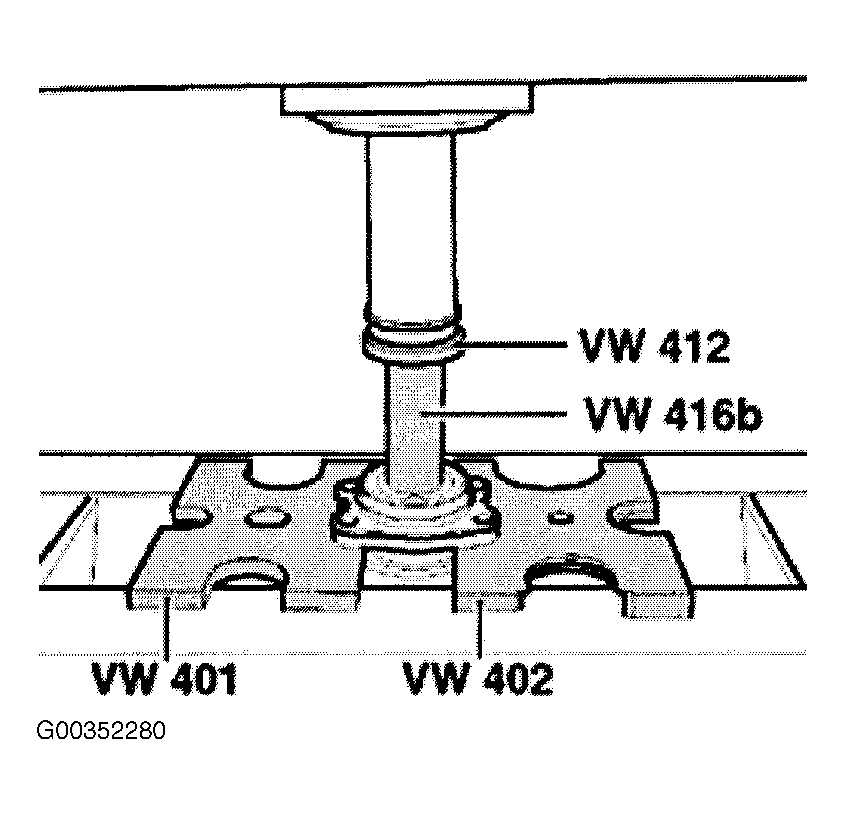

Fig 2: Pressing Wheel Bearing In (Aluminum - 75 mm)

Courtesy of ABLE BODY CORP.

Fig 3: Pressing Wheel Bearing Out (Aluminum - 82 mm)

Courtesy of AUDI OF AMERICA, INC.

Fig 4: Pressing Wheel Bearing In (Aluminum - 82 mm)

Courtesy of AUDI OF AMERICA, INC.
