Removal & Installation (Aluminum)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel cover. Loosen drive axle bolt by 90° only. Raise and support vehicle. Remove wheel. Remove drive axle bolt completely. On vehicles equipped with an outer joint of 98 mm diameter, drive axle must be removed. See AXLE SHAFTS - FRONT & REAR article in DRIVELINE/AXLES.
Remove brake caliper bolts. Wire brake caliper aside without disconnecting brake hose. Remove brake disc. Remove socket-head bolt (1). See Fig 1 . Remove ABS wheel speed sensor (2) from wheel bearing housing. Remove anti-roll bar link bolt from lower control arm.

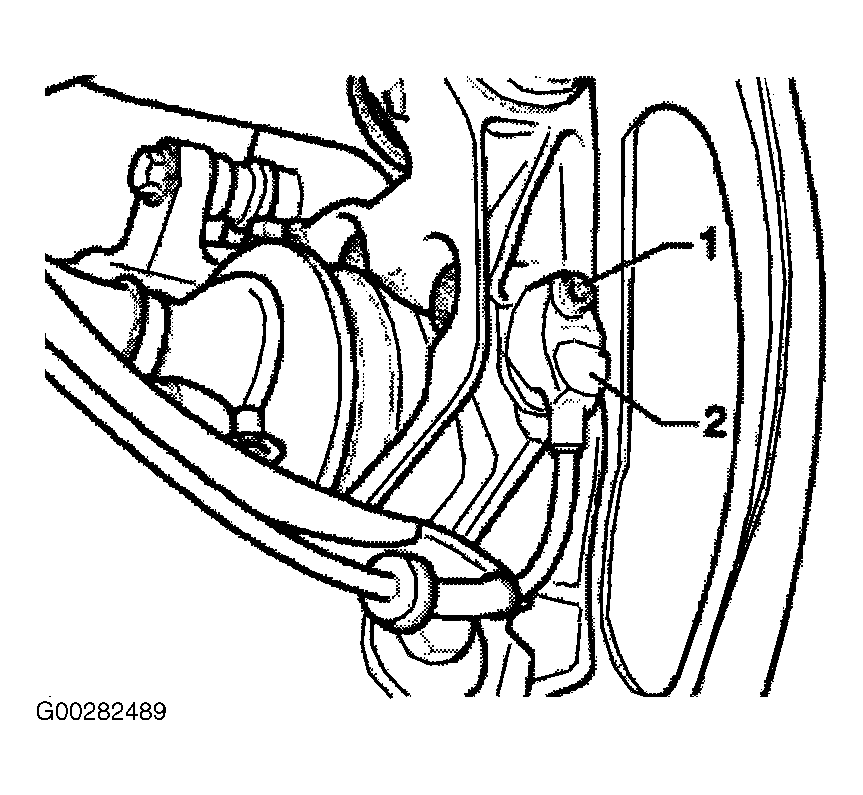

Fig 1: Removing ABS Wheel Speed Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Unscrew bolt (A) for tie rod. See Figure . Mark installation position of eccentric washer for bolt (B). Unscrew bolt (B).
Remove upper control arm-to-wheel bearing housing. pull wheel bearing housing off drive axle shaft.
Installation is the reverse of removal procedure. Bonded rubber bushings can only be turned to a limited extent. Bolted connections should only be tightened when vehicle is standing on ground. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS .
