Removal & Installation (Steel Housing)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Bonded rubber bushing in wheel bearing housing consists of two parts. Therefore, removal and installation is performed in two work sequences. Replace wheel bearing housing bushings as follows.

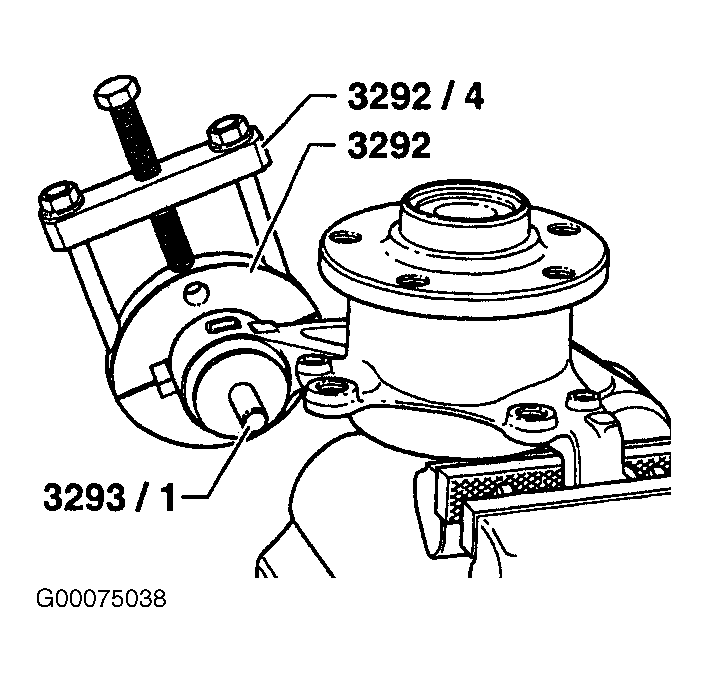

Slightly flange sheet metal collars of bonded rubber bushing. Install separator 3292, and tighten with spindle. Blades of tool must be applied exactly between collar of bonded rubber bushing and wheel bearing housing. Insert pin 3293/1. See Fig 1 .

Fig 1: Installing Tools To Remove Bushing
Courtesy of AUDI OF AMERICA, INC.

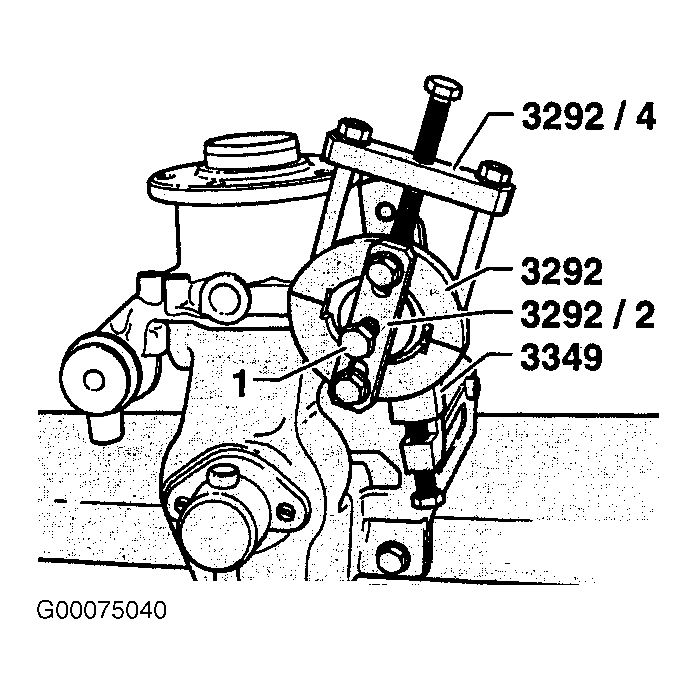

Install tool 3349 so that blades push exactly between bonded rubber bushing and wheel bearing housing. Turn spindle (2) until bonded rubber bushing lifts slightly off of wheel bearing housing and tighten bolt (1). See Fig 2 .

Fig 2: Installing Rear Puller
Courtesy of AUDI OF AMERICA, INC.

NOTE: When pulling out bushing, ensure that blades of tool lie completely against collar of bonded rubber bushing.

Fig 3: Installing Front Puller

Courtesy of AUDI OF AMERICA, INC.

Install bridge 3292/2. Turn hex bolt (1) to press out one of the two bonded rubber bushings. See Fig 3 .

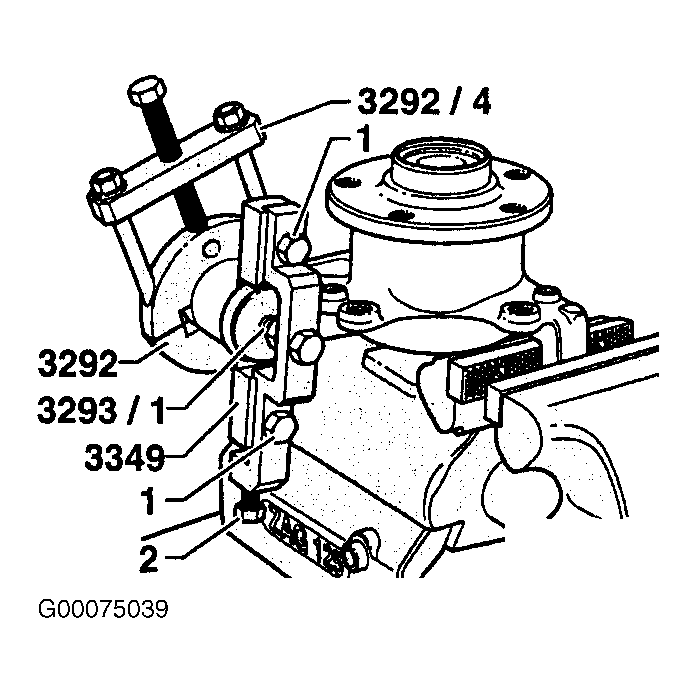

To press out second bonded rubber bushing, insert thrust piece 3349/1 and insert spindle from 3292. Remove bonded rubber bushing by turning spindle. See Fig 4 .

Fig 4: Installing Thrust Piece
Courtesy of AUDI OF AMERICA, INC.

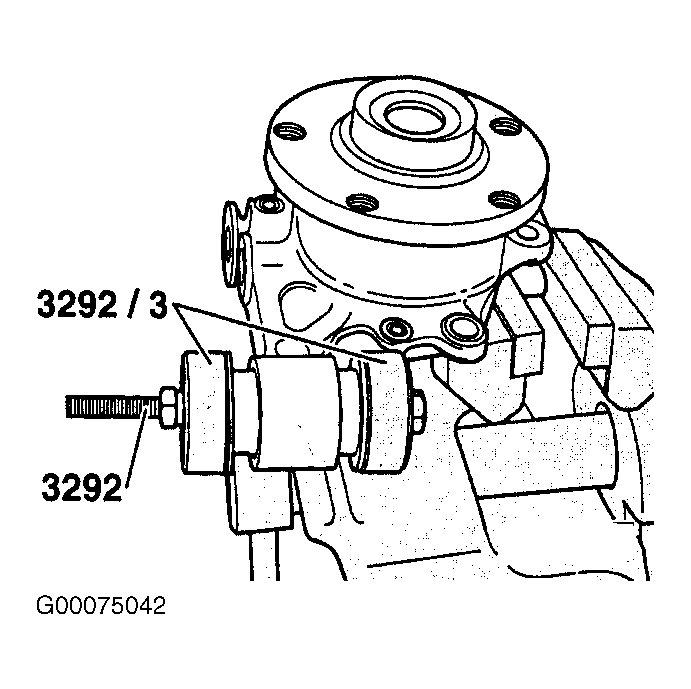

To install NEW bushings, install both bonded rubber bushings together with tool 3292/3. Pull in bonded rubber bushing by turning spindle. See Fig 5 .

Fig 5: Installing Lower Bushing
Courtesy of AUDI OF AMERICA, INC.
