Rear SUBFRAME: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Arrows on aluminum washers of bonded rubber bushing must face opposite direction of travel (toward rear). See Fig 1 .

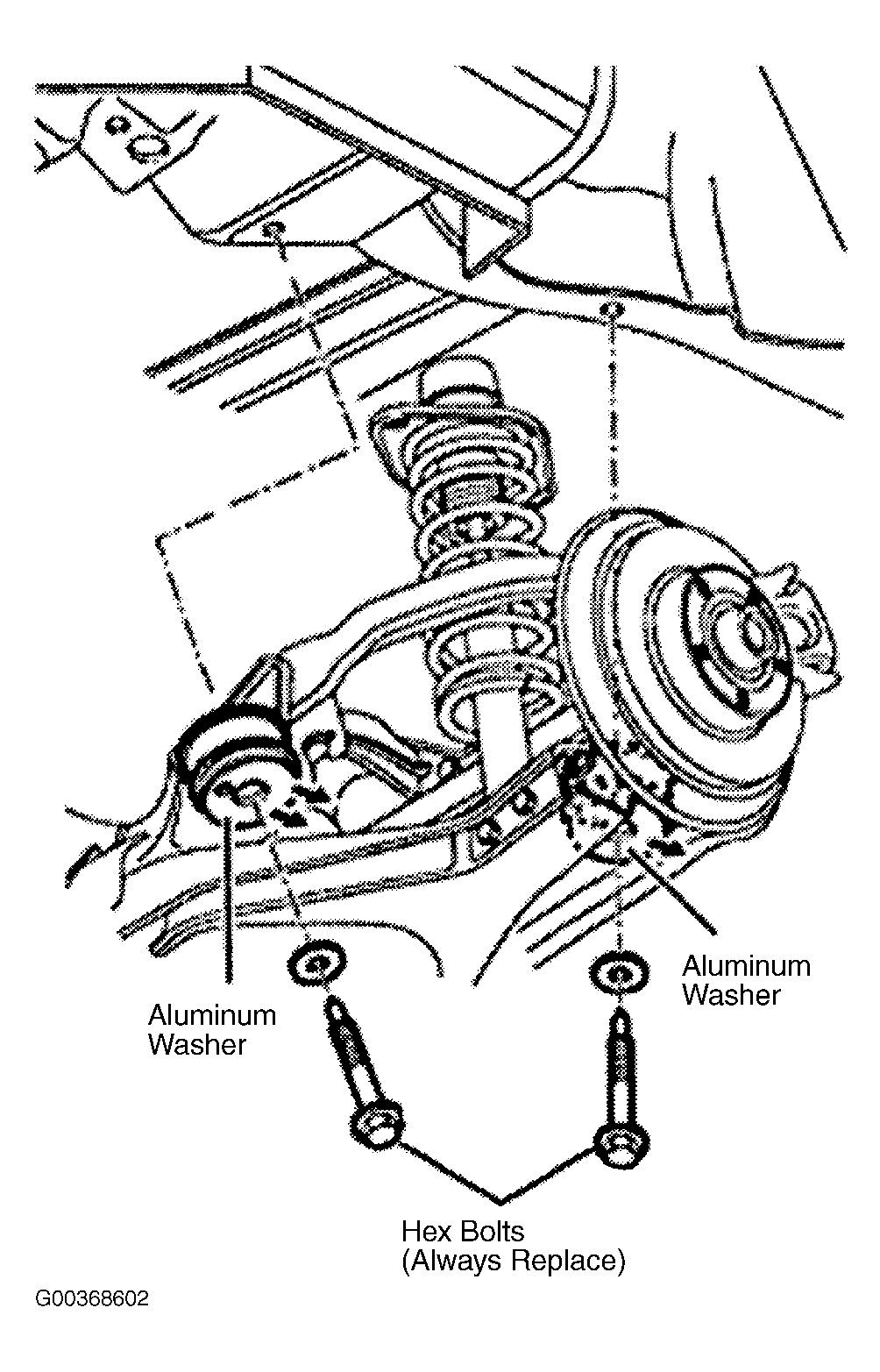

Fig 1: Locating Bonded Rubber Bushing Aluminum Washers
Courtesy of AUDI OF AMERICA, INC.
Use tap to clean threads in final drive flange. Use NEW subframe bolts, lower strut assembly bolts, brake caliper bolts and driveshaft bolts.
Torque fasteners to specification. Bolted connections in rubber bushings should only be torqued to specification once vehicle is resting on its own weight. See TORQUE SPECIFICATIONS .
Align rear subframe. See REAR SUBFRAME under ADJUSTMENTS & INSPECTION.
Adjust parking brake. Check wheel alignment. See PROCEDURES & SPECIFICATIONS article in WHEEL ALIGNMENT.
