Rear SUBFRAME Mount (Aluminum): Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

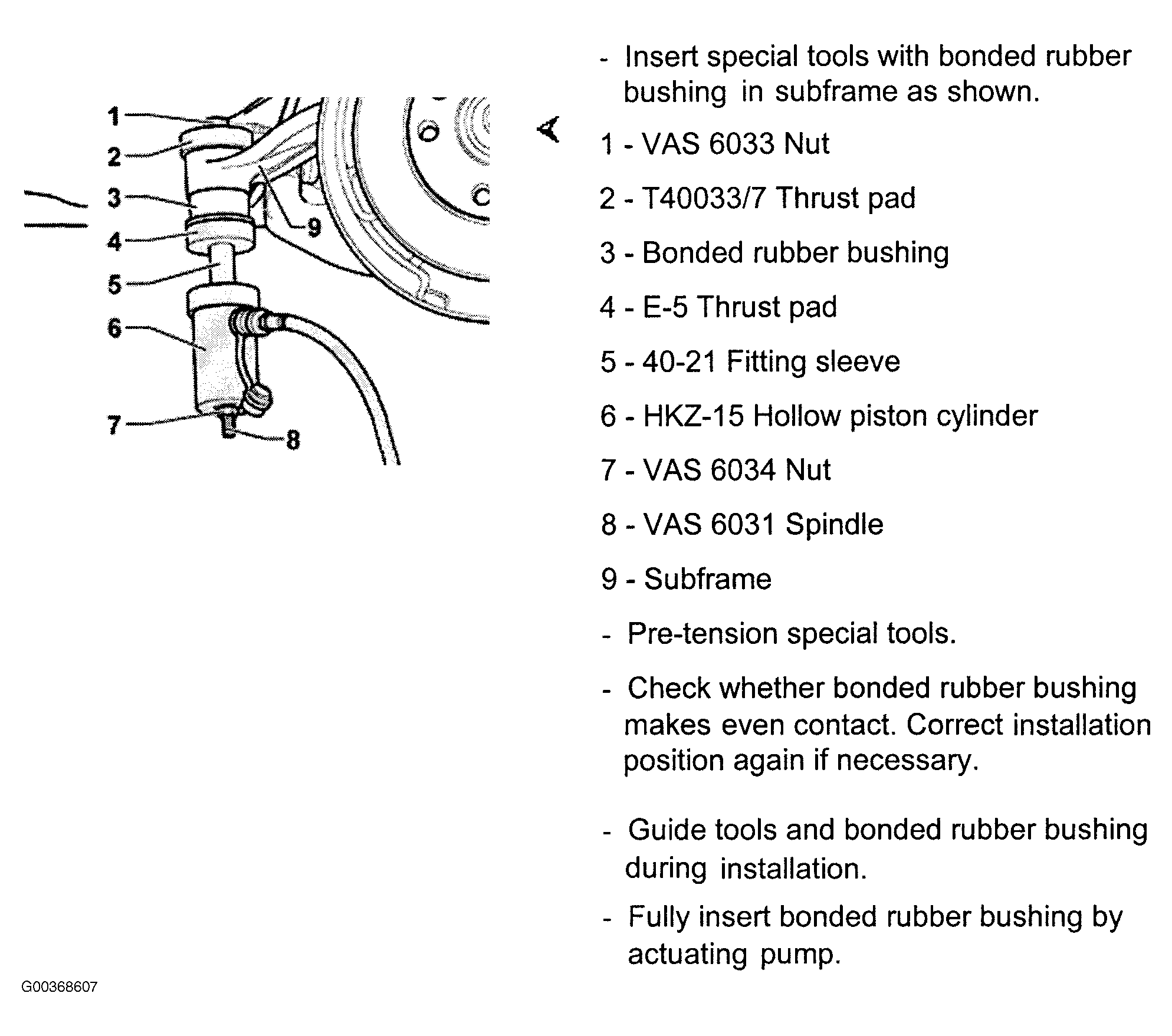

Install front subframe bushing. See Fig 1 . Check whether bonded rubber bushing makes even contact. Correct installation position again if necessary. Guide tools and bonded rubber bushing during installation. Fully insert bonded rubber bushing by actuating pump.

Fig 1: Installing Front Subframe Bushing (Aluminum)
Courtesy of AUDI OF AMERICA, INC.

NOTE: Take care not to cant bonded rubber bushing at start of installation, otherwise outer race could be damaged. When installing bonded rubber bushing with special tool V.A.G 1459 B replace with correct bushing.

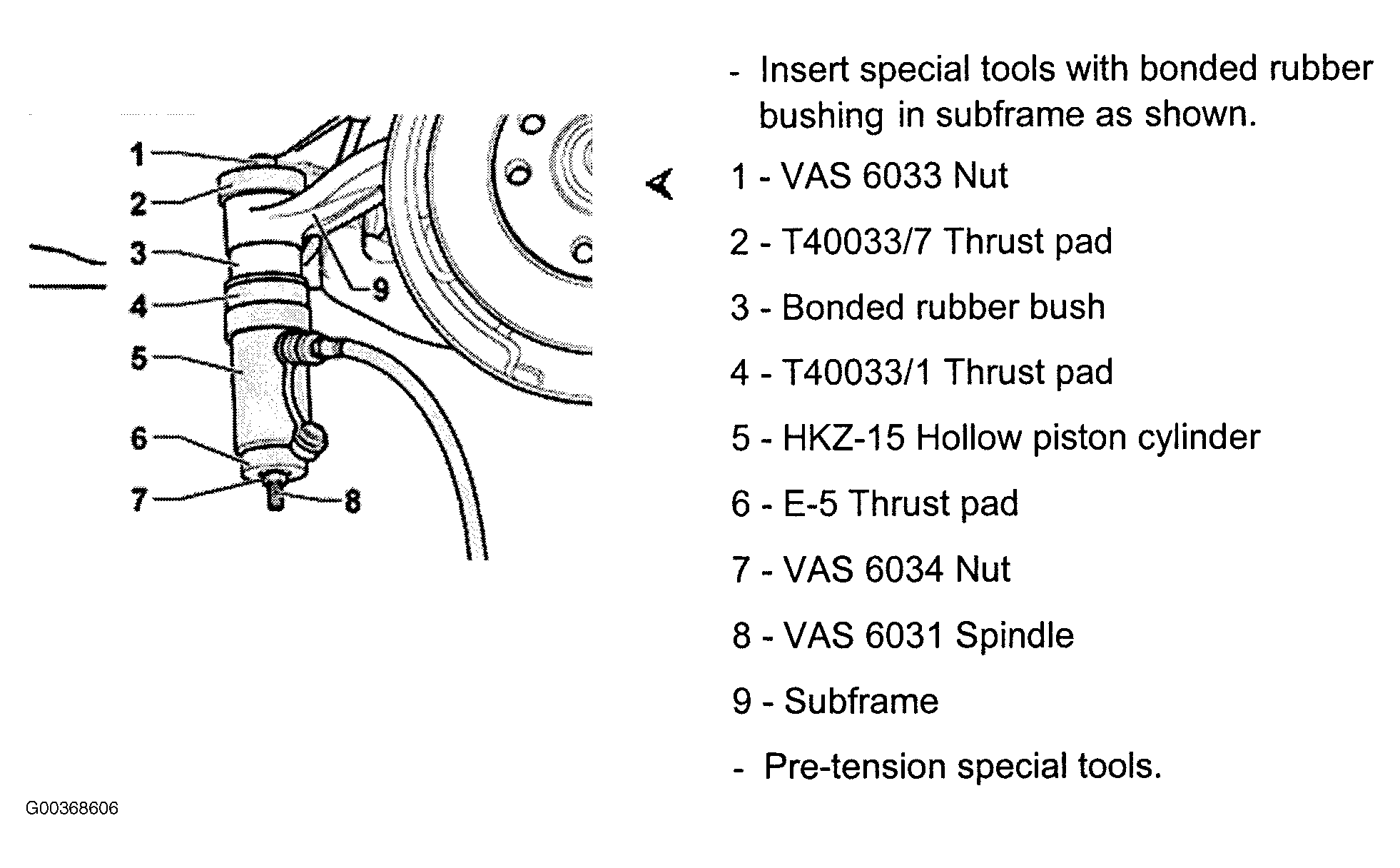

Install front subframe bushing. See Fig 2 . Take care not to cant bonded rubber bushing at start of installation, otherwise outer race could be damaged. When installing bonded rubber bushing with special tool V.A.G 1459 B replace with correct bushing.

Fig 2: Installing Front Subframe Bushing (Aluminum)
Courtesy of AUDI OF AMERICA, INC.
