Identification (Front & Rear Subframe Bushing)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Front and rear bushings are different. Front bushings are larger. Ensure bushings are installed in proper location. See Fig 1 .

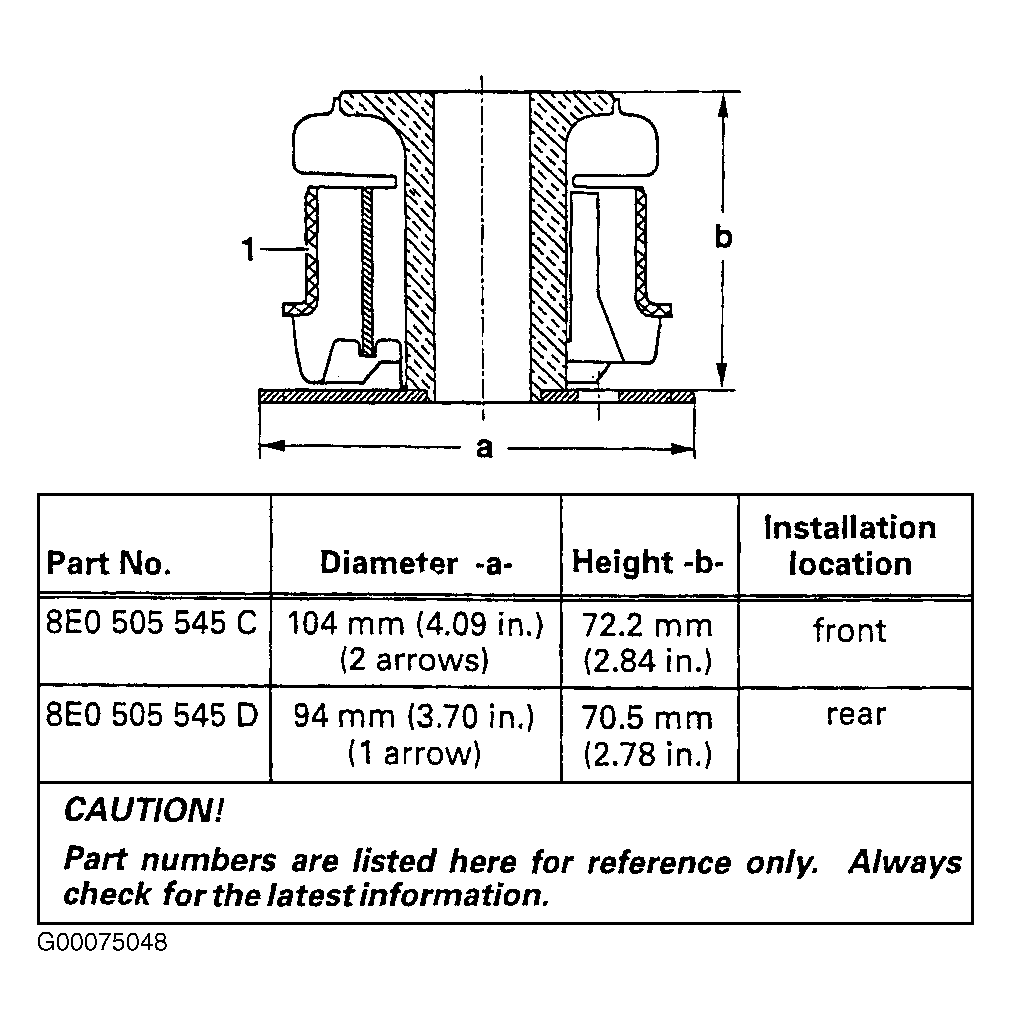

Fig 1: Identifying Front & Rear Subframe Bushings (Steel)

Courtesy of AUDI OF AMERICA, INC.
