Disassembly (Bushings)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Bonded rubber bushing can only be removed and installed with axle beam lowered. Aside from stabilizer bar, no other parts have to be removed from axle beam.

CAUTION: Mark installation position of bonded rubber bushing on axle beam before removal. In order that new bonded rubber bushings can be reinstalled in the correct position, installation position of defective bonded rubber bushings must be marked before they are pulled out.

Pry aluminum washer from bushing. Mark location of semicircular cutout in bushing on rear subframe. See Fig 1 .

Fig 1: Marking Position Of Subframe Bushing Cut-Out (Steel)
Courtesy of AUDI OF AMERICA, INC.
Using appropriate tools, pull out bushing. See Fig 2 .

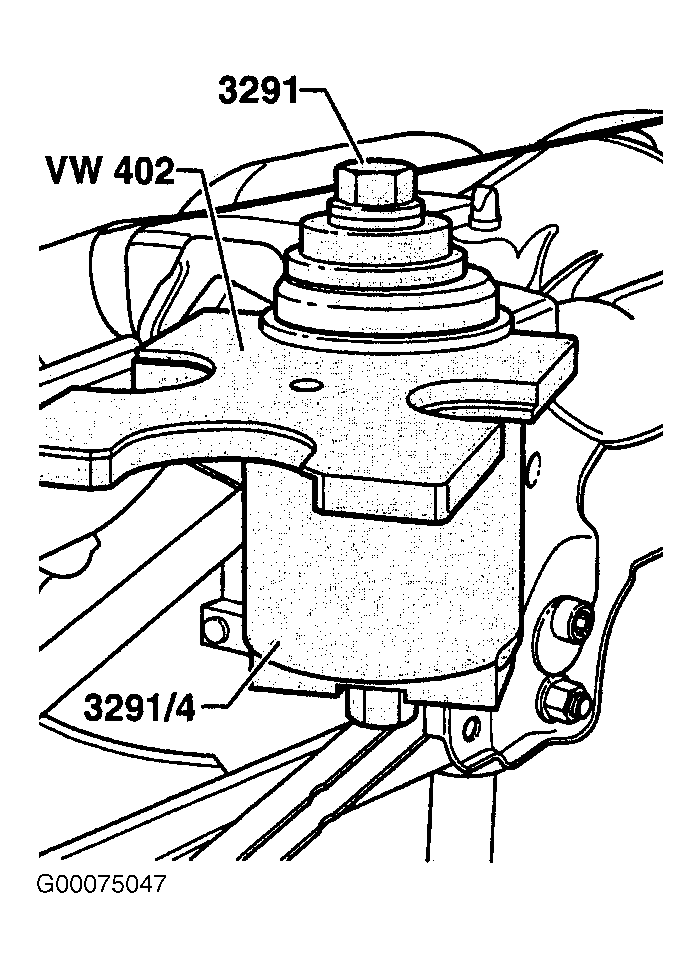

Fig 2: Removing Subframe Bushing (Steel)

Courtesy of AUDI OF AMERICA, INC.
