Assembly (Bushings)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Apply Installation Sliding Oil (G 294 421 A1) to new bushing.
Assemble new bushing and tool on subframe. Bonded rubber bushing must be inserted so that recess (arrow) faces marking (1). See Fig 1 . Eccentric hole (B) in bonded rubber bushing must point in direction of travel (arrow A).

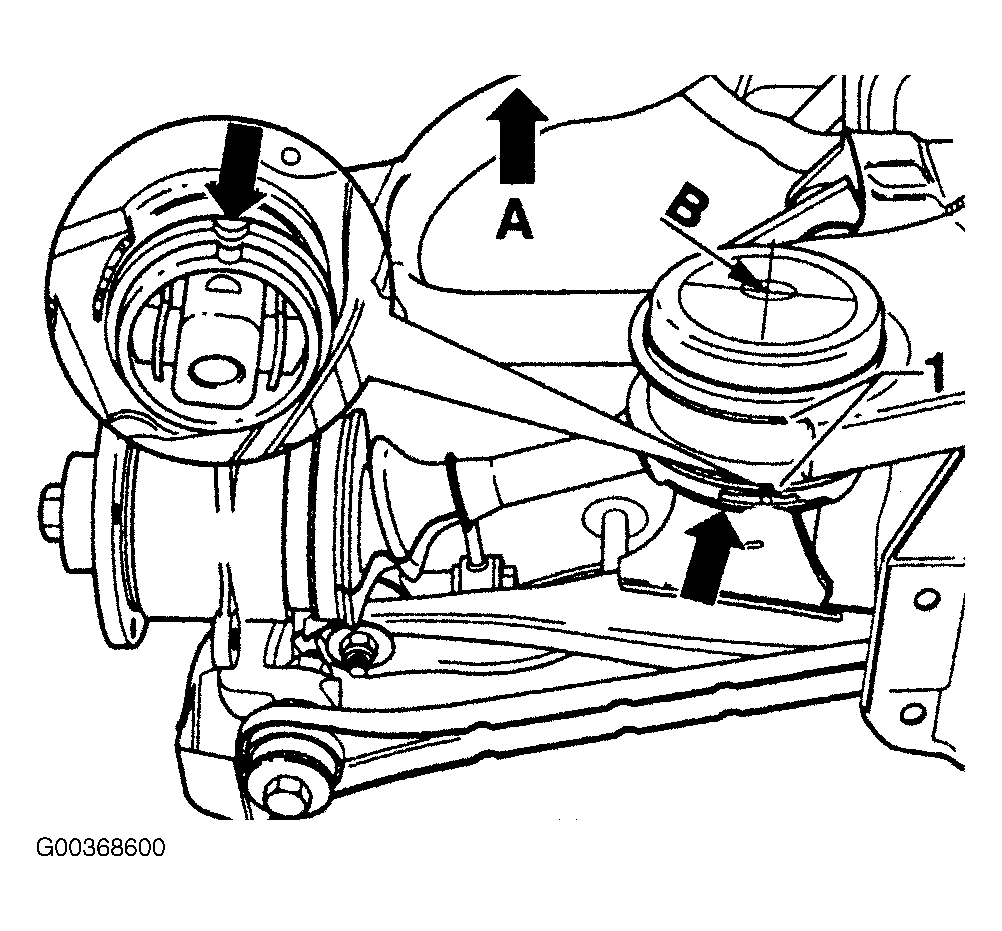

Fig 1: Positioning New Subframe Bushing (Steel)
Courtesy of AUDI OF AMERICA, INC.
Now attach bonded rubber bushing and special tools. See Fig 2 .

Fig 2: Installing Subframe Bushing (Steel)
Courtesy of AUDI OF AMERICA, INC.

CAUTION: Make sure that bonded rubber bushing does not tilt while it is being pulled in, otherwise outer ring could be damaged!

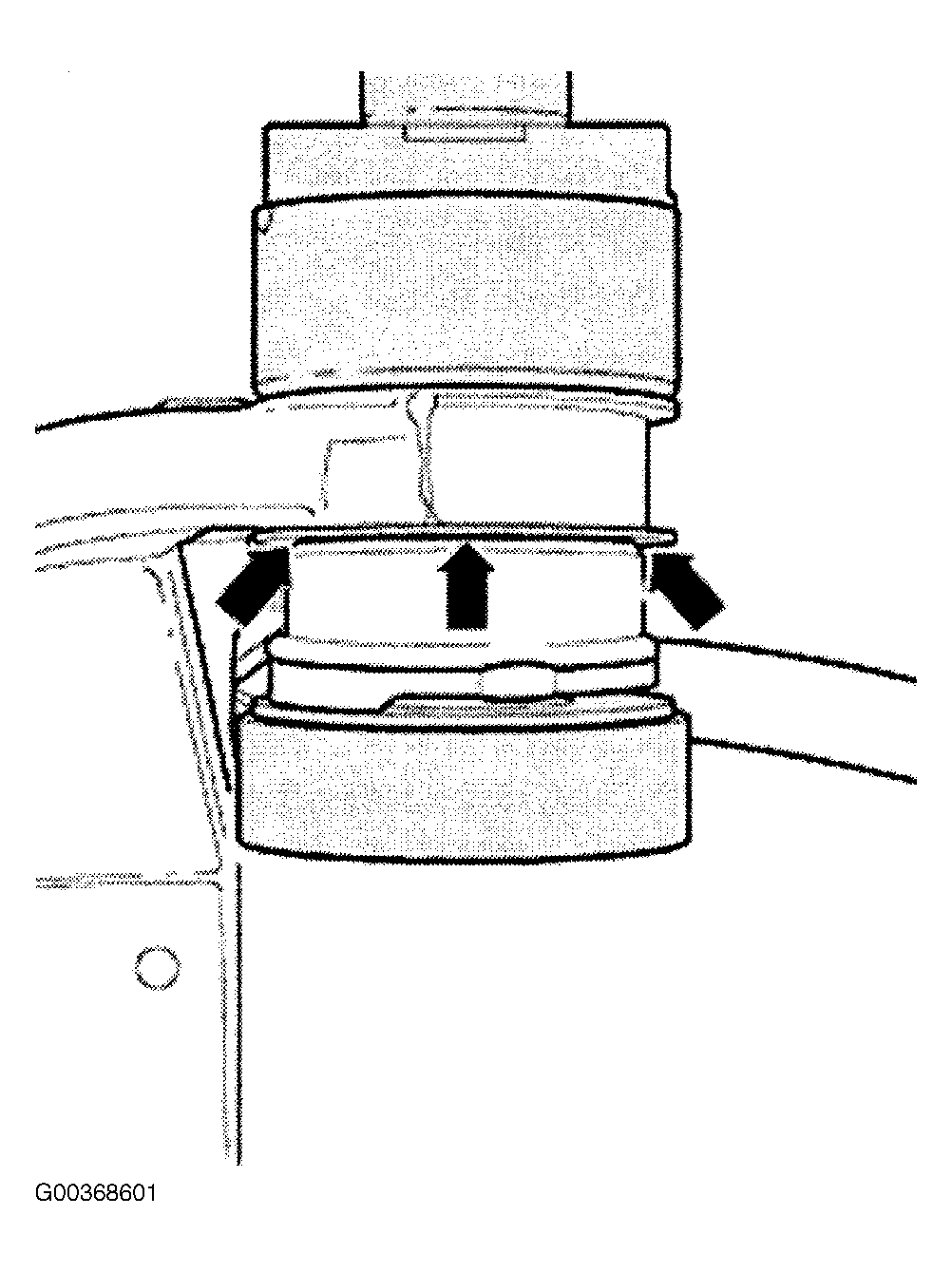

Fig 3: Pulling In Bonded Rubber Bushing (Steel)

Courtesy of AUDI OF AMERICA, INC.

Pull in bonded rubber bushing until chamfer (arrows) is in front of hole for axle body. See Fig 3 . Now check whether chamfer of outer ring makes uniform contact. Correct installation position again, if necessary. Now, slowly pull the bonded rubber bushing completely in. Have helper align bushing and tool when installing.
