Transverse Measurements
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

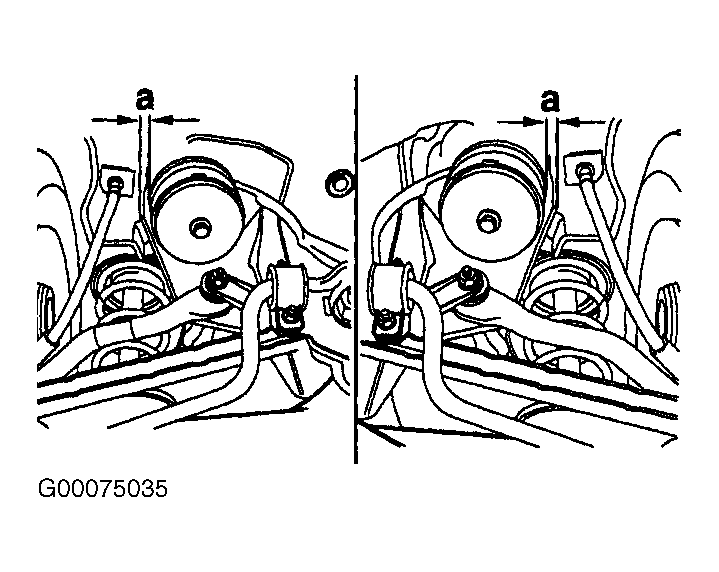

Check gap at each side. See Fig 1 . Ensure gaps are equal. If gaps are not equal, loosen subframe bolts. Using pry bar, press subframe right or left until gaps are equal. When gaps are equal, tighten subframe bolts to specification. See TORQUE SPECIFICATIONS . Test drive vehicle. After test drive, recheck subframe position, if steering wheel is off center wheel alignment will be necessary. See PROCEDURES & SPECIFICATIONS article in WHEEL ALIGNMENT.
