Control module for lock cylinder heater, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

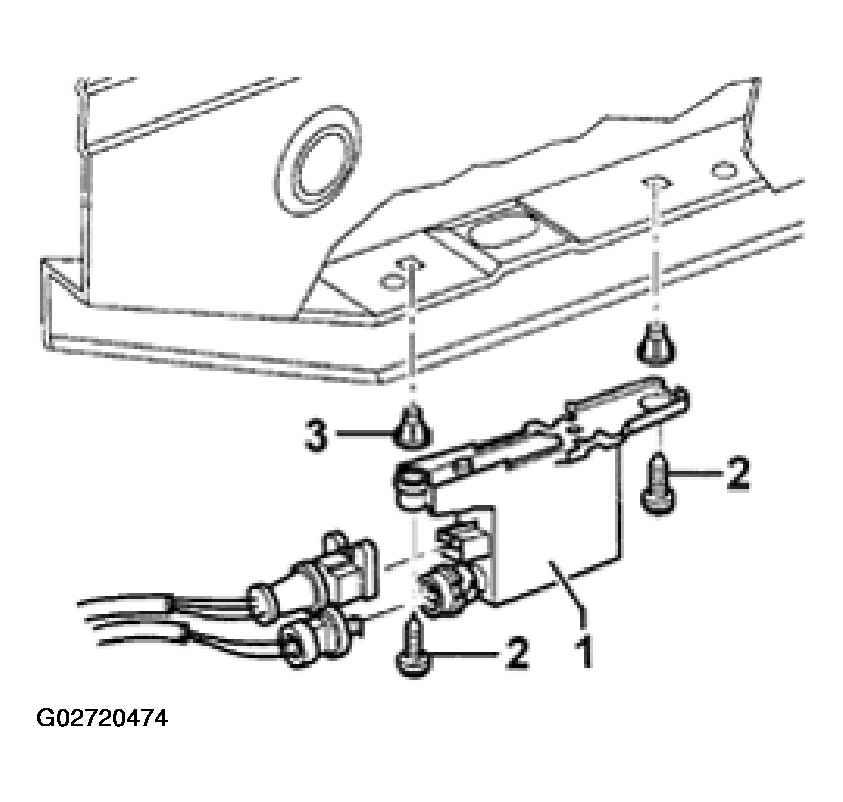

The control module for lock cylinder heater is located at upper side-member in drivers door.
- Remove driver-side door trim.
See FRONT DOOR TRIM, REMOVING AND INSTALLING .
- Unscrew bolts -2- from nuts -3-.
- Disconnect connector and remove control module -1-.
