Switch for glove compartment lamp, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove glove compartment:

See GLOVE BOX, REMOVING AND INSTALLING .

Disconnect harness connector -1- and remove cable shoes -2-.
Slide switch -3- out of mount in direction of arrow.

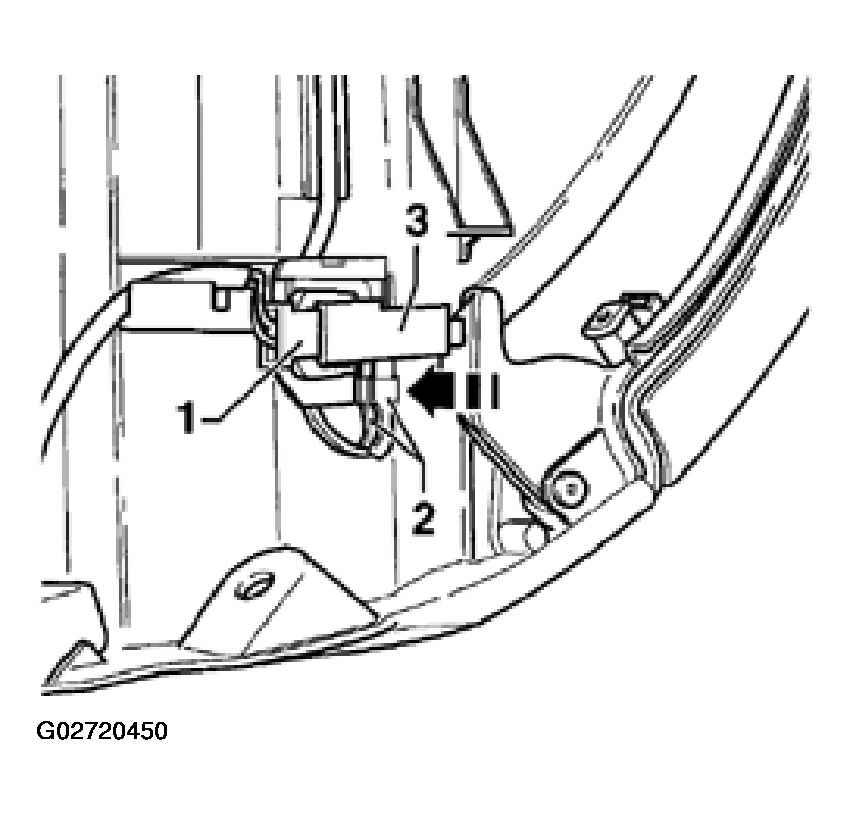

Fig 1: Removing Glove Compartment Lamp Out Of Mount

Courtesy of AUDI OF AMERICA, INC.
