Switch for front heated seats, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove A/C Control Head -E87-:

See A/C CONTROL HEAD -E87-, REMOVING AND INSTALLING .

Push back lugs -A- and pull switch -B- out of control head toward rear.

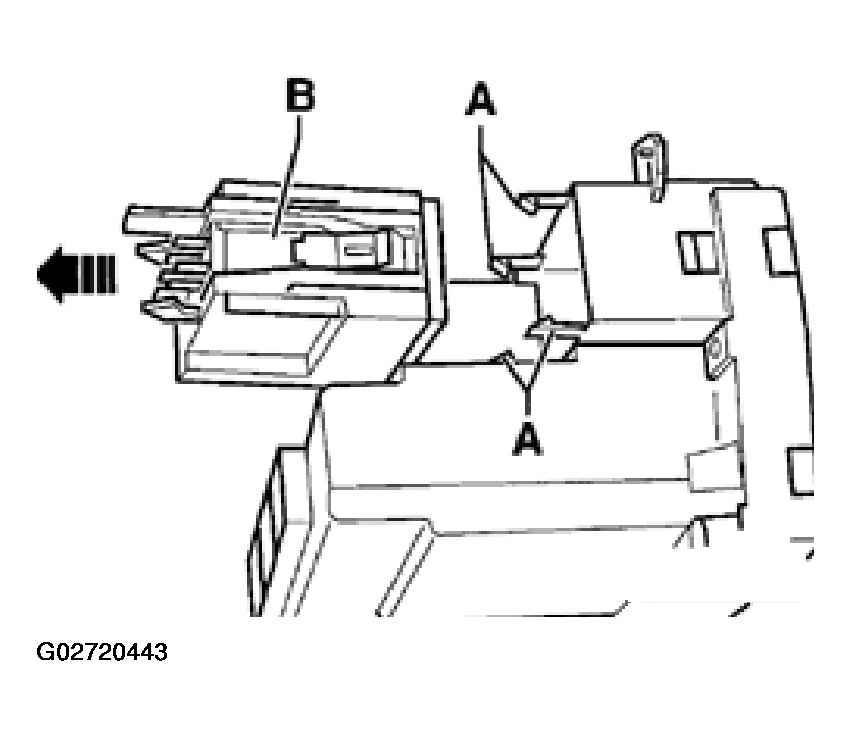

Fig 1: Pushing Back Lugs & Pulling Front Heated Seats Switch Out Of Control Head

Courtesy of AUDI OF AMERICA, INC.
