Switch for driver side window regulator, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

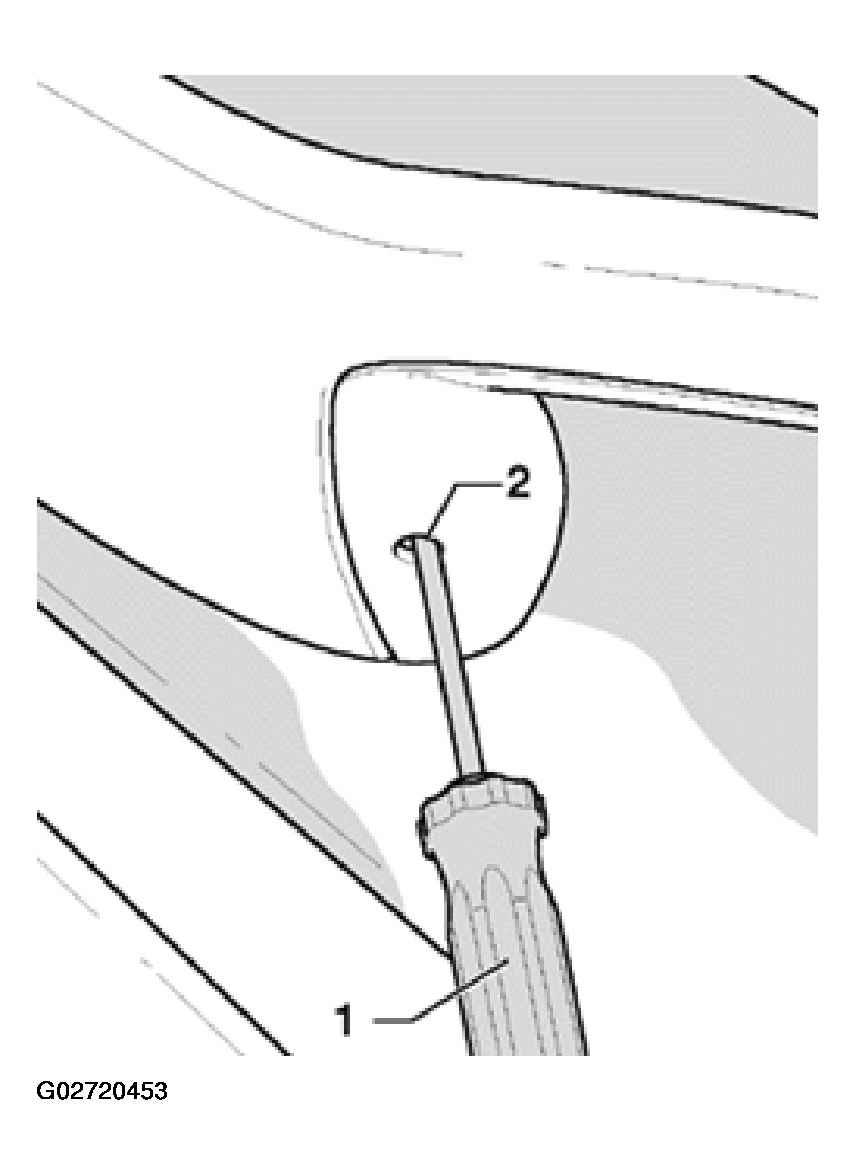

Insert flat screwdriver -1- into bore -2- of grip piece.

Fig 1: Inserting Flat Screwdriver Into Bore

Courtesy of AUDI OF AMERICA, INC.

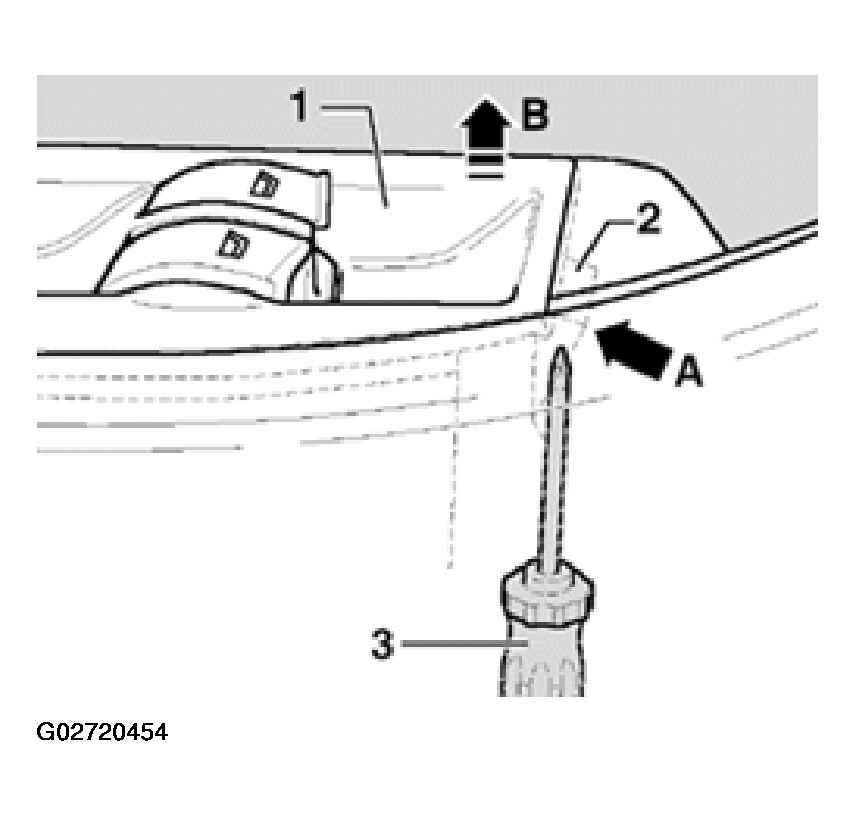

Using screwdriver -3-, press retaining tab -2- in direction of arrow -A-.
Remove window regulator switch -1- in direction of arrow -B-.

Fig 2: Pressing Retaining Tab Using Screwdriver & Removing Driver Side Window Regulator Switch

Courtesy of AUDI OF AMERICA, INC.

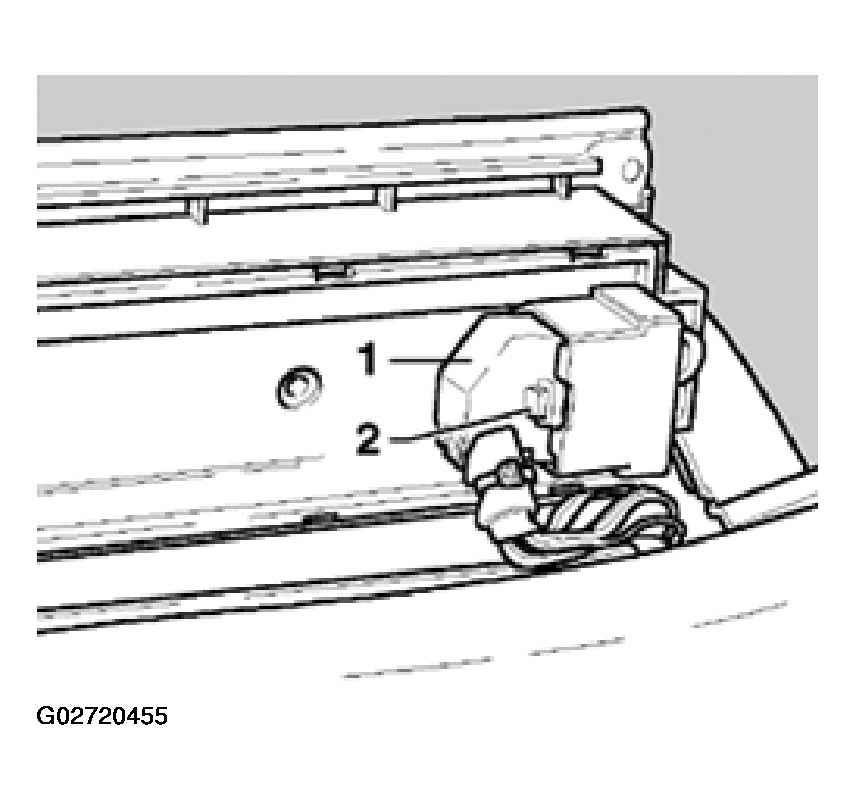

Press locking lugs -2- and disconnect connector -1-.

Fig 3: Pressing Locking Lugs & Disconnect Connector For Driver Side Window Regulator Switch

Courtesy of AUDI OF AMERICA, INC.
