Light switch, removing and installing: Installing
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
Installation is reverse of removal, noting the following:

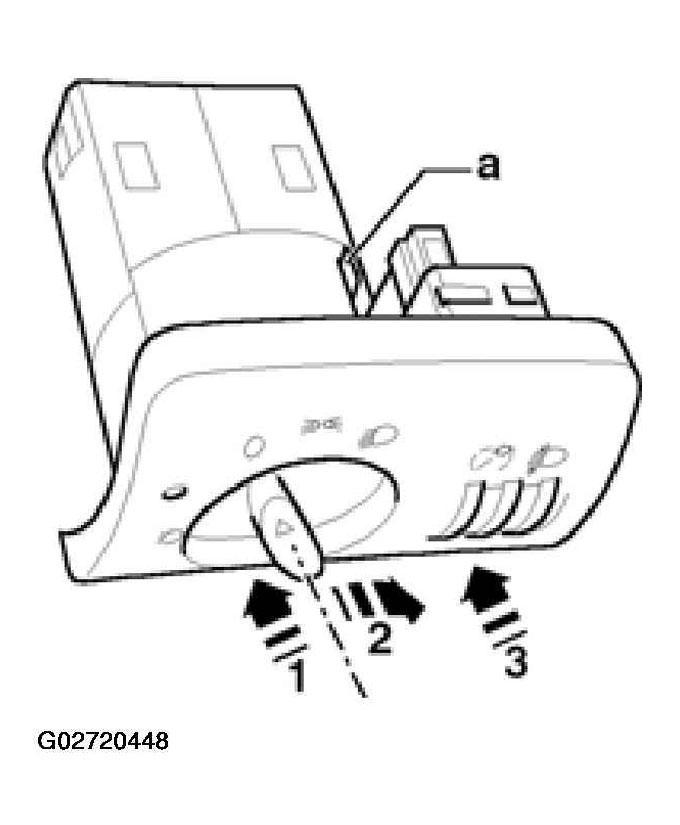

- Press light switch in direction of arrow -1- and turn to right simultaneously -2-, so that the locking mechanism -a- is countersunk.
- In this position, press light switch housing into mount in instrument panel -3- and engage.
