Adjuster for manual headlight vertical aim control (where applicable), removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove light switch. See LIGHT SWITCH, REMOVING AND INSTALLING .
Lift up adjuster for vertical headlight aim control -1- using a flat screwdriver and remove from light switch housing -2-.

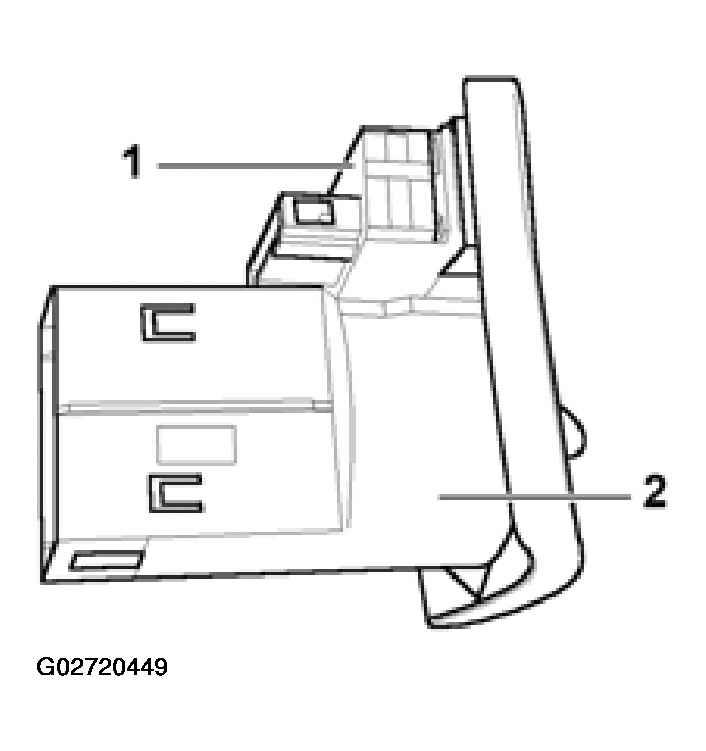

Fig 1: Removing Adjuster For Manual Headlight Vertical Aim Control

Courtesy of AUDI OF AMERICA, INC.
