Connector assignment for turn signal switch -D-
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

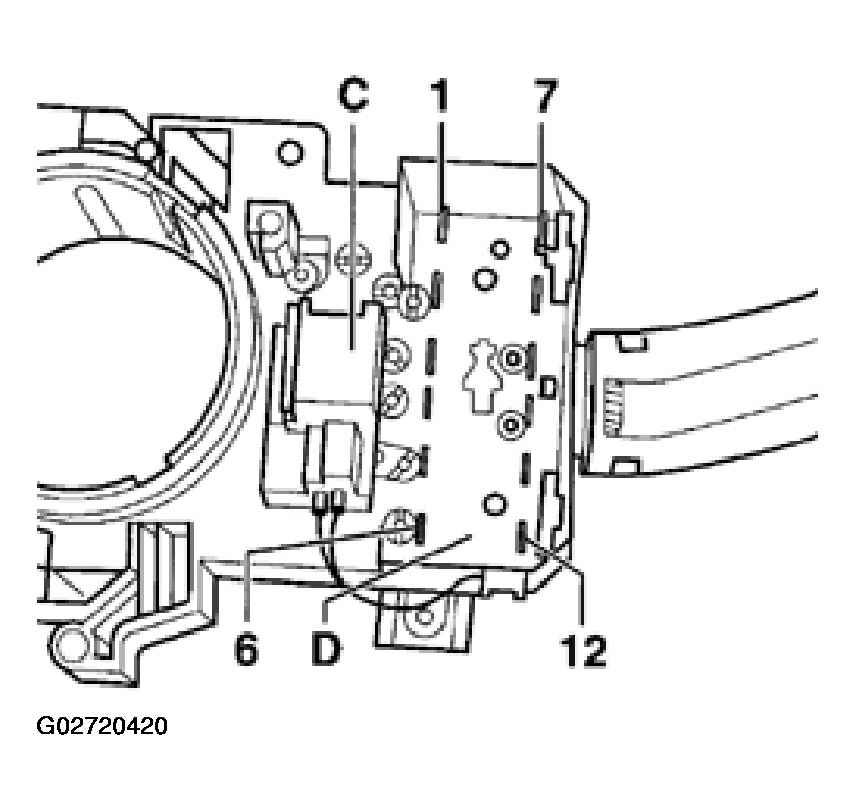

The following list refers to Fig 1
.
- Terminal 56
- Terminal 56b
- Terminal PL
- Terminal PR
- Terminal R
- Terminal 56a
- Terminal 30
- Terminal 30
- Terminal L
- Terminal P
- Terminal 49a
- Terminal 71
