Rear lights, assembly

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to Fig 1 .
  1. Gasket
    • Replace if damaged
  2. Turn signal bulb
    • 12V, 21 W
  3. Backup light bulb
    • 12V, 21 W
  4. Housing
    • Sedan version illustrated
    • Version for Avant with additional lateral cover
    • Engage lateral cover into both retaining clips and clip in lamp housing
  5. Bulb for brake light/backup light
    • 12V, 21/5 W
  6. Bulb carrier
  7. Body
  8. Spacing discs
  9. Nuts
    • 4x
    • 4 Nm

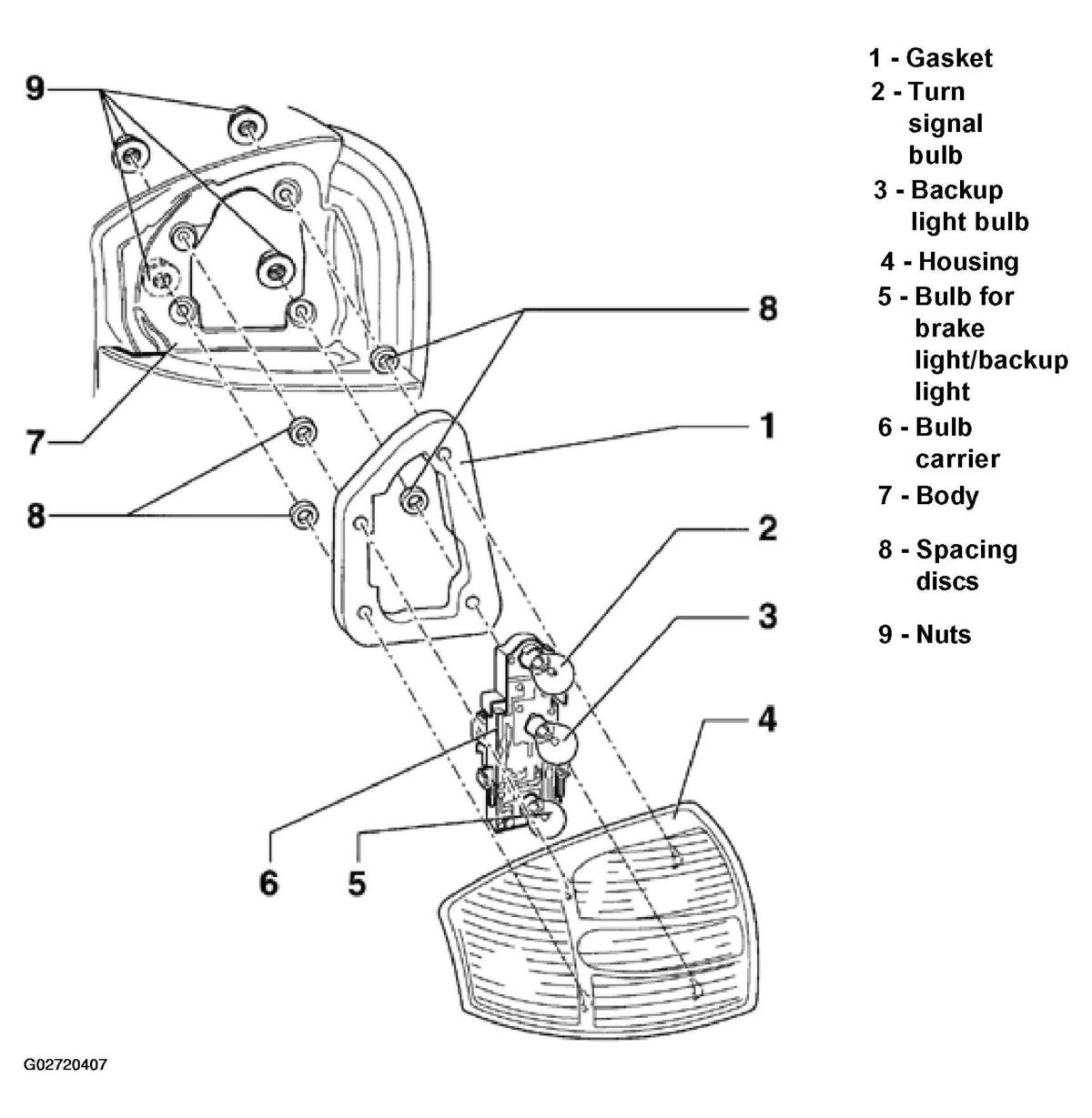

    10. Fig 1: Identifying Rear Light Assembly Components
    G02720407Courtesy of AUDI OF AMERICA, INC.
