Rear warning buzzer for parking -H15- (sedan), removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Installation location: Right rear below parcel shelf.

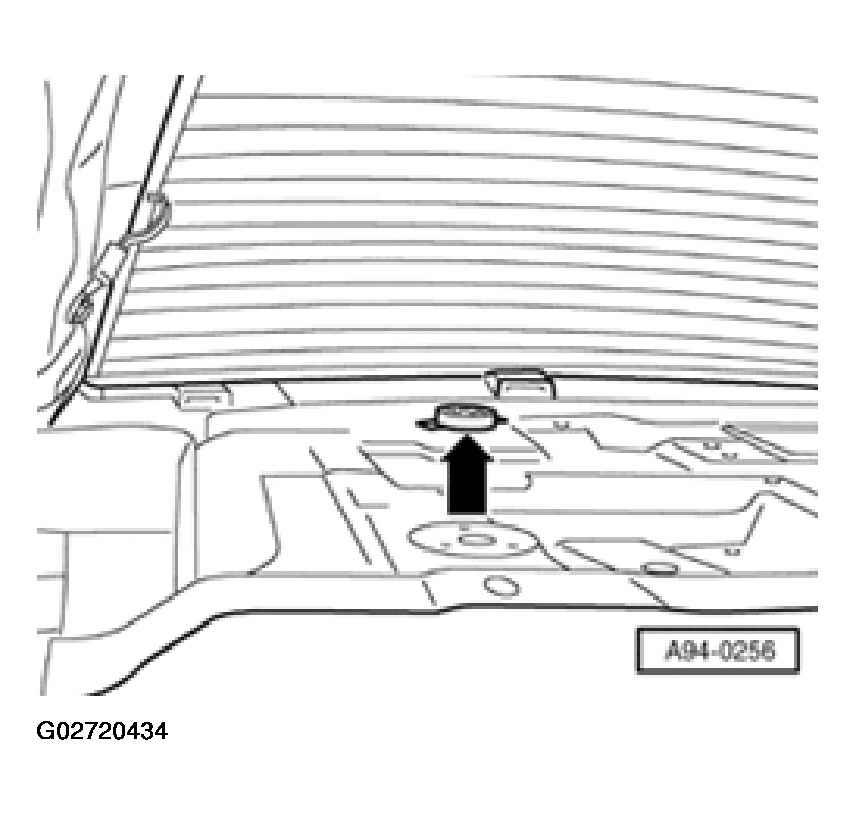

Fig 1: Location Of Rear Warning Buzzer For Parking (Sedan)

Courtesy of AUDI OF AMERICA, INC.

Remove hat shelf:
See REAR SHELF (FOLDING BACKREST), REMOVING AND INSTALLING or REAR SHELF (FIXED BACKREST), REMOVING AND INSTALLING .
Disconnect electrical connection.
Remove bolts.
Remove warning buzzer upward from luggage compartment separating wall.
