Parking aid sensors (rear), removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Installation location: In bumper (arrows).

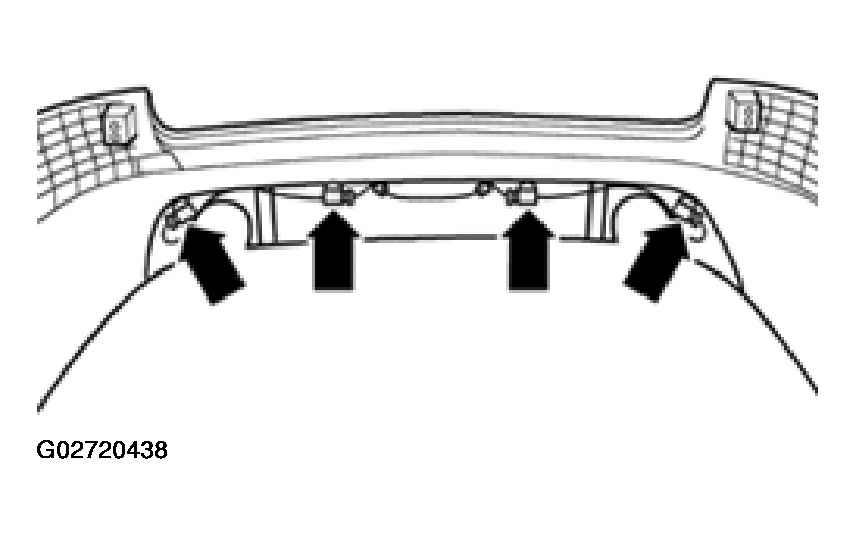

Fig 1: Location Of Parking Aid Sensors (Rear)

Courtesy of AUDI OF AMERICA, INC.

The following sensors can be removed without removing the rear bumper:
- All sensors for sedan and Avant with trailer hitch
- Inner sensors for allroad
Remove rear bumper for removing all other sensors:
See REAR BUMPER, REMOVING, INSTALLING AND ASSEMBLY OVERVIEW .
Disconnect electrical connection -1- at sensor.
Push both lugs to side (arrows).

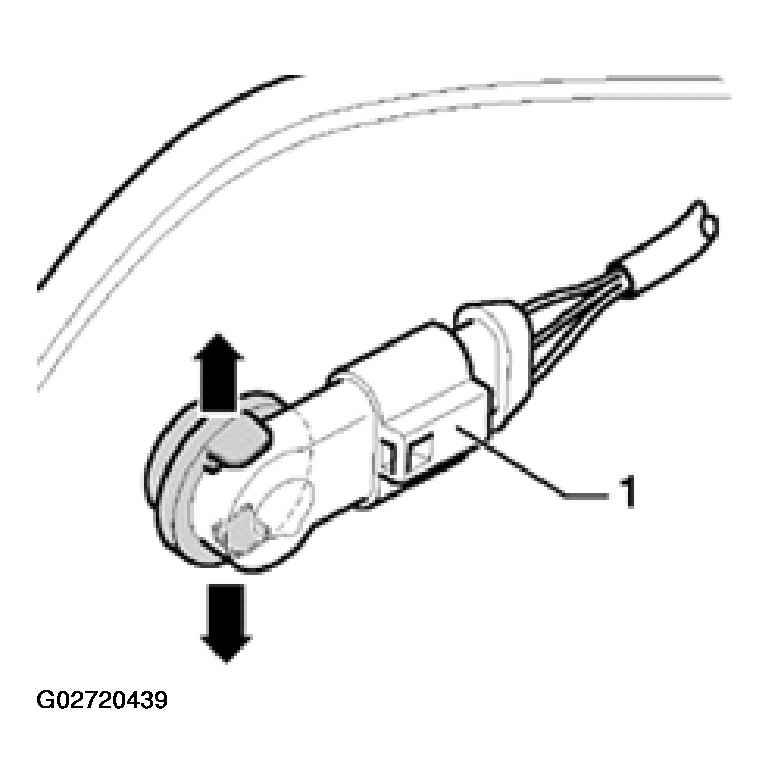

Fig 2: Removing Rear Parking Aid Sensor

Courtesy of AUDI OF AMERICA, INC.

Press sensor from outside toward the inside.
NOTE: To do so, a second mechanic may be required to push the sensor which has been removed from locking mechanism to the inside.
Remove sensor toward the inside.
