Parking aid - Parktronic(R), assembly: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

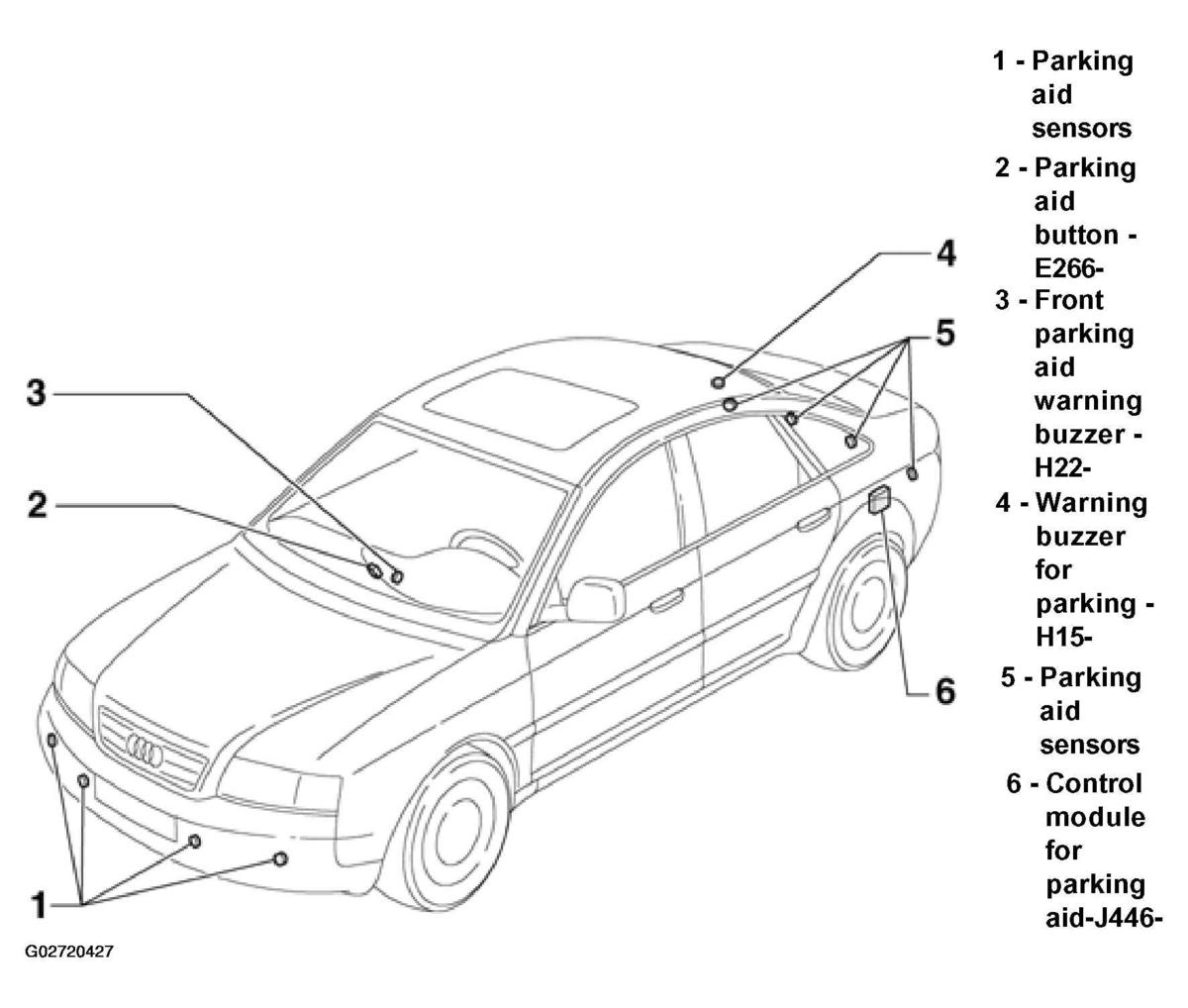

The following list refers to Fig 1
.
- Parking aid sensors
- In front bumper
- Only for 8-channel parking assistance
- Removing and installing. See PARKING AID SENSORS (FRONT WHERE APPLICABLE), REMOVING AND INSTALLING .
- Parking aid button -E266-
- Only for 8-channel parking assistance
- with parking aid switch illumination -L117-
- with integrated warning light for parking -K136-
- Installation location. See Component location of parking aid button -E266- for sedan and Avant and Component location of parking aid button -E266- for allroad .
- Front parking aid warning buzzer -H22-
- Only for 8-channel parking assistance
- in instrument panel behind the switch strip
- Removing and installing. See FRONT PARKING AID WARNING BUZZER -H22- (8-CHANNEL PARKING AID WHERE APPLICABLE), REMOVING AND INSTALLING .
- Warning buzzer for parking -H15-
- Installation position, sedan: Below rear parcel shelf
- Component locations, Avant: Behind the side trim in luggage compartment, left side
- Removing and installing. See REAR WARNING BUZZER FOR PARKING -H15- (SEDAN), REMOVING AND INSTALLING .
- Parking aid sensors
- In rear bumper
- Removing and installing. See PARKING AID SENSORS (REAR), REMOVING AND INSTALLING .
- Control module for parking aid -J446-
- Below left luggage compartment trim
- Removing and installing. See CONTROL MODULE FOR PARKING AID -J446-, REMOVING AND INSTALLING .
