Front parking aid warning buzzer -H22- (8-channel parking aid where applicable), removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

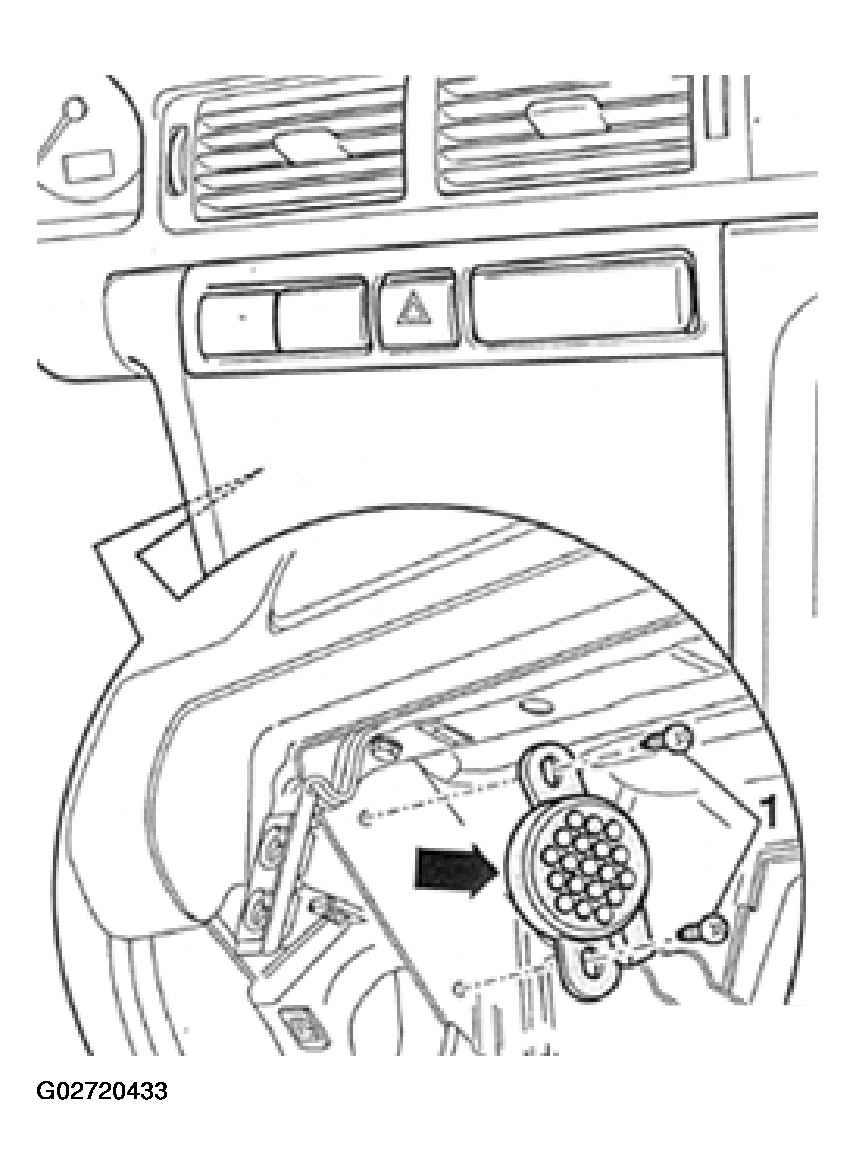

Front parking aid warning buzzer (arrow) is located behind the switch strip in center of instrument panel.

Fig 1: Locating Front Parking Aid Warning Buzzer

Courtesy of AUDI OF AMERICA, INC.

Remove center portion of instrument panel:
See CENTER SECTION OF INSTRUMENT PANEL (VEHICLES WITH "CHORUS" AND "CONCERT" RADIOS), REMOVING or CENTER PART OF INSTRUMENT PANEL (VEHICLES WITH "SYMPHONY" RADIOS AND "RADIO-NAVIGATION SYSTEM PLUS"), REMOVING .
Disconnect electrical connection.
Remove bolts -1-.
Remove warning buzzer (arrow).
