Ignition/starter switch, terminal assignments

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

15 - Terminal 15

30 - Terminal 30

50 - Terminal 50

50b - Terminal 50b

75 - Terminal 75

86s - Terminal 86s

P - Park position

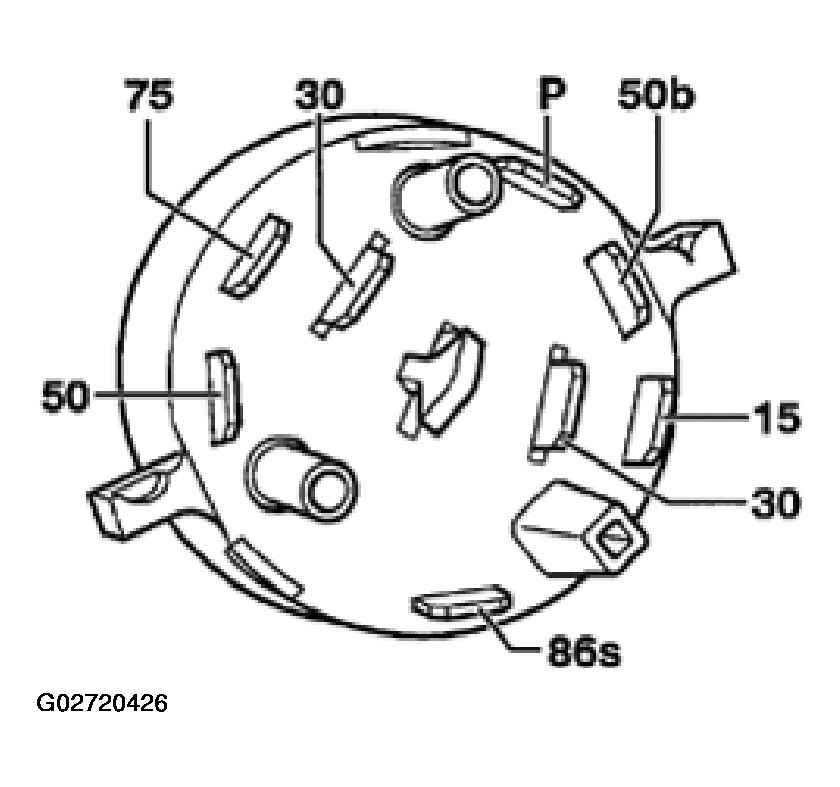

Fig 1: Identifying Ignition/Starter Switch Terminal Assignments

Courtesy of AUDI OF AMERICA, INC.
