Repair kit for headlight housing, installing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Headlight mounting tabs that have broken off can be replaced by installing the repair kit. Complete replacement of the headlight is therefore not necessary.
Different repair sets are available for the left and the right headlight:

Remove headlight with broken mounting tab. See HEADLIGHTS, REMOVING AND INSTALLING .
Remove remains of the broken mounting tab -1- at location marked with the arrow.
Place mounting tab -2- of repair set onto the edge (arrow) of the headlight housing and secure the tab with two screws -3- from rear.

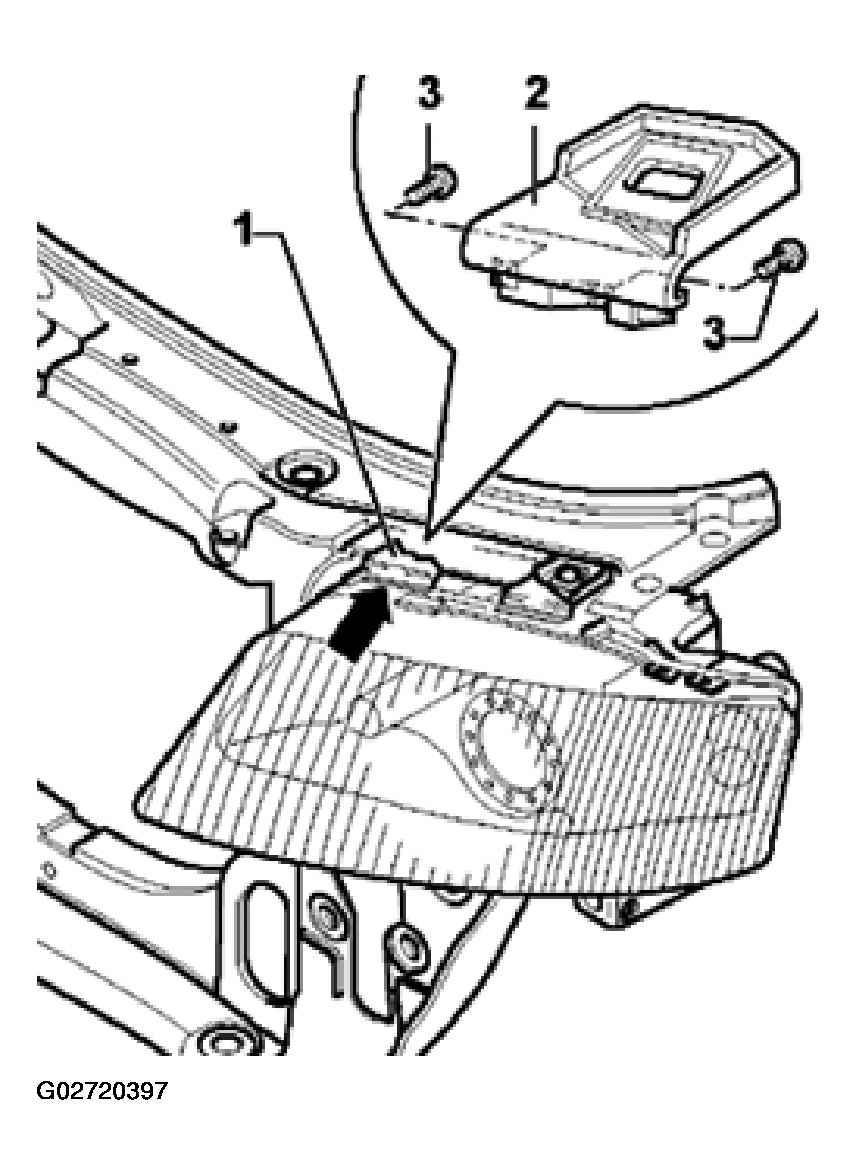

Fig 1: Installing Repair Kit For Headlight Housing

Courtesy of AUDI OF AMERICA, INC.
