Headlights, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove front bumper:
See FRONT BUMPER, REMOVING, INSTALLING AND ASSEMBLY OVERVIEW .
Remove both Torx bolts (T30) -1-.

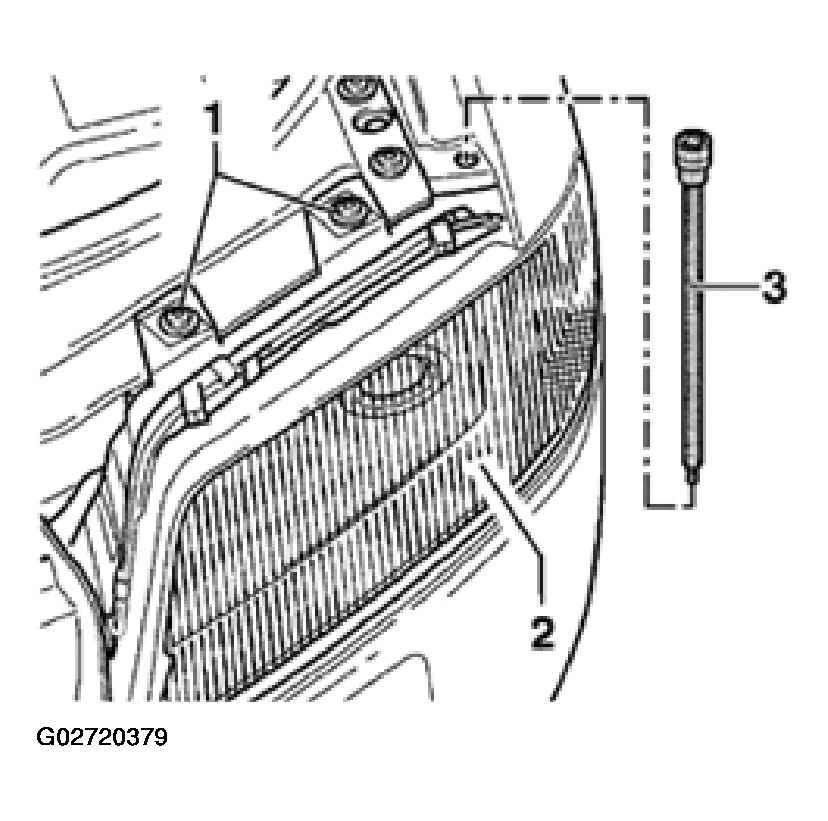

Fig 1: Removing Torx Bolts (T30)

Courtesy of AUDI OF AMERICA, INC.

Remove interior Torx bolt (T30) using 1/4"-Torx- bit insert and extension.

NOTE: If necessary, use magnet to remove bolt.

Disconnect multi-function harness connectors for headlights.
Turn headlights -2- toward center of vehicle and remove from chassis toward front.
