Headlights with High Intensity Gas Discharge (HID) lamps and automatic vertical headlight beam adjustment, assembly
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After performing any repairs or service that could affect headlight aim, check/adjust aim.
NOTE:

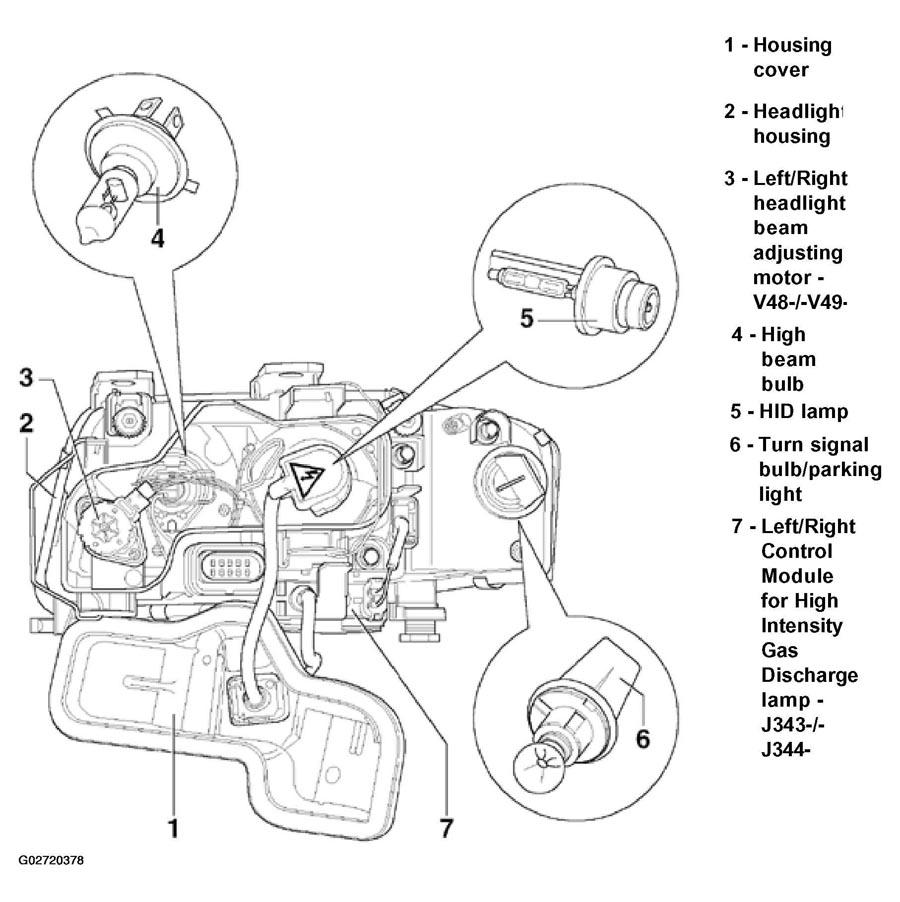

The following list refers to Fig 1
.
- Housing cover
- Headlight housing
- Left/Right headlight beam adjusting motor -V48-/-V49-
- Removing and installing. See HEADLIGHT BEAM ADJUSTING MOTORS -V48-/-V49-, REMOVING AND INSTALLING .
- High beam bulb
- H1 -12 V, 55 W
- Replacing. See HIGH BEAM BULB, REPLACING .
- HID lamp
- 12V, 35 W
- Replacing. See HID BULB (LOW BEAM), REPLACING .
- Turn signal bulb/parking light
- 12 V, 21/5 W
- orange
- Replacing. See Turn signal/parking light bulb, replacing .
- Left/Right Control Module for High Intensity Gas Discharge lamp -J343-/-J344-
- Removing and installing. See CONTROL MODULES FOR HIGH INTENSITY GAS DISCHARGE LAMPS -J343-/-J344-, REMOVING AND INSTALLING .
