Vehicles with manual and automatic static vertical headlight aim control (where applicable)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical connection -2-.
Disengage retaining tab -1-: At right headlight by turning clockwise; at left headlight by turning counterclockwise.

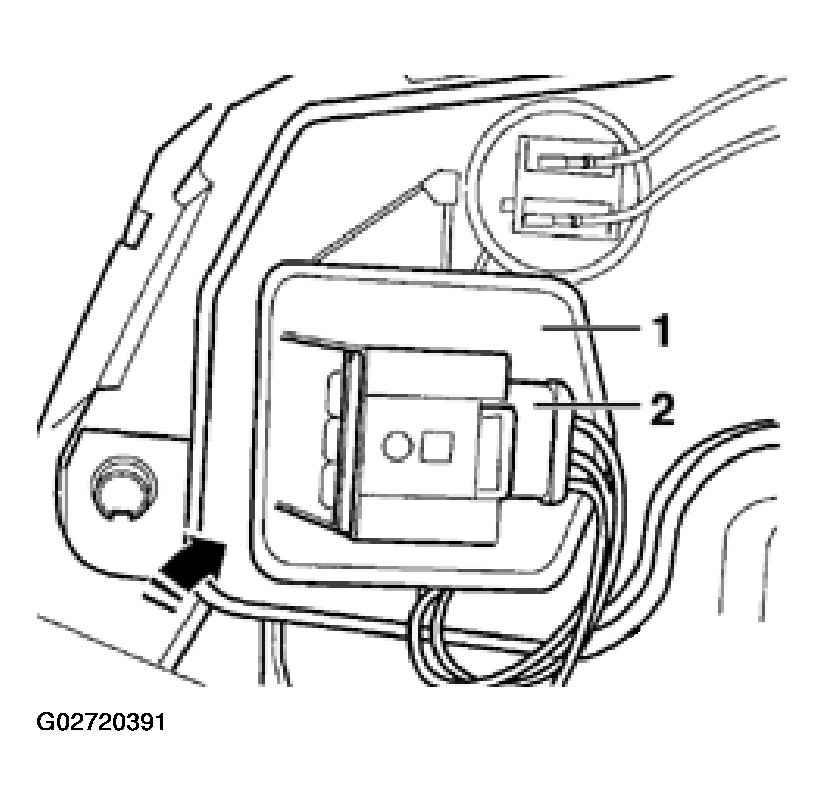

Fig 1: Disconnecting Headlight Electrical Connection & Disengaging Retaining Tab - Vehicles With Manual And Automatic Static Vertical Headlight Aim Control

Courtesy of AUDI OF AMERICA, INC.

Pull ball head of adjustment axle out from ball head mount: At right headlight by pushing laterally to left; at left headlight by pushing laterally to right.
