Vehicle with automatic vertical headlight aim control

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical connection -1-.
Remove bolts (arrows).
Pull ball head -2- of adjustment axle laterally out from ball head mount.
Remove headlight beam adjusting motor -3-.

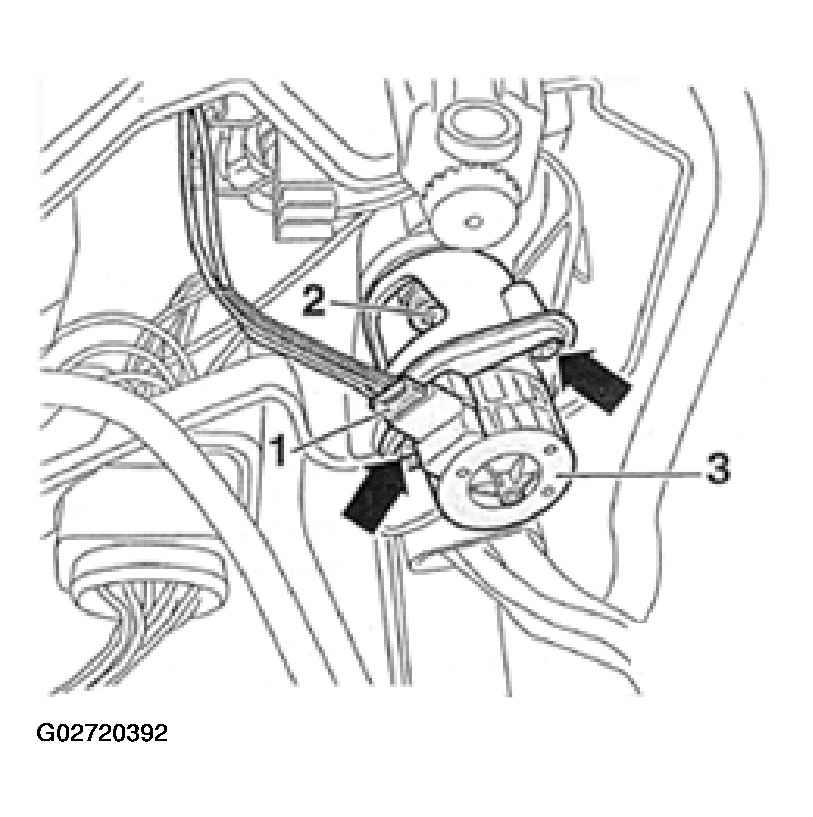

Fig 1: Removing Headlight Beam Adjusting Motor - Vehicle With Automatic Vertical Headlight Aim Control

Courtesy of AUDI OF AMERICA, INC.
