Control Modules for High Intensity Gas Discharge Lamps -J343-/-J344-, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove both bolts -1- at air intake channel and then pull up at rear part of intake channel -2- (only for right headlight).

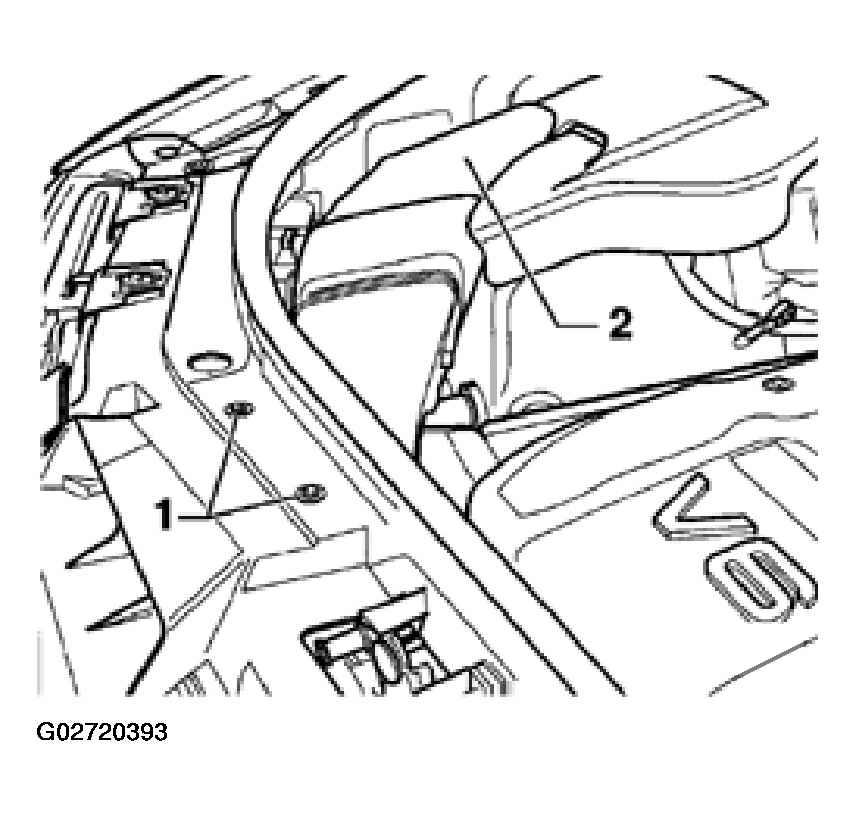

Fig 1: Removing Bolts & Pulling Up Rear Part Of Intake Channel

Courtesy of AUDI OF AMERICA, INC.

Remove housing cover from headlight housing.
Disconnect connector -1- at HID headlight by turning counterclockwise.

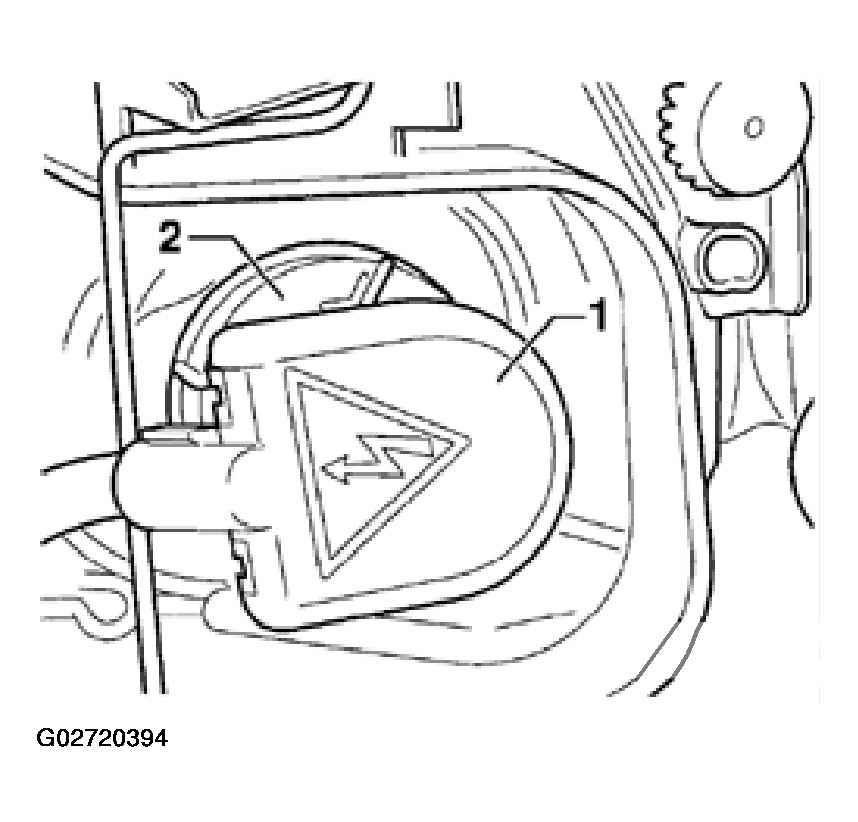

Fig 2: Disconnecting Connector At HID Headlight

Courtesy of AUDI OF AMERICA, INC.

Remove guide -1- in housing cover by pressing locking lugs (arrow).

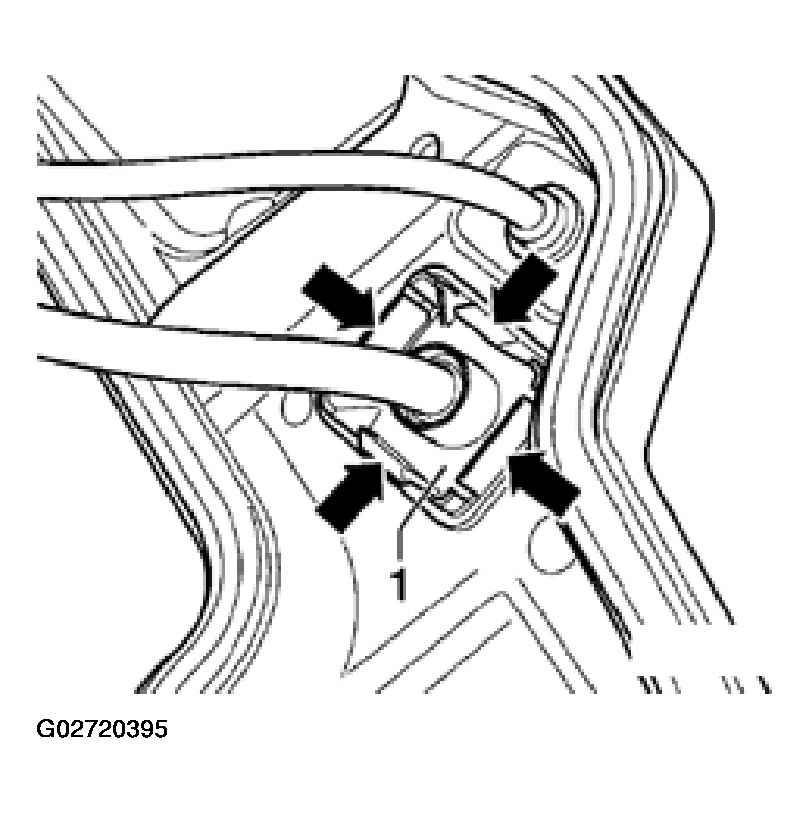

Fig 3: Removing Guide In Housing Cover By Pressing Locking Lugs

Courtesy of AUDI OF AMERICA, INC.

Harness connector of HID headlights can then be guided through the cover.
Disconnect connector -1-.
Remove retaining plate -2- by loosening screw (arrow).

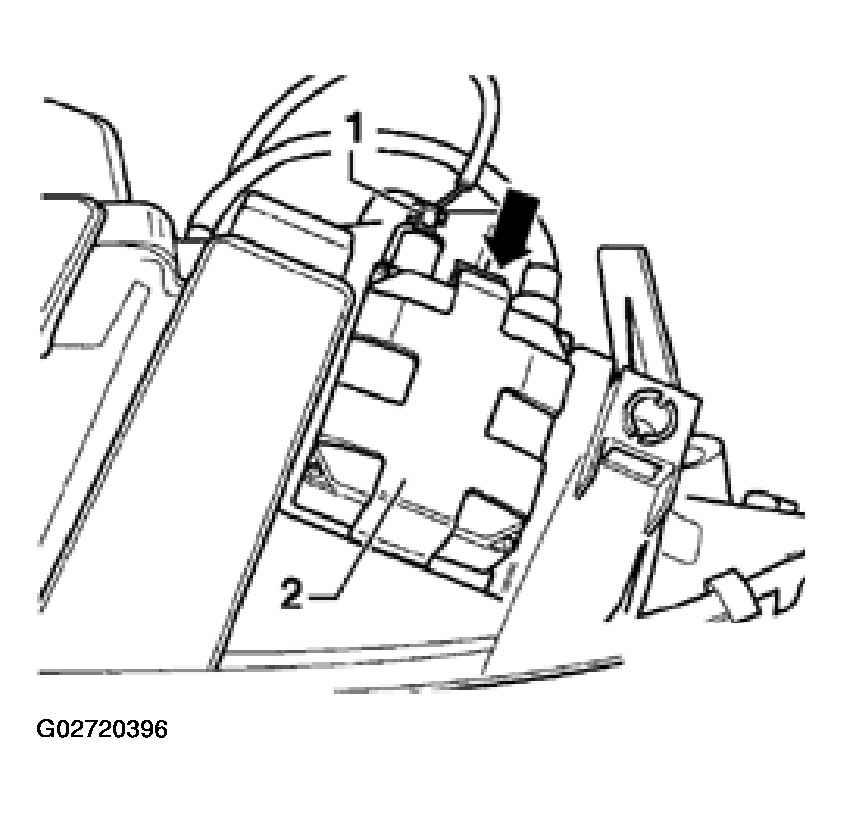

Fig 4: Disconnecting Connector & Removing Retaining Plate By Loosening Screw

Courtesy of AUDI OF AMERICA, INC.

Remove control module from headlight housing.
